GEAR SHIFT DRUM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

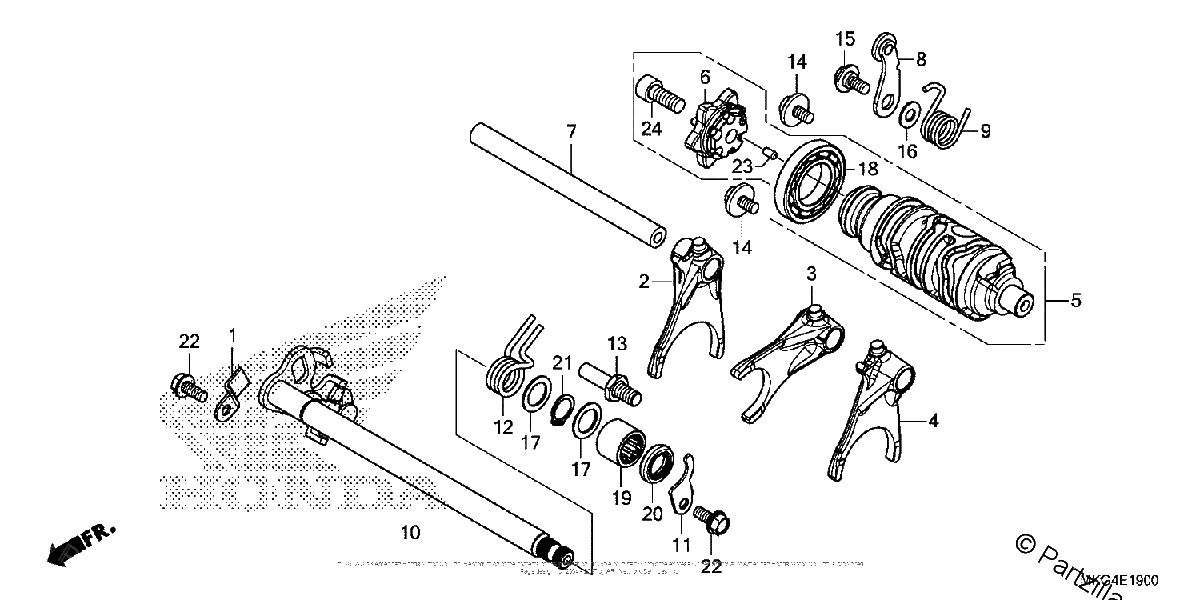

Diagrama de GEAR SHIFT DRUM

Repuestos

#1
14623-MV1-000
PLATE, TENSIONER SETTING
$5.91¢2 956
1
#2
24211-MGZ-J00
FORK, Right GEARSHIFT
$31.95¢15 975
1
#3
24212-MGZ-J00
FORK, CENTER GEARSHIFT
$31.58¢15 788
1
#4
24213-MGZ-J00
FORK, L GEARSHIFT
$31.51¢15 756
1
#5
24310-MKG-A00
DRUM, GEARSHIFT
$103.61¢51 806
1
#6
24315-MJE-D00
CENTER, SHIFT DRUM
$53.01¢26 506
1
#7
24321-MAS-000
SHAFT, GEARSHIFT FORK
$28.77¢14 388
1
#8
24430-MGZ-J00
STOPPER, GEARSHIFT DRUM
$10.61¢5 306
1
#9
24435-MJE-D00
SPRING, SHIFT DRUM STOPPER
$2.25¢1 125
1
#10
24610-MGZ-J00
SPINDLE, GEARSHIFT
$54.74¢27 369
1
#11
24612-MAL-600
PLATE, SPINDLE
$12.56¢6 281
1
#12
24651-MAS-E00
SPRING, SHIFT RETURN
$7.14¢3 569
1
#13
24652-MGZ-J00
PIN, SHIFT RETURN SPRING
$2.15¢1 075
1
#14
90021-MGZ-J00
BOLT-WASHER (6X12)
$5.29¢2 644
1
#15
90023-MGZ-J00
PIVOT, SHIFT DRUM STOPPER ARM
$0.76¢381
1
#16
90417-360-000
WASHER, DRUM STOPPER
$2.24¢1 119
1
#17
90451-155-000
WASHER (14MM)
$4.59¢2 294
1
#18
91007-MGS-D21
BEARING, RADIAL BALL (25X47X8)
$22.27¢11 138
1
#18
91007-MGS-D31
BEARING, RADIAL BALL (25X47X8)
$22.27¢11 138
1
#19
91106-MCF-003
BEARING, NEEDLE (14X22X16)
$14.57¢7 288
1
#20
91203-KSP-911
OIL SEAL (14X22X5) (ARAI)
$2.48¢1 238
1
#21
94510-14000
CIRCLIP, OUTER (14MM)
$1.31¢656
1
#22
95701-06014-00
BOLT, FLANGE (6X14)
$1.23¢613
1
#23
96220-40080
ROLLER (4X8)
$0.65¢325
1
#24
96600-08020-10
BOLT, SOCKET (8X20)
$2.75¢1 375
1
