HANDLE LEVER SWITCH CABLE MIRROR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

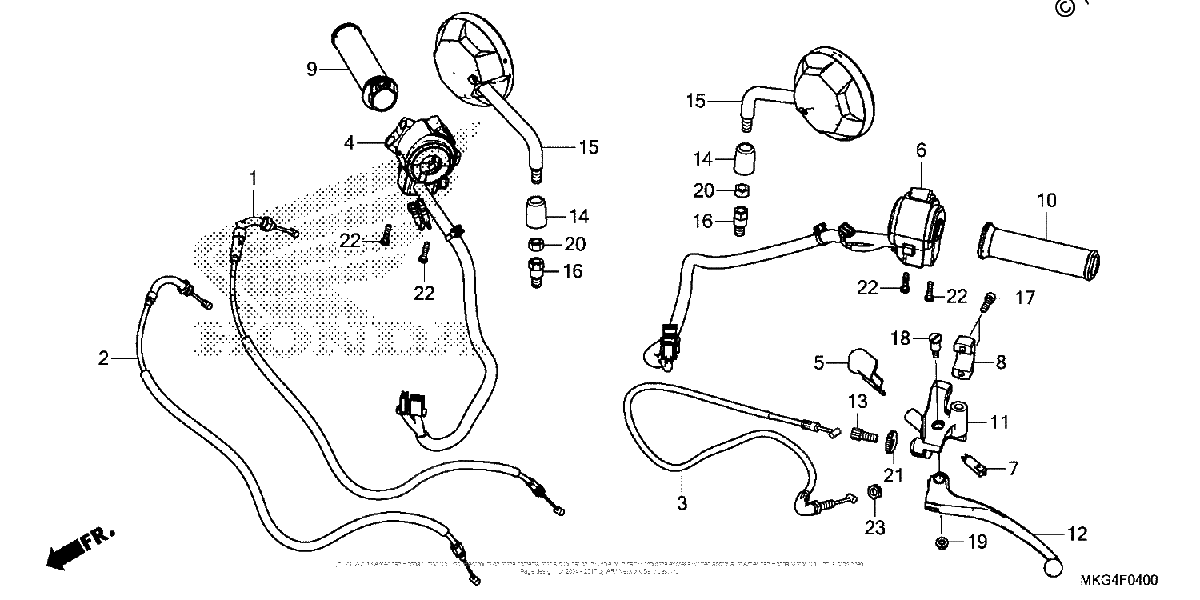

Diagrama de HANDLE LEVER SWITCH CABLE MIRROR

Repuestos

#1
17910-MKG-A01
CABLE A, THROTTLE (HI-LEX)
$13.34¢6 669
1
#001
17910-MKG-A01
CABLE A, THROTTLE (HI-LEX)
$13.34¢6 669
1
#002
17920-MKG-A01
CABLE B, THROTTLE (HI-LEX)
$12.58¢6 288
1
#2
17920-MKG-A01
CABLE B, THROTTLE (HI-LEX)
$12.58¢6 288
1
#003
22870-MKG-A01
CABLE, CLUTCH (HI-LEX)
$17.11¢8 556
1
#3
22870-MKG-A01
CABLE, CLUTCH (HI-LEX)
$17.11¢8 556
1
#4
35130-K87-A01
SWITCH Assembly., STARTER & ENGINESTOP & HAZARD
No Disponible
1
#004
35130-K87-A01
SWITCH Assembly., STARTER & ENGINESTOP & HAZARD
No Disponible
1
#004
35130-K87-A02
SW, ST STOP& HAZARD
$83.94¢41 969
1
#5
35152-MGZ-J00
COVER, CLUTCH SWITCH
$2.50¢1 250
1
#005
35152-MGZ-J00
COVER, CLUTCH SWITCH
$2.50¢1 250
1
#006
35200-K87-A02
SW, TURN SIGNAL
$85.53¢42 763
1
#006
35200-K87-A01
SWITCH Assembly., TURN SIGNAL (TOYO DENSO)
$85.53¢42 763
1
#6
35200-K87-A01
SWITCH Assembly., TURN SIGNAL (TOYO DENSO)
$85.53¢42 763
1
#7
35330-KYJ-901
SWITCH, Front LEVER
$8.01¢4 006
1
#007
35330-KYJ-901
SWITCH, Front LEVER
$8.01¢4 006
1
#8
45517-MAV-751
HOLDER, MASTER CYLINDER (NISSIN)
$24.05¢12 025
1
#008
45517-MAV-751
HOLDER, MASTER CYLINDER (NISSIN)
$24.05¢12 025
1
#009
53140-K87-A00
GRIP, THROTTLE
$13.31¢6 656
1
#9
53140-K87-A00
GRIP, THROTTLE
$13.31¢6 656
1
#10
53165-K87-A00
GRIP, L HANDLE
$5.13¢2 563
1
#010
53165-K87-A00
GRIP, L HANDLE
$5.13¢2 563
1
#011
53172-K87-A00
BRACKET, HANDLE LEVER
$35.05¢17 525
1
#11
53172-K87-A00
BRACKET, HANDLE LEVER
$35.05¢17 525
1
#12
53178-K87-A00
LEVER, L HANDLE
$28.38¢14 188
1
#012
53178-K87-A00
LEVER, L HANDLE
$28.38¢14 188
1
#13
53192-349-690
BOLT, CLUTCH WIRE ADJUSTING
$8.54¢4 269
1
#013
53192-349-690
BOLT, CLUTCH WIRE ADJUSTING
$8.54¢4 269
1
#14
88119-K87-A00
CAP, LOCK NUT
$2.79¢1 394
1
#014
88119-K87-A00
CAP, LOCK NUT
$2.79¢1 394
1
#015
88210-K87-A00
MIRROR
$11.76¢5 881
1
#15
88210-K87-A00
MIRROR
$11.76¢5 881
1
#16
90101-K20-901
BOLT, ADAPTER (10MM)
$3.08¢1 538
1
#016
90101-K20-901
BOLT, ADAPTER (10MM)
$3.08¢1 538
1
#017
90111-GHB-660
BOLT, SOCKET (6X22)
$1.27¢638
1
#17
90111-GHB-660
BOLT, SOCKET (6X22)
$1.27¢638
1
#18
90113-438-000
BOLT, L HANDLEBAR LEVER PIVOT
$9.20¢4 600
1
#018
90113-438-000
BOLT, L HANDLEBAR LEVER PIVOT
$9.20¢4 600
1
#019
90201-415-000
NUT, CAP (6MM)
$2.76¢1 381
1
#19
90201-415-000
NUT, CAP (6MM)
$2.76¢1 381
1
#20
90301-K20-901
NUT, HEX. (10MM) (LEFT HAND THREAD)
$0.99¢494
1
#020
90301-K20-901
NUT, HEX. (10MM) (LEFT HAND THREAD)
$0.99¢494
1
#021
90321-KT7-760
NUT, FIXING
$12.21¢6 106
1
#21
90321-KT7-760
NUT, FIXING
$12.21¢6 106
1
#22
90507-MGZ-J00
SCREW-WASHER (5X20)
$0.64¢319
1
#022
90507-MGZ-J00
SCREW-WASHER (5X20)
$0.64¢319
1
#023
94002-08070-0S
NUT, HEX. (8MM)
$1.68¢838
1
#23
94002-08070-0S
NUT, HEX. (8MM)
$1.68¢838
1
