AIR INJECTION SOLENOID VALVE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

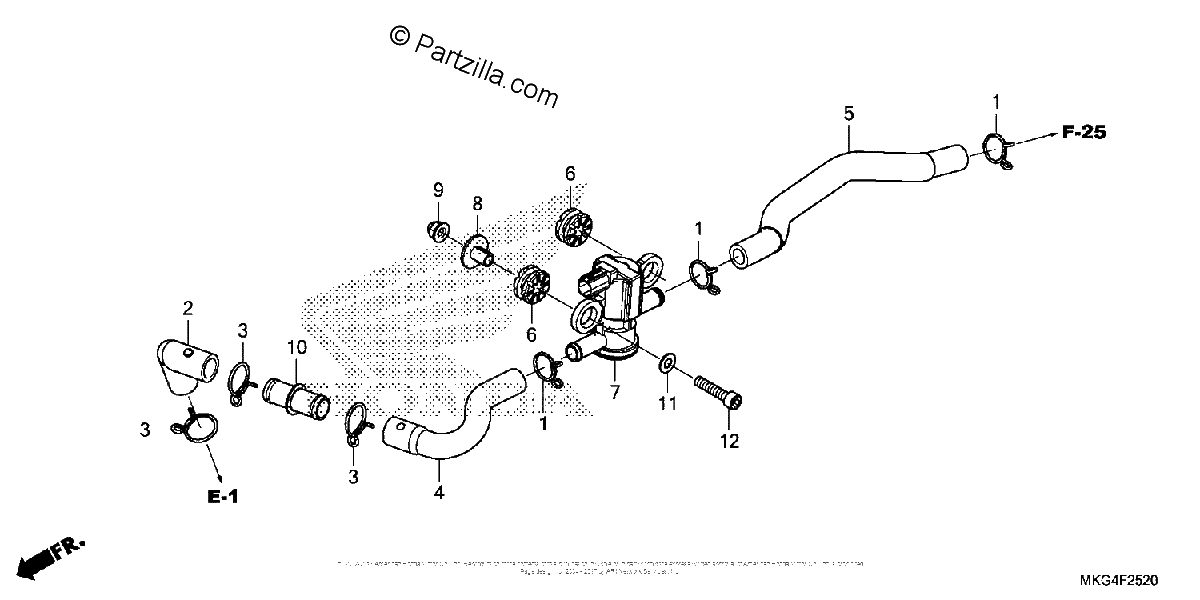

Diagrama de AIR INJECTION SOLENOID VALVE

Repuestos

#1
15772-551-000
CLIP, BREATHER TUBE
$2.24¢1 121
1
#001
15772-551-000
CLIP, BREATHER TUBE
$2.24¢1 121
1
#002
17552-MKG-A00
TUBE A, BREATHER
$4.07¢2 035
1
#2
17552-MKG-A00
TUBE A, BREATHER
$4.07¢2 035
1
#003
17724-102-700
CLIP, SUB-TANK HOSE
$4.89¢2 444
1
#3
17724-102-700
CLIP, SUB-TANK HOSE
$4.89¢2 444
1
#4
18651-MKG-A00
TUBE A, AIR INJECTION
$8.46¢4 232
1
#004
18651-MKG-A00
TUBE A, AIR INJECTION
$8.46¢4 232
1
#5
18652-K87-A00
TUBE B, AIR INJECTION
$15.06¢7 532
1
#005
18652-K87-A00
TUBE B, AIR INJECTION
$15.06¢7 532
1
#006
33115-KVK-900
RUBBER, HEADLIGHT
$1.70¢851
1
#6
33115-KVK-900
RUBBER, HEADLIGHT
$1.70¢851
1
#007
36450-KVK-902
VALVE Assembly., AIR INJECTION SOLENOID
$74.15¢37 076
1
#7
36450-KVK-902
VALVE Assembly., AIR INJECTION SOLENOID
$74.15¢37 076
1
#8
61104-428-000
COLLAR, FR. FENDER
$5.49¢2 743
1
#008
61104-428-010
COLLAR, Front FENDER (WHITE)
$5.49¢2 743
1
#008
61104-428-730
COLLAR, Front FENDER (BLACK)
$4.68¢2 340
1
#9
90202-KCW-870
NUT, CAP (6MM)
$3.36¢1 679
1
#009
90202-KCW-870
NUT, CAP (6MM)
$3.36¢1 679
1
#10
91463-MAL-600
JOINT, TUBE (14.5)
$10.35¢5 175
1
#010
91463-MAL-600
JOINT, TUBE (14.5)
$10.35¢5 175
1
#011
94101-06800
WASHER, PLAIN (6MM)
$0.77¢385
1
#11
94101-06800
WASHER, PLAIN (6MM)
$0.77¢385
1
#012
96600-06028-08
BOLT, SOCKET (6X28)
$4.24¢2 122
1
#12
96600-06028-08
BOLT, SOCKET (6X28)
$4.24¢2 122
1
