FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

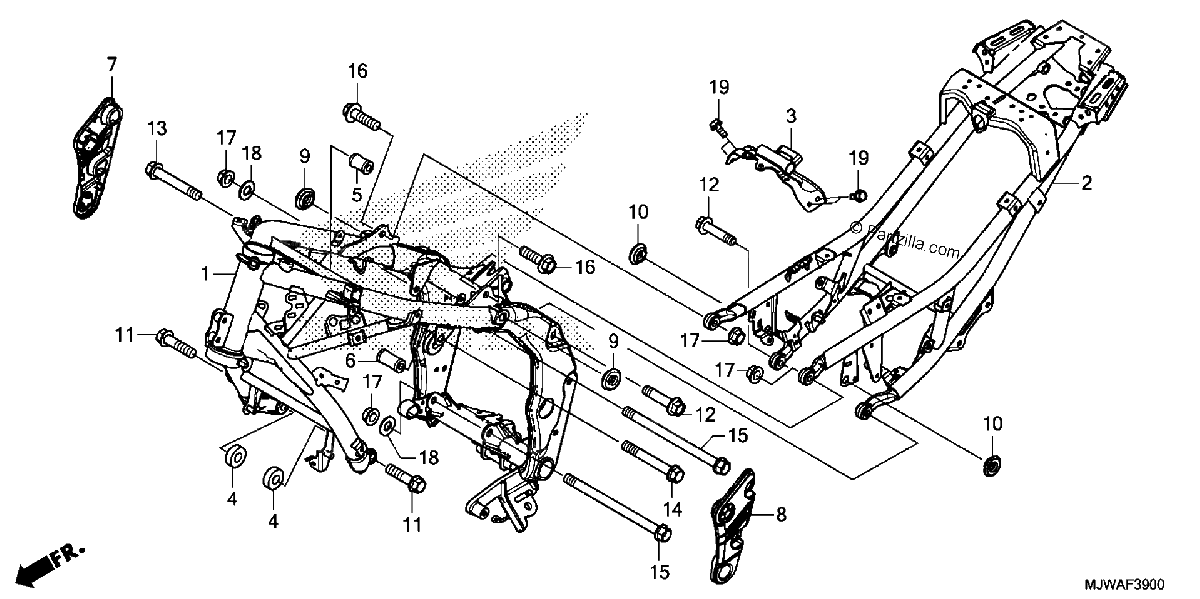

Diagrama de FRAME

Repuestos

#001
50100-MJW-A00ZA
FRAME *NH303M* (MAT AXIS GRAY METALLIC)
$503.49¢251 746
1
#1
50100-MJW-A00ZA
FRAME *NH303M* (MAT AXIS GRAY METALLIC)
$503.49¢251 746
1
#002
50240-MJW-J00ZA
RAIL, SEAT *NH303M* (MAT AXIS GRAY METALLIC)
$455.81¢227 907
1
#2
50240-MJW-J00ZA
RAIL, SEAT *NH303M* (MAT AXIS GRAY METALLIC)
$455.81¢227 907
1
#3
50295-MGZ-J00
BRACKET, FUEL TANK
$14.51¢7 256
1
#003
50295-MGZ-J00
BRACKET, FUEL TANK
$14.51¢7 256
1
#004
50351-MGZ-J01
COLLAR A, ENGINE HANGER
$4.70¢2 352
1
#4
50351-MGZ-J01
COLLAR A, ENGINE HANGER
$4.70¢2 352
1
#5
50353-MGZ-J00
COLLAR B, R. ENGINE HANGER
$8.75¢4 376
1
#005
50353-MGZ-J00
COLLAR B, R. ENGINE HANGER
$8.75¢4 376
1
#6
50354-MGZ-J00
COLLAR B, L ENGINE HANGER
$10.03¢5 014
1
#006
50354-MGZ-J00
COLLAR B, L ENGINE HANGER
$10.03¢5 014
1
#007
50401-MJW-J00
COVER, R. PIVOT
$7.29¢3 645
1
#7
50401-MJW-J00
COVER, R. PIVOT
$7.29¢3 645
1
#8
50451-MJW-J00
COVER, L PIVOT
$7.29¢3 645
1
#008
50451-MJW-J00
COVER, L PIVOT
$7.29¢3 645
1
#9
83551-300-000
GROMMET, AIR CLEANER HOUSING
$4.09¢2 047
1
#009
83551-300-000
GROMMET, AIR CLEANER HOUSING
$4.09¢2 047
1
#010
83551-376-000
GROMMET, SIDE COVER
$3.36¢1 679
1
#10
83551-376-000
GROMMET, SIDE COVER
$3.36¢1 679
1
#11
90101-MGZ-J00
BOLT, FLANGE (10X40)
$2.36¢1 179
1
#011
90101-MGZ-J00
BOLT, FLANGE (10X40)
$2.36¢1 179
1
#12
90101-MJW-J00
BOLT, FLANGE (10X45)
$6.24¢3 122
1
#012
90101-MJW-J00
BOLT, FLANGE (10X45)
$6.24¢3 122
1
#013
90102-MGZ-J00
BOLT, FLANGE (10X65)
$2.28¢1 138
1
#13
90102-MGZ-J00
BOLT, FLANGE (10X65)
$2.28¢1 138
1
#014
90103-MGZ-J00
BOLT, FLANGE (10X75)
$2.66¢1 328
1
#14
90103-MGZ-J00
BOLT, FLANGE (10X75)
$2.66¢1 328
1
#015
90104-KYJ-900
BOLT, FLANGE (10X146)
$3.81¢1 903
1
#15
90104-KYJ-900
BOLT, FLANGE (10X146)
$3.81¢1 903
1
#16
90168-S2A-010
BOLT, FLANGE (10X35)
$5.93¢2 967
1
#016
90168-S2A-010
BOLT, FLANGE (10X35)
$5.93¢2 967
1
#17
94050-10000
NUT, FLANGE (10MM)
$1.75¢874
1
#017
94050-10000
NUT, FLANGE (10MM)
$1.75¢874
1
#018
94101-10800
WASHER, PLAIN (10MM)
$2.22¢1 110
1
#18
94101-10800
WASHER, PLAIN (10MM)
$2.22¢1 110
1
#19
95701-06014-08
BOLT, FLANGE (6X14)
$1.92¢960
1
#019
95701-06014-08
BOLT, FLANGE (6X14)
$1.92¢960
1
