OIL PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

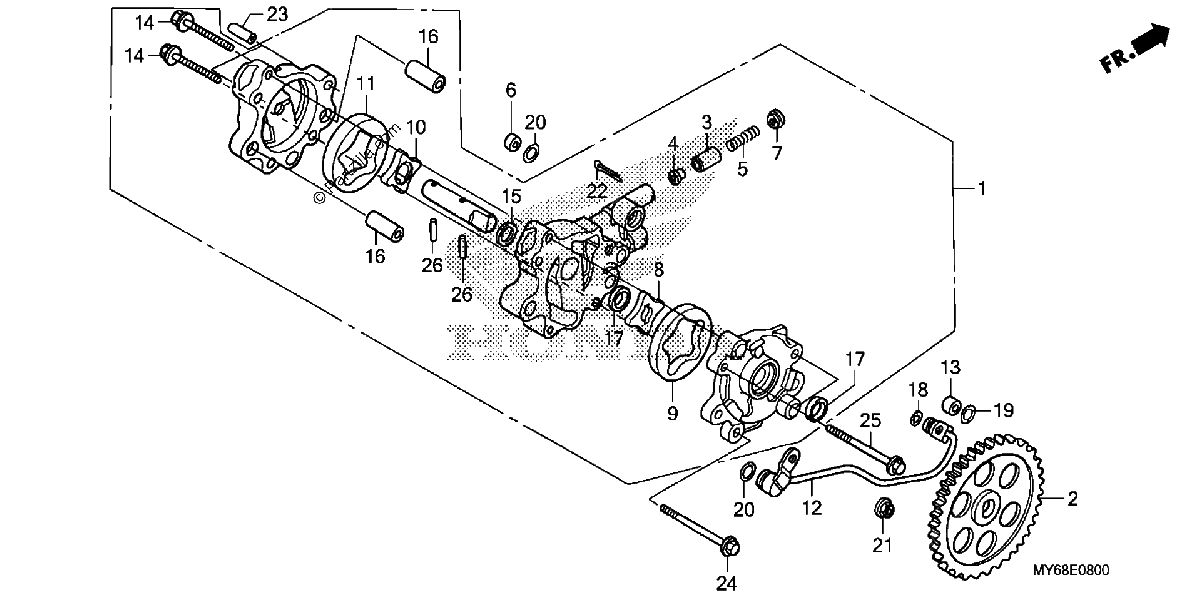

Diagrama de OIL PUMP

Repuestos

#1
15100-MY6-670
PUMP ASSY., OIL
$183.62¢91 810
1
#2
15105-MN1-671
GEAR, OIL PUMP DRIVEN (47T)
$90.96¢45 482
1
#3
15106-MG3-000
VALVE, OIL LEAK STOPPER
$20.10¢10 051
1
#4
15107-MG3-000
OIL SEAL, LEAK STOPPER
$5.04¢2 519
1
#5
15108-MG3-000
SPRING, OIL LEAK STOPPER
$4.51¢2 254
1
#6
15109-MG3-000
ORIFICE (5.5MM)
$14.24¢7 119
1
#7
15111-MG3-000
SEAT B, SPRING
$3.45¢1 725
1
#8
15115-MG3-000
ROTOR A, OIL PUMP (INNER)
$20.06¢10 028
1
#9
15116-MG3-000
ROTOR A, OIL PUMP (OUTER)
$32.33¢16 163
1
#10
15121-MG3-000
ROTOR (INNER)
$24.06¢12 029
1
#11
15122-MG3-000
ROTOR (OUTER)
$37.10¢18 550
1
#12
15510-MK2-000
PIPE, OIL
$60.78¢30 389
1
#13
17958-197-300
HOLDER
$4.30¢2 151
1
#14
90014-ZE6-000
BOLT, FLANGE (6X35) (CT200)
$2.33¢1 167
1
#15
90456-333-000
WASHER, THRUST (11MM)
$3.15¢1 576
1
#16
90701-MG3-000
PIN, DOWEL (8X24)
$4.51¢2 254
1
#17
91208-MN1-771
OIL SEAL (11X15X3) (KOYO)
$9.31¢4 658
1
#18
91301-473-003
O-RING (7X1.7)
$3.22¢1 610
1
#19
91302-PJ4-000
O-RING (9.8MM)
$2.89¢1 443
1
#19
91302-PJ4-004
O-RING (9.6X1.9) (ARAI)
$2.89¢1 443
1
#19
91305-PE2-003
O-RING (9.8X1.9)
$2.89¢1 443
1
#20
91306-MG3-000
O-RING (1.5X9.5)
$2.75¢1 374
1
#21
94050-06080
NUT, FLANGE (6MM)
$0.74¢368
1
#22
94201-03200
PIN, SPLIT (3MM)
No Disponible
1
#22
94201-30200
PIN, SPLIT (3.0X20)
No Disponible
1
#22
94201-30250
PIN, SPLIT (3.0X25)
$1.17¢586
1
#22
94201-30280
PIN, SPLIT (3.0X28)
$1.17¢586
1
#22
94201-30300
PIN, SPLIT (3.0X30)
$1.17¢586
1
#22
94201-30400
PIN, SPLIT (3.0)
$1.17¢586
1
#22
94201-30450
PIN, SPLIT (3.0X45)
$1.17¢586
1
#23
94301-08140
PIN, DOWEL (8X14)
$2.66¢1 328
1
#24
96001-06055-00
BOLT, FLANGE (6X55)
$1.92¢960
1
#25
96001-06060-00
BOLT, FLANGE (6X60)
$2.56¢1 282
1
#26
96220-40158
ROLLER (4X15.8)
$0.51¢253
1
