HEADLIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

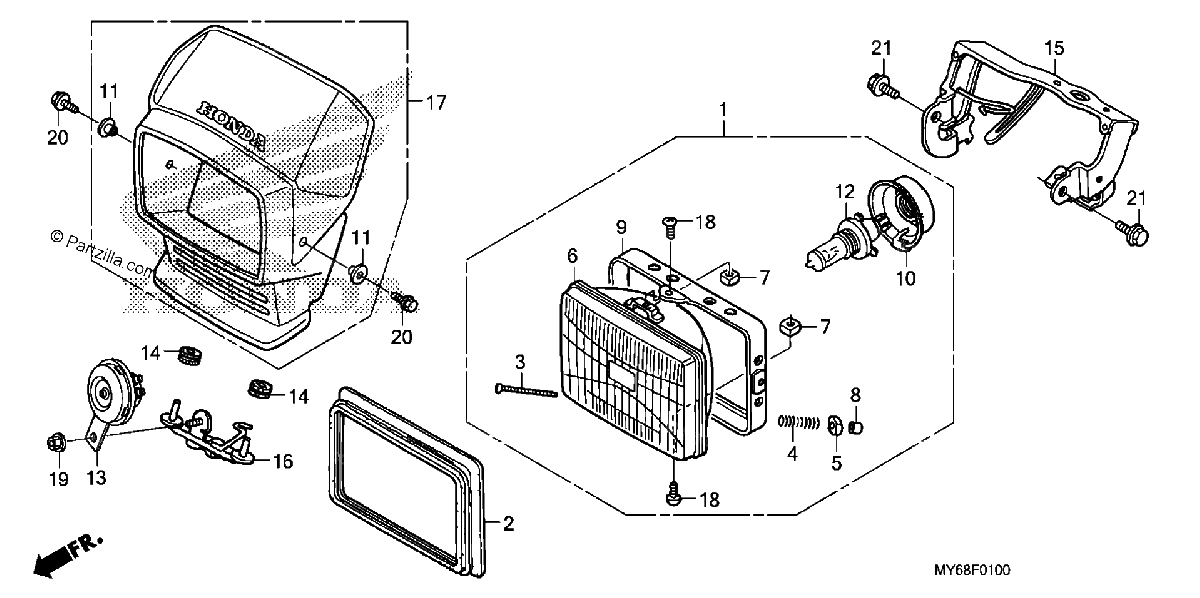

Diagrama de HEADLIGHT

Repuestos

#1
33100-MGW-305
HEADLIGHT Assembly. (12V 60/55W) (COO)
$210.10¢105 052
1
#2
33102-MG2-000
GASKET, HEADLIGHT
$31.33¢15 663
1
#3
33103-MG2-671
SCREW, BEAM ADJUSTING
$6.19¢3 093
1
#4
33107-MG2-671
SPRING, HEADLIGHT BEAM ADJUSTING
$3.36¢1 679
1
#5
33117-415-003
NUT, BEAM ADJUSTING (STANLEY)
$2.64¢1 322
1
#6
33120-MGW-305
HEADLIGHT UNIT (COO)
$75.06¢37 530
1
#7
33128-471-003
NUT, UNIT HOLDER
$1.83¢914
1
#8
33136-426-830
COVER, SCREW
$2.22¢1 110
1
#9
33153-KV6-671
RING, MOUNTING
$47.44¢23 719
1
#10
33180-471-902
COVER, RUBBER
$14.14¢7 073
1
#11
33712-GC2-000
COLLAR A, TAILLIGHT
$3.39¢1 696
1
#12
34901-MC7-602
BULB, HEADLIGHT (12V 60/55W) (STANLEY)
$39.72¢19 861
1
#13
38110-KL3-673
HORN Assembly. (HIGH)
$41.32¢20 660
1
#14
53133-KB4-000
GROMMET, IGNITION COVER
$2.68¢1 340
1
#15
61314-MY6-670
BRACKET, HEADLIGHT
$181.83¢90 913
1
#16
61318-MY6-670
STAY, Front VISOR (LOWER)
$30.61¢15 307
1
#17
87125-MY6-A90ZA
VISOR SET, FR. *NH196* (WL) (ROSS WHITE)
$100.67¢50 336
1
#18
93500-05010-0G
SCREW, PAN (5X10)
$1.07¢535
1
#19
94050-08070
NUT, FLANGE (8MM)
$1.77¢886
1
#20
96300-06014-00
BOLT, FLANGE (6X14)
$1.12¢558
1
#21
96300-08012-00
BOLT, FLANGE (8X12)
$3.36¢1 679
1
