TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

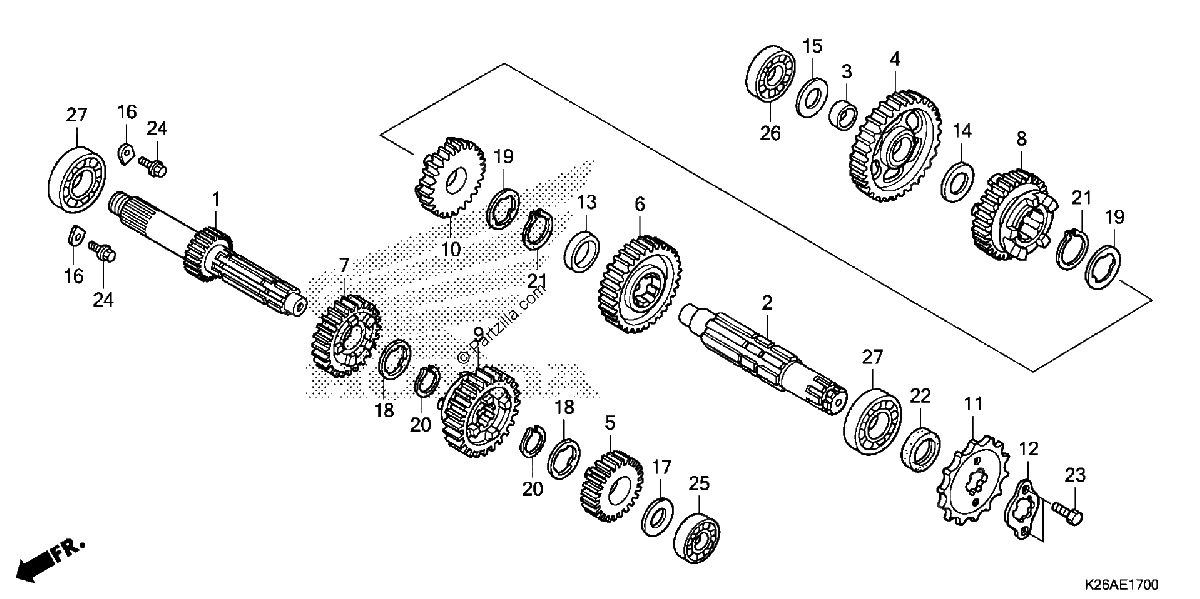

Diagrama de TRANSMISSION

Repuestos

#1
23211-KPH-900
MAINSHAFT (14T)
$32.50¢16 250
1
#2
23221-KPH-900
COUNTERSHAFT
$30.45¢15 225
1
#3
23415-KPH-900
BUSH (15MM)
$6.67¢3 338
1
#4
23421-KPH-900
GEAR, COUNTERSHAFT FIRST (35T)
$21.79¢10 894
1
#5
23431-KPH-700
GEAR, MAINSHAFT SECOND (20T)
$27.54¢13 769
1
#6
23441-KPH-900
GEAR, COUNTERSHAFT SECOND (31T)
$14.74¢7 369
1
#7
23451-KPH-700
GEAR, MAINSHAFT THIRD (20T)
$29.16¢14 581
1
#8
23461-KPH-900
GEAR, COUNTERSHAFT THIRD (23T)
$27.15¢13 575
1
#9
23471-KPH-700
GEAR, MAINSHAFT FOURTH (26T)
$21.34¢10 669
1
#10
23481-KPH-700
GEAR, COUNTERSHAFT FOURTH (24T)
$33.14¢16 569
1
#11
23801-K26-900
SPROCKET, DRIVE (15T)
$22.11¢11 056
1
#12
23802-GN5-910
PLATE, FIXING
$5.96¢2 981
1
#13
23911-KPG-T00
COLLAR (5.1MM)
$1.80¢900
1
#14
90412-187-000
WASHER, THRUST (15MM)
$2.76¢1 381
1
#15
90412-KPH-900
WASHER, SPECIAL (12X23)
$0.90¢450
1
#16
90441-KRM-840
PLATE, BEARING HOLDER
$0.78¢388
1
#17
90452-KGH-900
WASHER, SPECIAL (12MM)
$3.40¢1 700
1
#18
90461-115-000
WASHER, SPLINE (17MM)
$3.43¢1 713
1
#19
90461-GB4-770
WASHER, SPLINE (20X1.2)
$4.36¢2 181
1
#20
90601-001-000
CIRCLIP, OUTER (17MM)
$1.86¢931
1
#21
90605-200-000
SET-RING (20MM)
$3.65¢1 825
1
#22
91204-KPH-901
OIL SEAL (17X30X5) (ARAI)
$1.38¢688
1
#23
92101-06010-0A
BOLT, HEX. (6X10)
$1.80¢900
1
#24
95701-06014-00
BOLT, FLANGE (6X14)
$1.23¢613
1
#25
96100-60010-00
BEARING, RADIAL BALL (6001)
$25.94¢12 969
1
#26
96100-62010-00
BEARING, RADIAL BALL (6201)
$9.80¢4 900
1
#27
96100-62030-00
BEARING, RADIAL BALL (6203)
$10.19¢5 094
1
