AIR CLEANER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

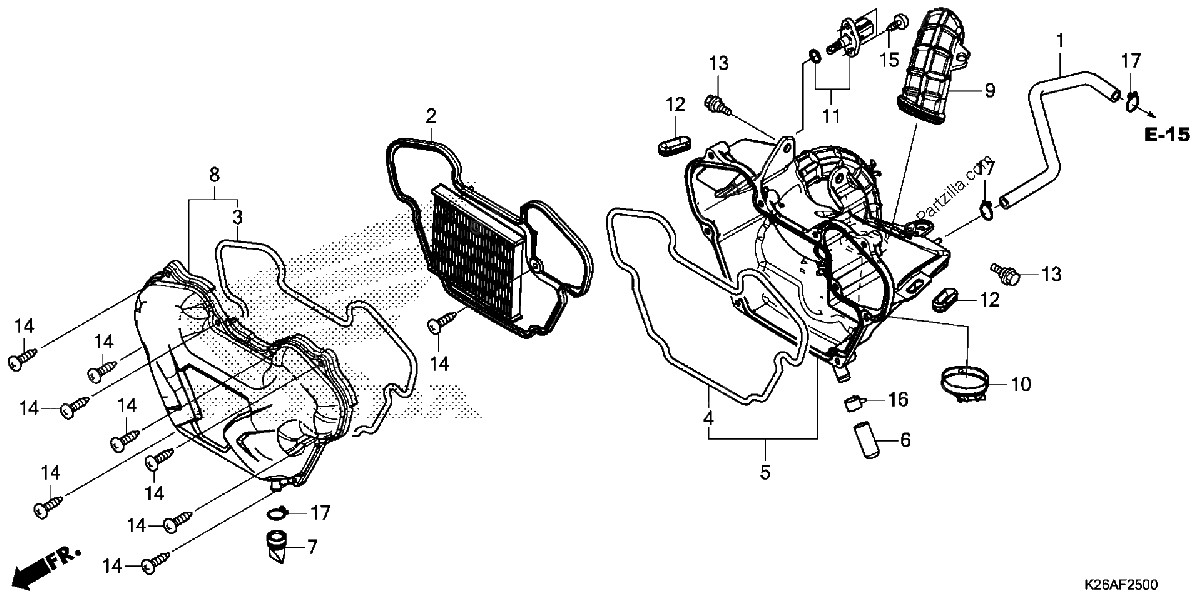

Diagrama de AIR CLEANER

Repuestos

#1
15761-K26-900
TUBE, BREATHER
$8.05¢4 025
1
#2
17210-K26-900
ELEMENT, AIR CLEANER
$9.05¢4 525
1
#3
17214-K26-900
SEAL, AIR CLEANER COVER
$3.66¢1 831
1
#4
17215-K26-900
SEAL, AIR CLEANER HOUSING
$2.55¢1 275
1
#5
17225-K26-921
CASE SUB-ASSY., AIR CLEANER
$45.25¢22 625
1
#6
17227-KPK-900
TUBE, VINYL (11X15X35)
$3.75¢1 875
1
#7
17234-KCW-871
TUBE, AIR CLEANER DRAIN
$3.33¢1 663
1
#8
17235-K26-900
COVER SUB-ASSY., AIR CLEANER
$12.05¢6 025
1
#9
17241-K26-900
DUCT, AIR CLEANER
$19.10¢9 550
1
#10
17254-K26-900
BAND, CONNECTING TUBE (44)
$5.25¢2 625
1
#11
37880-KWW-C01
SENSOR ASSY., AIR TEMPERATURE
$51.75¢25 875
1
#12
83601-MB0-000
GROMMET A, SIDE COVER
$5.47¢2 738
1
#13
90116-KVB-900
BOLT, FLANGE (6MM)
$1.27¢638
1
#14
93903-25580
SCREW, TAPPING (5X25)
$1.41¢706
1
#15
93911-25520
SCREW, TAPPING (5X20)
$1.00¢500
1
#16
95002-41300-08
CLAMP, TUBE (D13)
$3.65¢1 825
1
#17
95002-80000
CLIP, TUBE (C12)
$0.60¢300
1
