REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

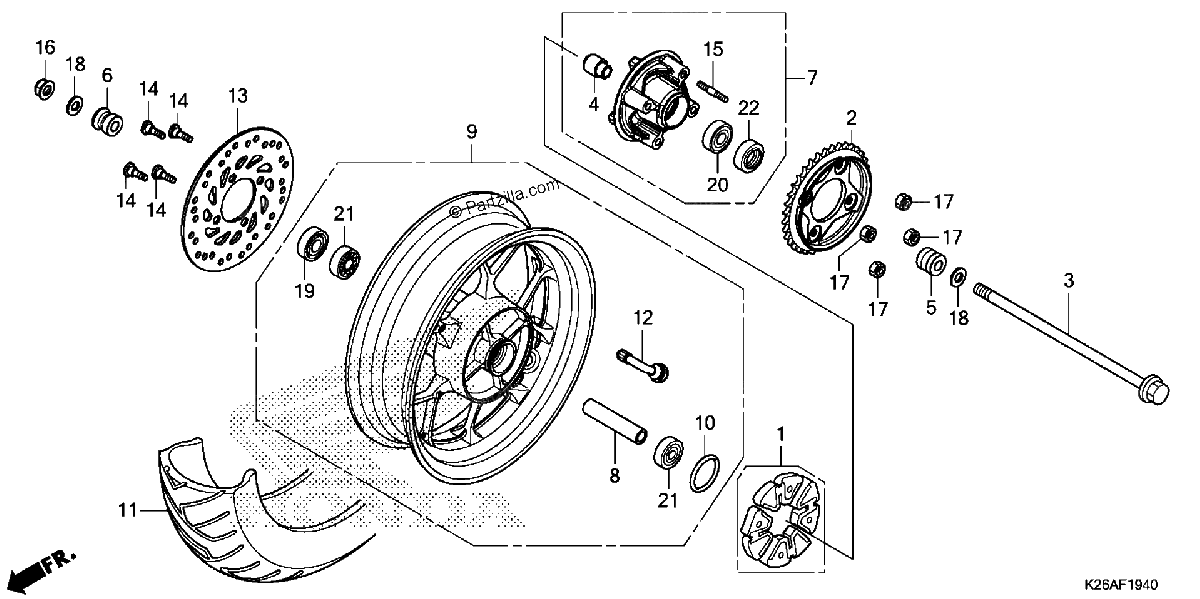

Diagrama de REAR WHEEL

Repuestos

#1
06410-KWB-600
DAMPER SET, WHEEL
$10.15¢5 077
1
#2
41200-K26-901
SPROCKET, FINAL DRIVEN (34T)
$46.05¢23 023
1
#3
42301-K26-900
AXLE, RR. WHEEL
$8.19¢4 094
1
#4
42303-KWB-600
SLEEVE, RR. WHEEL
$3.36¢1 679
1
#5
42311-K26-900
COLLAR, L. RR. WHEEL SIDE
$13.27¢6 635
1
#6
42312-K26-900
COLLAR, R. RR. WHEEL SIDE
$14.96¢7 481
1
#7
42615-K26-B10
FLANGE SUB-ASSY., FINAL DRIVEN
$70.81¢35 403
1
#8
42620-K26-900
COLLAR, RR. AXLE DISTANCE
$6.08¢3 042
1
#9
42650-K26-306ZA
WHEEL SUB-ASSY., RR. *NH303M* (COO)(MAT AXIS GRAY METALLIC)
$243.65¢121 825
1
#10
42653-001-004
O-RING (40.5X3) (NIPPON DUST KEEPER)
$2.83¢1 414
1
#11
42711-K26-B01
TIRE, RR. (130/70-12 56L) (VEE RUBBER)
$70.45¢35 225
1
#11
42711-K26-B02
TIRE, RR. (130/70-12 56L) (IRC)
$70.45¢35 225
1
#12
42753-KJ9-005
VALVE, RIM (IRC)
$17.76¢8 878
1
#12
42753-KJ9-004
VALVE, RIM (DUNLOP)
$17.45¢8 723
1
#12
42753-KJ9-003
VALVE, RIM (BS)
$18.69¢9 344
1
#13
43251-K26-900
DISK, RR. BRAKE
$38.01¢19 004
1
#14
90105-KGH-900
BOLT, BRAKE DISK (8X24)
$2.27¢1 133
1
#15
90128-KWB-600
BOLT, STUD (8X18)
$0.77¢385
1
#16
90306-KGH-901
NUT, U (12MM) (FUJI SEIMITSU)
$3.04¢1 518
1
#17
90309-KPH-971
NUT, U (8MM) (FUJI SEIMITSU)
$1.94¢972
1
#18
90504-K26-900
WASHER, RR. AXLE
$2.83¢1 414
1
#19
90753-051-003
OIL SEAL (26X37X6) (ARAI)
$8.54¢4 272
1
#20
91051-K35-V02
BEARING, RADIAL BALL (6203UU) (NTN)
$20.54¢10 269
1
#20
91051-K35-V03
BEARING, RADIAL BALL (6203UU) (FUJIKOSHI)
$20.54¢10 269
1
#21
91053-K03-H01
BEARING, RADIAL BALL (6301U L)(NTN)
$7.72¢3 858
1
#21
91053-K03-H02
BEARING, RADIAL BALL (6301U L)(FAG)
$7.72¢3 858
1
#22
91251-KGH-902
DUST SEAL (27X40X4.5) (NOK)
$1.17¢586
1
