REAR FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

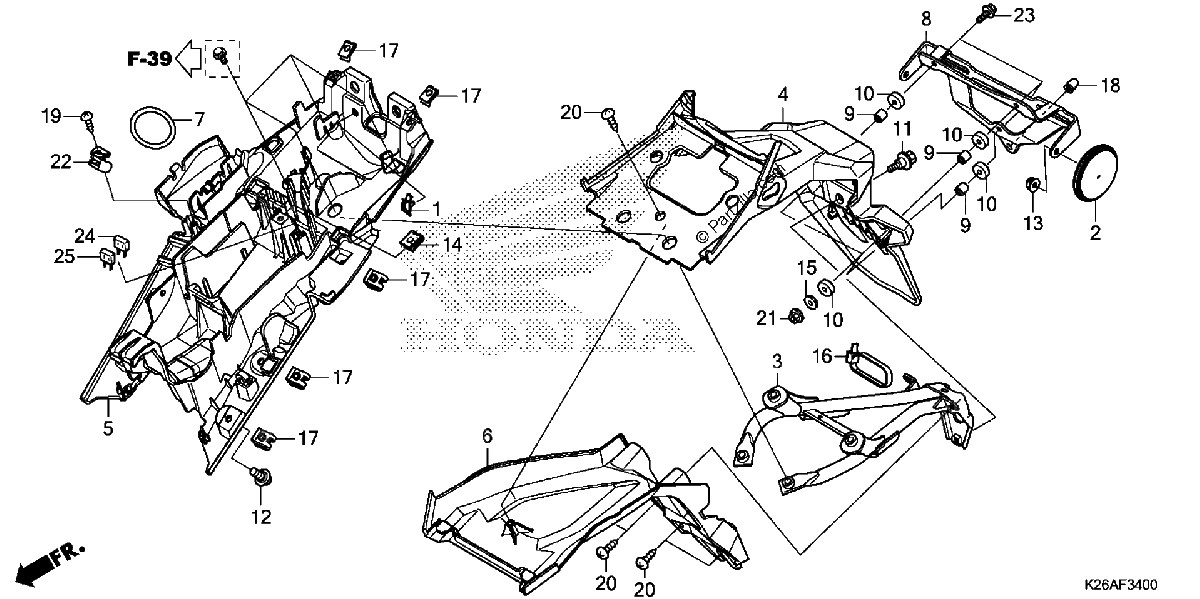

Diagrama de REAR FENDER

Repuestos

#1
32161-393-003
CLIP, WIRE HARNESS
$3.77¢1 888
1
#2
33741-HB9-641
REFLECTOR, Rear REFLEX (RED)
$15.50¢7 750
1
#3
50188-K26-B00
STAY, RR. FENDER
$85.19¢42 594
1
#4
80100-K26-B10ZA
FENDER SET A, RR. (TYPE1) (WL)
$16.85¢8 425
1
#5
80101-K26-B00
FENDER B, RR.
$12.34¢6 169
1
#6
80102-K26-B00
FENDER, RR. (INNER)
$7.60¢3 800
1
#7
80124-K26-900
BAND, TOOL
$6.29¢3 144
1
#8
84701-K26-910
BRACKET, NUMBER PLATE
$71.66¢35 831
1
#9
84702-K26-950
COLLAR, NUMBER BRACKET
$1.13¢563
1
#10
84703-K26-950
RUBBER, NUMBER BRACKET
$2.19¢1 094
1
#11
90103-K26-B00
BOLT, FLANGE (6MM)
$0.68¢338
1
#12
90117-KVG-A20
SCREW, PAN (5X13)
$1.25¢625
1
#13
90301-KGH-901
NUT, U (6MM) (FUJI SEIMITSU)
$1.79¢894
1
#14
90320-MM5-000
NUT, SPRING (6MM)
$3.65¢1 825
1
#15
90485-286-000
WASHER (6MM)
$2.09¢1 044
1
#16
90650-KV6-003
BAND, WIRE (95MM)
$3.77¢1 888
1
#17
90677-KAN-T00
NUT, CLIP (5MM)
$0.83¢413
1
#18
90899-422-610
PLUG, CONE TYPE
$2.56¢1 281
1
#19
93903-24310
SCREW, TAPPING (4X12)
$1.16¢581
1
#20
93903-25380
SCREW, TAPPING (5X16)
$1.16¢581
1
#21
94050-06000
NUT, FLANGE (6MM)
$0.80¢400
1
#22
94591-27000
CLIP (2X70)
$3.65¢1 825
1
#23
95801-06025-07
BOLT, FLANGE (6X25)
$2.31¢1 156
1
#24
98200-41000
FUSE, MINI (10A)
$1.70¢850
1
#25
98200-41500
FUSE, MINI (15A)
$1.49¢744
1
