THROTTLE BODY

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

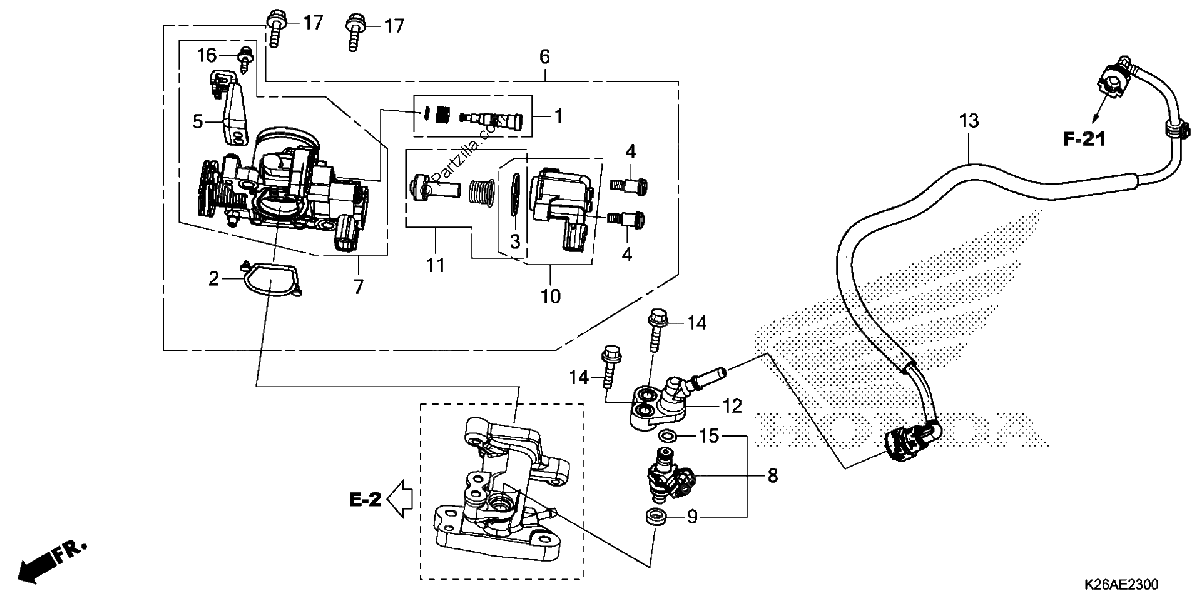

Diagrama de THROTTLE BODY

Repuestos

#1
16016-K03-H11
SCREW SET
$2.48¢1 238
1
#2
16075-KYZ-711
O-RING
$4.39¢2 194
1
#3
16077-KVB-S51
O-RING (1.9X20.4)
$1.76¢881
1
#4
16081-KYJ-901
SCREW, TORX (5X8.7)
$3.52¢1 763
1
#5
16169-K26-901
STAY, WIRE
$25.04¢12 519
1
#6
16400-K26-B11
BODY ASSY., THROTTLE (Y4B A)
$152.21¢76 106
1
#7
16410-K26-B11
BODY SET
$100.13¢50 063
1
#8
16450-K03-H11
INJECTOR ASSY., FUEL
$46.86¢23 431
1
#9
16472-KPC-D50
RING, SEAL
$2.75¢1 375
1
#10
16480-KVB-S51
SOLENOID
$53.11¢26 556
1
#11
16485-GGZ-J01
SEAT SET
$4.94¢2 469
1
#12
17560-K26-900
JOINT, INJECTOR
$53.14¢26 569
1
#13
17570-K26-B01
HOSE, FUEL FEED
$23.81¢11 906
1
#14
90001-K26-900
BOLT, FLANGE (6X22)
$7.81¢3 906
1
#15
91301-GGL-J01
O-RING (6.3X2.2)
$12.15¢6 075
1
#16
93892-05012-08
SCREW-WASHER (5X12)
$1.47¢737
1
#16
93892-05012-18
SCREW-WASHER (5X12)
$1.47¢737
1
#17
96001-06020-00
BOLT, FLANGE (6X20)
$1.60¢800
1
