REAR SHOCK ABSORBER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

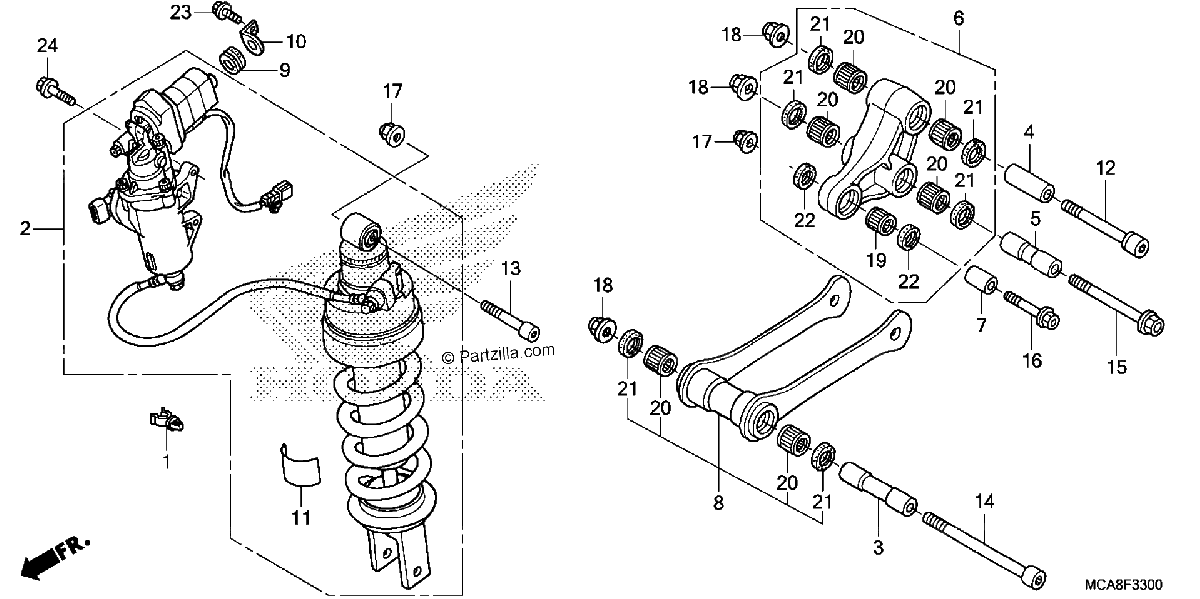

Diagrama de REAR SHOCK ABSORBER

Repuestos

#1
17938-SE0-941
CLIP, THROTTLE WIRE
$8.44¢4 220
1
#001
17938-SE0-941
CLIP, THROTTLE WIRE
$8.44¢4 220
1
#002
52400-MCA-305
CUSHION ASSY., RR. (COO) (SHOWA)
$2126.99¢1 063 497
1
#2
52400-MCA-305
CUSHION ASSY., RR. (COO) (SHOWA)
$2126.99¢1 063 497
1
#002
52400-MCA-S41
CUSHION Assembly., Rear. (SHOWA)
$2126.99¢1 063 497
1
#3
52462-MCA-000
COLLAR, CONNECTING ROD PIVOT
$19.46¢9 729
1
#003
52462-MCA-000
COLLAR, CONNECTING ROD PIVOT
$19.46¢9 729
1
#004
52463-MAW-760
COLLAR A, CUSHION ARM
$11.37¢5 687
1
#4
52463-MAW-760
COLLAR A, CUSHION ARM
$11.37¢5 687
1
#5
52463-MCA-000
COLLAR C, CUSHION ARM
$14.27¢7 136
1
#005
52463-MCA-000
COLLAR C, CUSHION ARM
$14.27¢7 136
1
#6
52465-MCA-000
ARM SUB-ASSY., CUSHION
$346.02¢173 012
1
#006
52465-MCA-000
ARM SUB-ASSY., CUSHION
$346.02¢173 012
1
#7
52465-MY1-000
COLLAR C, CUSHION ARM
$6.59¢3 295
1
#007
52465-MY1-000
COLLAR C, CUSHION ARM
$6.59¢3 295
1
#8
52475-MCA-000
ROD SUB-ASSY., CUSHION CONNECTING
$149.67¢74 836
1
#008
52475-MCA-000
ROD SUB-ASSY., CUSHION CONNECTING
$149.67¢74 836
1
#009
52491-MCA-000
GROMMET, MOTOR MOUNTING
$6.11¢3 053
1
#9
52491-MCA-000
GROMMET, MOTOR MOUNTING
$6.11¢3 053
1
#010
52492-MCA-000
STAY, MOTOR
$4.24¢2 122
1
#10
52492-MCA-000
STAY, MOTOR
$4.24¢2 122
1
#011
87516-KV6-610
LABEL, RR. DAMPER (ENGLISH)
$5.84¢2 921
1
#11
87516-KV6-610
LABEL, RR. DAMPER (ENGLISH)
$5.84¢2 921
1
#012
90110-MCA-000
BOLT, SOCKET (12X90)
$14.74¢7 371
1
#12
90110-MCA-000
BOLT, SOCKET (12X90)
$14.74¢7 371
1
#013
90110-ML7-000
BOLT, SOCKET (10X55)
$6.43¢3 214
1
#13
90110-ML7-000
BOLT, SOCKET (10X55)
$6.43¢3 214
1
#14
90111-MCA-000
BOLT, SOCKET (12X127)
$16.55¢8 274
1
#014
90111-MCA-000
BOLT, SOCKET (12X127)
$16.55¢8 274
1
#015
90123-MCA-000
BOLT, FLANGE (12X99)
$6.35¢3 174
1
#15
90123-MCA-000
BOLT, FLANGE (12X99)
$6.35¢3 174
1
#016
90153-KF0-000
BOLT, FLANGE (10X55)
$11.74¢5 871
1
#16
90153-KF0-000
BOLT, FLANGE (10X55)
$11.74¢5 871
1
#017
90304-GE8-003
NUT, U (10MM) (FUSE RASHI)
$4.09¢2 047
1
#17
90304-GE8-003
NUT, U (10MM) (FUSE RASHI)
$4.09¢2 047
1
#018
90306-KF0-003
NUT, FLANGE (12MM) (FUSE RASHI)
$4.30¢2 151
1
#18
90306-KF0-003
NUT, FLANGE (12MM) (FUSE RASHI)
$4.30¢2 151
1
#19
91071-MY1-005
BEARING, NEEDLE (17X24X17) (KOYO)
$21.03¢10 517
1
#019
91071-MY1-005
BEARING, NEEDLE (17X24X17) (KOYO)
$21.03¢10 517
1
#20
91072-MY1-005
BEARING, NEEDLE (20X26X20)
$19.78¢9 890
1
#020
91072-MY1-005
BEARING, NEEDLE (20X26X20)
$19.78¢9 890
1
#21
91254-KS6-003
DUST SEAL (20X26X4.5) (ARAI)
$9.90¢4 951
1
#021
91254-KS6-003
DUST SEAL (20X26X4.5) (ARAI)
$9.90¢4 951
1
#022
91262-KV3-831
DUST SEAL (17X24X5) (ARAI)
$6.91¢3 456
1
#22
91262-KV3-831
DUST SEAL (17X24X5) (ARAI)
$6.91¢3 456
1
#023
95701-06012-00
BOLT, FLANGE (6X12)
$1.92¢960
1
#23
95701-06012-00
BOLT, FLANGE (6X12)
$1.92¢960
1
#024
95701-08025-00
BOLT, FLANGE (8X25)
$2.12¢1 058
1
#24
95701-08025-00
BOLT, FLANGE (8X25)
$2.12¢1 058
1
