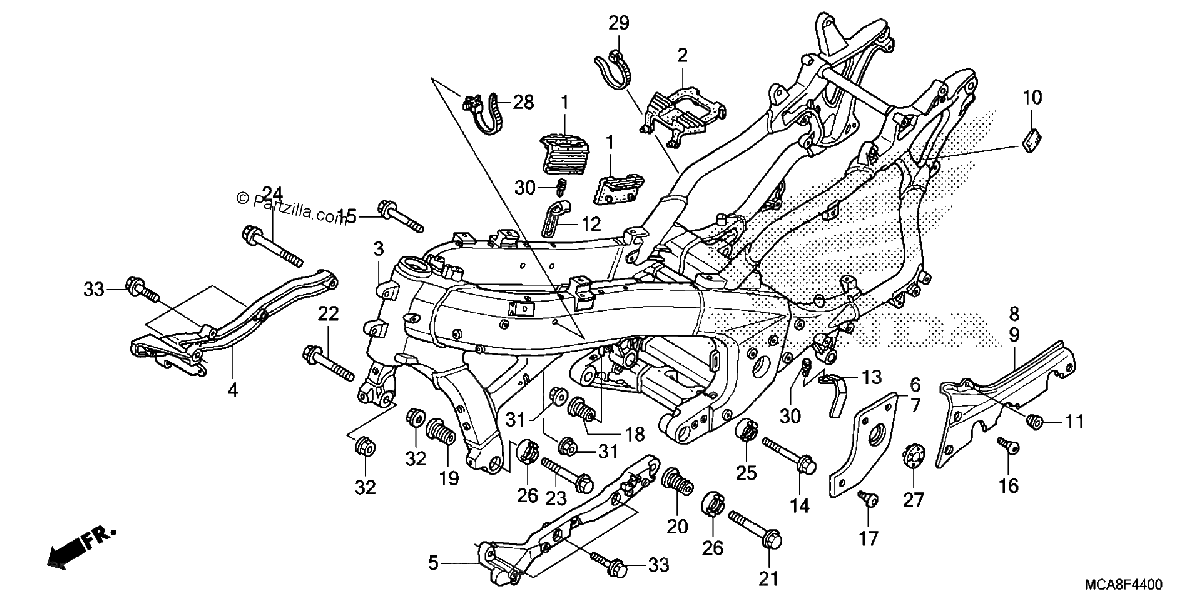

FRAME
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
CUSHION, FR. FUEL TANK
$18.78¢9 390
#2
CUSHION, FUEL TANK CENTER
$14.97¢7 486
#3
FRAME *NHA86M* (MAT BALLISTIC BLACK)
$8624.34¢4 312 172
#4
BEAM, R. ENGINE SUPPORT
$177.28¢88 642
#5
BEAM, L. ENGINE SUPPORT
$207.00¢103 500
#6
COVER, R. PIVOT PLATE *NH1* (BLACK)
$8.88¢4 439
#7
COVER, L. PIVOT PLATE *NH1* (BLACK)
$12.35¢6 176
#8
COVER, R. PILLION STEP HOLDER *NHA86M* (MAT BALLISTIC BLACK)
$123.29¢61 646
#9
COVER, L. PILLION STEP HOLDER *NHA86M* (MAT BALLISTIC BLACK)
$123.29¢61 646
#10
SEAL, SADDLEBAG
$1.56¢782
#11
GROMMET, SIDE COVER
$3.09¢1 547
#12
COVER, R. WELD BEAD *NHA86M* (MAT BALLISTIC BLACK)
$29.58¢14 789
#13
COVER, L. WELD BEAD *NHA86M* (MAT BALLISTIC BLACK)
$29.58¢14 789
#14
BOLT, FLANGE (10X85)
$8.61¢4 307
#15
BOLT, FLANGE (10X62)
$4.50¢2 248
#16
SCREW, SPECIAL (5X12)
$3.16¢1 581
#17
SCREW, PAN (5X13)
$2.86¢1 432
#18
BOLT, ADJUSTING (M20-43.5)
$16.65¢8 326
#19
BOLT, ADJUSTING (M22-47)
$20.02¢10 011
#20
BOLT, ADJUSTING (M22-40)
$12.76¢6 382
#21
BOLT, FLANGE (12X92)
$5.88¢2 938
#22
BOLT, FLANGE (12X72)
$14.18¢7 090
#23
BOLT, FLANGE (12X92)
$14.35¢7 176
#24
BOLT, FLANGE (12X84)
$15.50¢7 751
#25
NUT, LOCK (20MM)
$11.60¢5 802
#26
NUT, LOCK
$11.68¢5 842
#27
CAP, PIVOT
$8.64¢4 318
#28
BAND, WIRE HARNESS (150MM) (NATURAL)
$6.47¢3 237
#29
BAND, WIRE (165MM) (BLACK)
$3.36¢1 679
#30
CLIP, PANEL FIXING
$2.42¢1 208
#31
NUT, FLANGE (10MM)
$1.75¢874
#32
NUT, FLANGE (12MM)
$1.17¢586
#33
BOLT, FLANGE (10X40)
$3.36¢1 679
