REDUCTION GEAR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

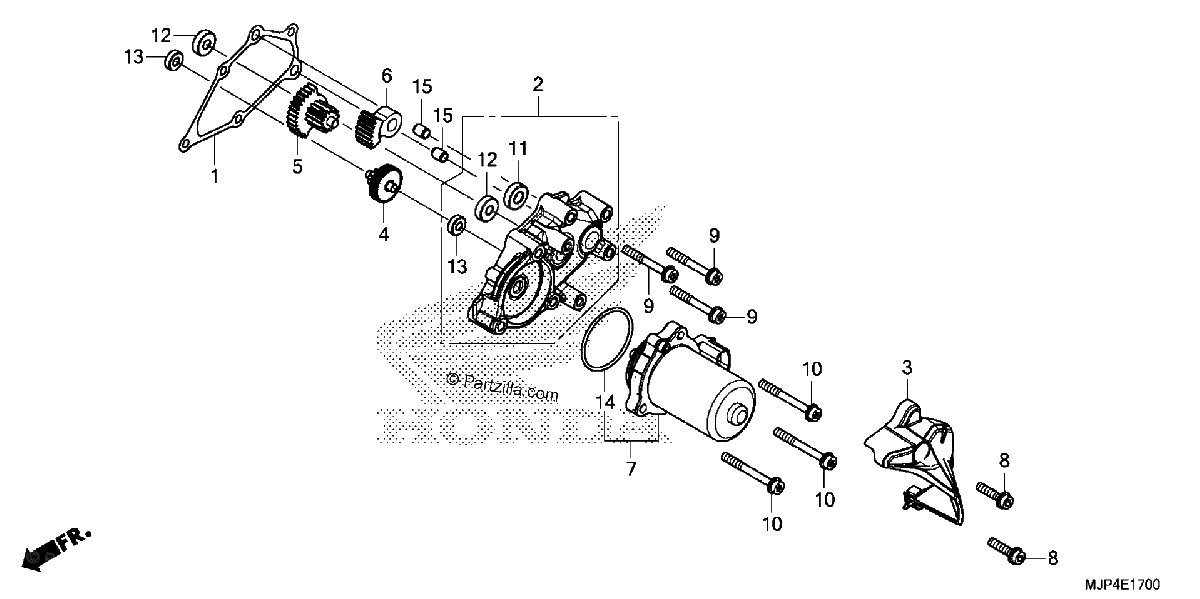

Diagrama de REDUCTION GEAR

Repuestos

#1
11397-MJP-G81
GASKET, REDUCTION COVER
$13.94¢6 969
1
#2
11520-MJP-G80
COVER, REDUCTION GEAR
$114.75¢57 375
1
#3
11530-MJP-G80
COVER, RATIO CONTROL MOTOR
$39.75¢19 875
1
#4
24615-MGE-D01
GEAR, SHIFT REDUCTION (45T/7T)
$86.79¢43 394
1
#5
24616-MGS-D21
GEAR, SHIFT REDUCTION (32T/13T)
$85.57¢42 787
1
#6
24617-MGE-D01
GEAR, SHIFT REDUCTION (42T)
$70.41¢35 206
1
#7
31300-MJP-G81
MOTOR Assembly., RATIO CONTROL
$385.64¢192 819
1
#8
90003-MJP-G50
BOLT, FLANGE SOCKET (6X25)
$3.36¢1 681
1
#9
90010-MJP-G80
BOLT, FLANGE TORX (6X45)
$5.86¢2 931
1
#10
90011-MJP-G80
BOLT, FLANGE TORX (6X53)
$6.15¢3 075
1
#11
91025-MGS-D21
BEARING, RADIAL BALL (699ZZ)
$14.14¢7 069
1
#12
91026-MGS-D21
BEARING, RADIAL BALL (607ZZ)
$12.59¢6 294
1
#13
91027-MGS-D21
BEARING, RADIAL BALL (696ZZ)
$11.19¢5 594
1
#14
91301-MJP-G81
O-RING, CONTROL MOTOR
$3.73¢1 863
1
#15
94301-08100
PIN, DOWEL (8X10)
$2.89¢1 444
1
