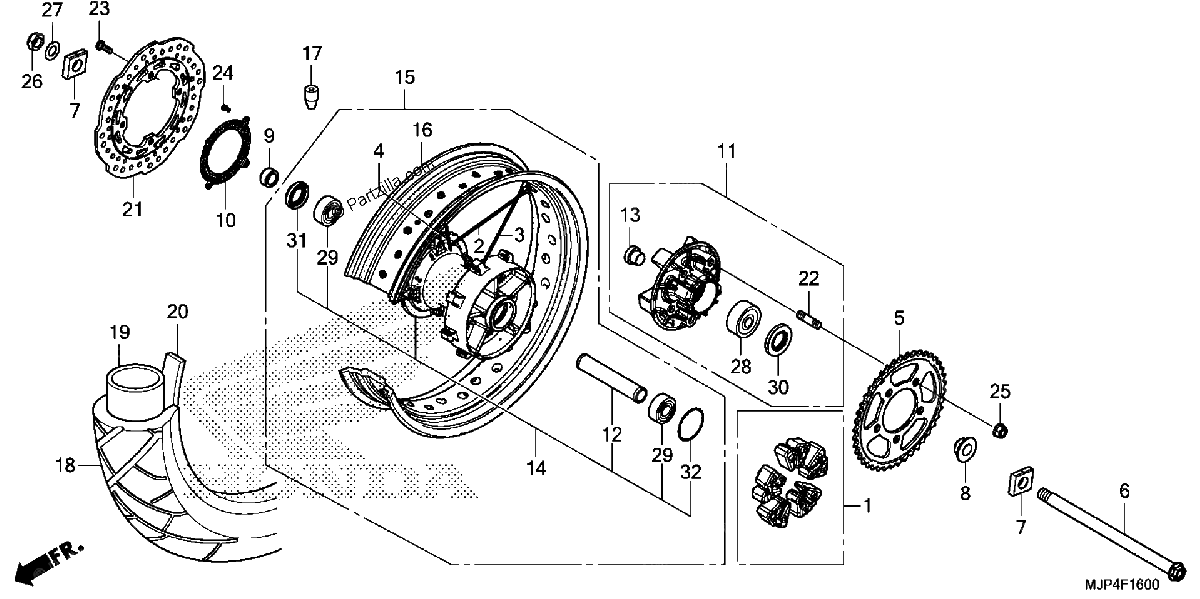

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
DAMPER SET, WHEEL
$50.35¢25 175
#2
SPOKE SET A, RR.
$6.64¢3 319
#3
SPOKE SET B, Rear. (L SIDE)
$6.64¢3 319
#4
SPOKE SET C, RR.
$6.64¢3 319
#5
SPROCKET, FINAL DRIVEN (42T)
$92.31¢46 156
#6
AXLE, RR. WHEEL
$66.64¢33 319
#7
COLLAR, RR. AXLE
$37.11¢18 556
#8
COLLAR, Rear WHEEL SIDE
$24.49¢12 244
#9
COLLAR, Rear BRAKE SIDE
$18.66¢9 331
#10
RING, RR. PULSER
$71.38¢35 688
#11
FLANGE SUB-ASSY., FINAL DRIVEN
$279.94¢139 969
#12
COLLAR, Rear AXLE DISTANCE
$30.10¢15 050
#13
COLLAR B, RR. WHEEL DISTANCE
$21.38¢10 688
#14
HUB SUB-Assembly., Rear.
$775.55¢387 775
#15
WHEEL SUB-ASSY., RR.
$2304.58¢1 152 288
#16
RIM, RR. WHEEL (18X4.00)
$892.69¢446 344
#17
WEIGHT, BALANCE (20G)
$9.80¢4 900
#17
WEIGHT, BALANCE (15G)
$9.80¢4 900
#18
TIRE, RR. (150/70R18 M/C 70H) (DUNLOP)
$311.84¢155 919
#19
TUBE, TIRE (DUNLOP)
$43.50¢21 750
#20
FLAP, TIRE (DUNLOP)
$6.23¢3 113
#21
DISK, Rear BRAKE (YUTAKA)
$417.99¢208 994
#22
BOLT, STUD (12X25)
$4.86¢2 431
#23
BOLT, BRAKE DISK (8X24)
$7.52¢3 762
#23
BOLT, BRAKE DISK (8X24) (TSUKIBOSHI)
$7.52¢3 762
#24
BOLT, TORX (5X10)
$3.43¢1 713
#25
NUT, FLANGE (12MM) (FUSE RASHI)
$4.68¢2 338
#26
NUT, U (18MM)
$8.26¢4 131
#27
WASHER (18X32X2)
$5.42¢2 713
#28
BEARING, RADIAL BALL (6322)
$46.48¢23 238
#29
BEARING, RADIAL BALL (6204UU)
$15.11¢7 556
#30
DUST SEAL (30X56X7.5)
$14.07¢7 038
#31
DUST SEAL (30X47X7.5)
$18.51¢9 256
#32
O-RING (55X2)
$3.65¢1 825
