SWINGARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

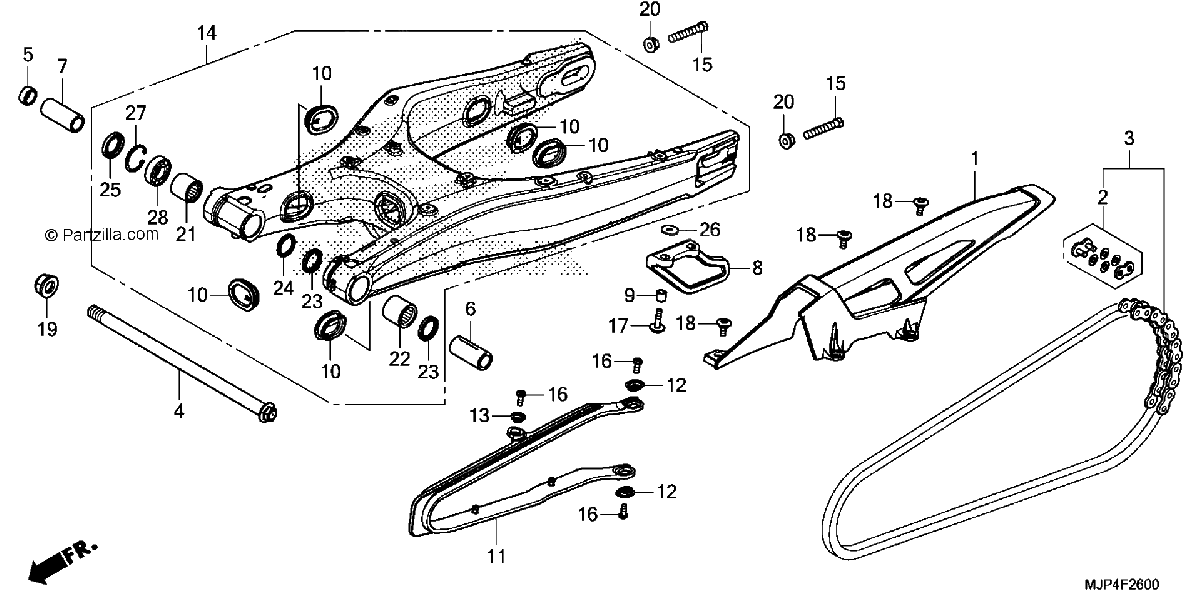

Diagrama de SWINGARM

Repuestos

#1
40510-MJP-G50
CASE, DRIVE CHAIN
$118.27¢59 133
1
#2
40535-MJM-D01
MASTER LINK SET (DAIDO)
$15.75¢7 877
1
#3
40540-MJP-G51
CHAIN, DRIVE (DID525HV3-130ZB)(DAIDO) (STANDARD LINK 124L)
$233.61¢116 805
1
#4
52101-MJP-G50
BOLT, SWINGARM PIVOT
$62.81¢31 406
1
#5
52141-MJP-G50
COLLAR A, PIVOT
$6.75¢3 375
1
#6
52142-MJP-G50
COLLAR, L PIVOT DISTANCE
$19.96¢9 982
1
#7
52143-MJP-G50
COLLAR, R. PIVOT DISTANCE
$19.40¢9 700
1
#8
52156-MJP-G50
GUARD, CHAIN
$23.83¢11 914
1
#9
52157-MJP-G50
COLLAR, CHAIN GUARD
$4.04¢2 018
1
#10
52161-KZZ-900
CAP, Rear SWINGARM
$3.15¢1 576
1
#11
52170-MJP-G50
SLIDER, CHAIN
$67.49¢33 747
1
#12
52171-KR6-000
WASHER, CHAIN SLIDER
$3.06¢1 529
1
#13
52171-MAN-620
WASHER, CHAIN SLIDER
$3.81¢1 903
1
#14
52200-MJP-G50
SWINGARM SUB-ASSY., RR.
$1580.36¢790 182
1
#15
90106-MCF-D00
BOLT, HEX. (8X50)
$2.86¢1 432
1
#16
90107-MJP-G50
SCREW, PAN (5X12)
$2.22¢1 110
1
#17
90108-KSV-J00
BOLT-WASHER (6X25)
$2.47¢1 236
1
#18
90114-MGE-D00
BOLT, SPECIAL (6X15)
$2.43¢1 213
1
#19
90305-MBZ-C50
NUT, SPECIAL U (16MM)
$9.97¢4 985
1
#19
90305-MCB-610
NUT, U (16MM)
$9.97¢4 985
1
#20
90309-357-000
NUT, HEX. (8MM)
$3.79¢1 897
1
#21
91063-MZ1-003
BEARING, NEEDLE (24X31X28)
$18.23¢9 114
1
#22
91071-MT7-003
BEARING, NEEDLE (NTN)
$28.69¢14 346
1
#23
91202-MAL-601
DUST SEAL (25X33X4)
$7.76¢3 881
1
#24
91203-GC8-003
OIL SEAL (24X31X3.5)
$11.24¢5 618
1
#25
91214-MAL-601
DUST SEAL (23X35X5)
$9.73¢4 865
1
#26
94103-06800
WASHER, PLAIN (6MM)
$0.92¢460
1
#27
94520-35000
CIRCLIP, INNER (35MM)
$2.30¢1 150
1
#28
96100-60030-10
BEARING, RADIAL BALL (6003)
$15.12¢7 561
1
