REAR BRAKE MASTER CYLINDER 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

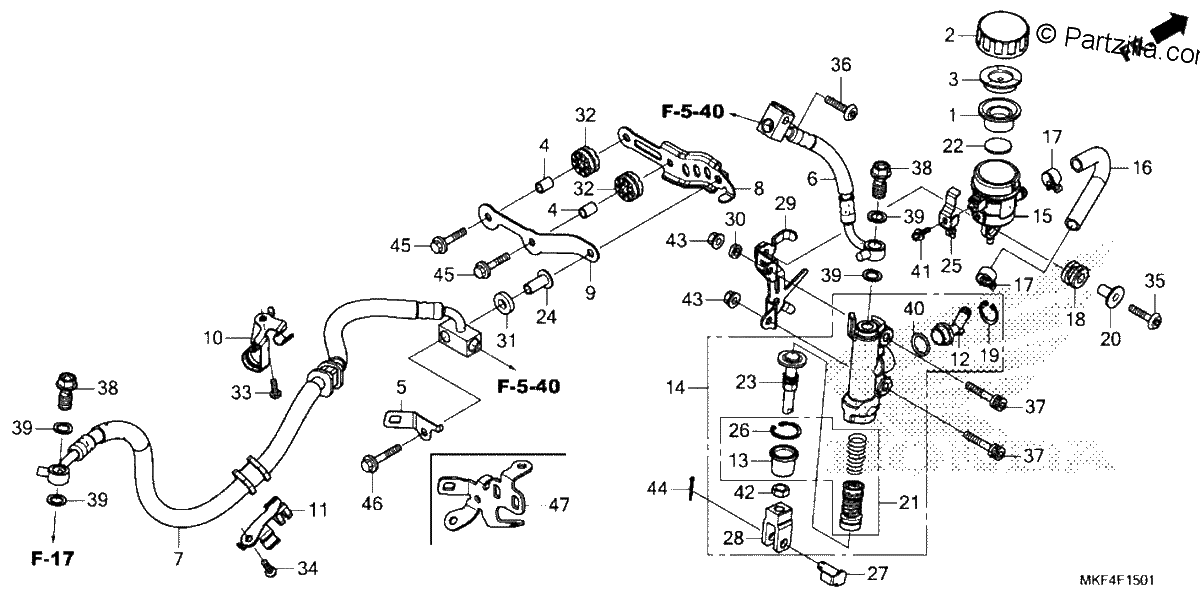

Diagrama de REAR BRAKE MASTER CYLINDER 2

Repuestos

#001
22888-MR7-006
DIAPHRAGM
$16.21¢8 108
1
#002
43513-MFL-671
CAP, OIL CUP
$47.13¢23 563
1
#002
22889-MR7-006
CAP, CLUTCH OIL CUP
$41.73¢20 867
1
#003
22890-MR7-006
PLATE, DIAPHRAGM
$12.54¢6 268
1
#004
33603-053-650
COLLAR
$2.04¢1 018
1
#006
43310-MKF-D41
HOSE A, RR. BRAKE
$48.48¢24 242
1
#007
43313-MKF-D41
HOSE D, RR. BRAKE
$78.28¢39 140
1
#008
43315-MKF-D40
STAY B, RR. BRAKE HOSE
$14.12¢7 061
1
#009
43316-MKF-D40
STAY C, RR. BRAKE HOSE
$7.19¢3 594
1
#010
43317-MKF-D40
CLAMP A, RR. BRAKE HOSE
$9.02¢4 508
1
#011
43318-MKF-D40
CLAMP B, RR. BRAKE HOSE
$9.02¢4 508
1
#012
43503-MFL-006
CONNECTOR, MASTER CYLINDER
$4.96¢2 478
1
#013
43504-MB2-006
BOOT
$10.80¢5 399
1
#014
43510-MKF-D41
MASTER CYLINDER SUB-ASSY., RR.BRAKE (NISSIN)
$227.91¢113 953
1
#015
43511-MFL-006
CUP, OIL
$24.92¢12 460
1
#016
43512-MFL-006
HOSE, RR. MASTER CYLINDER
$13.12¢6 561
1
#017
43514-KS6-701
CLAMP, MASTER CYLINDER OIL HOSE
$14.02¢7 009
1
#018
43516-HA2-000
RUBBER, OIL CUP MOUNTING
$4.99¢2 496
1
#019
43517-KS6-701
CIRCLIP, Rear MASTER CYLINDER
$4.25¢2 128
1
#020
43517-MFL-880
COLLAR (6.3X14)
$4.36¢2 179
1
#021
43520-MB2-315
PISTON SET, MASTER CYLINDER (NISSIN)
$49.67¢24 834
1
#022
43523-MFL-006
FLOAT
$3.71¢1 857
1
#023
43530-MM5-006
ROD, PUSH
$32.80¢16 399
1
#024
45129-MAE-000
COLLAR, FR. BRAKE HOSE
$8.91¢4 456
1
#025
45535-MR8-901
PLATE, STOP
$6.08¢3 042
1
#026
46182-MEL-D21
CIRCLIP
$2.30¢1 150
1
#027
46503-MFL-000
PIN, BRAKE ROD
$15.71¢7 855
1
#028
46504-MFL-000
JOINT, BRAKE ROD
$15.55¢7 774
1
#029
50608-MKF-D40
STAY, RR. MASTER CUP
$14.21¢7 107
1
#030
50618-KE8-000
COLLAR (6.5X11X3)
$3.36¢1 679
1
#031
77218-GB2-720
RUBBER, SEAT HINGE
$3.16¢1 581
1
#032
84703-425-000
RUBBER, TAILLIGHT MOUNTING
$5.27¢2 633
1
#033
90103-MKF-D60
SCREW, PAN (5X20)
$2.89¢1 443
1
#034
90113-K40-F00
SCREW, PAN (5X15)
$3.21¢1 604
1
#035
90115-KTB-000
BOLT, SPECIAL (6X25)
$2.64¢1 322
1
#036
90125-MKF-D40
BOLT, SPECIAL (6X25)
$2.86¢1 432
1
#037
90128-MFL-000
BOLT, SOCKET (6X32)
$2.51¢1 254
1
#038
90145-MS9-612
BOLT, OIL (10X22)
$8.18¢4 088
1
#039
90545-300-000
WASHER, OIL BOLT
$4.46¢2 231
1
#040
91212-422-006
O-RING (14.8X2.4)
$3.04¢1 518
1
#041
93893-04012-07
SCREW-WASHER (4X12)
$1.59¢793
1
#041
93893-04012-17
SCREW-WASHER (4X12)
$1.59¢793
1
#042
94002-08000-0S
NUT, HEX. (8MM)
$1.47¢736
1
#043
94050-06000
NUT, FLANGE (6MM)
$0.74¢368
1
#044
94201-20150
PIN, SPLIT (2.0X15)
$1.23¢615
1
#045
96001-06025-07
BOLT, FLANGE (6X25)
$1.59¢793
1
#046
96001-06032-07
BOLT, FLANGE (6X32)
$1.83¢914
1
#047
38515-MKF-D60
STAY, RR. CUSHION WIRE CONNECTOR
$14.56¢7 280
1
