CLUTCH 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

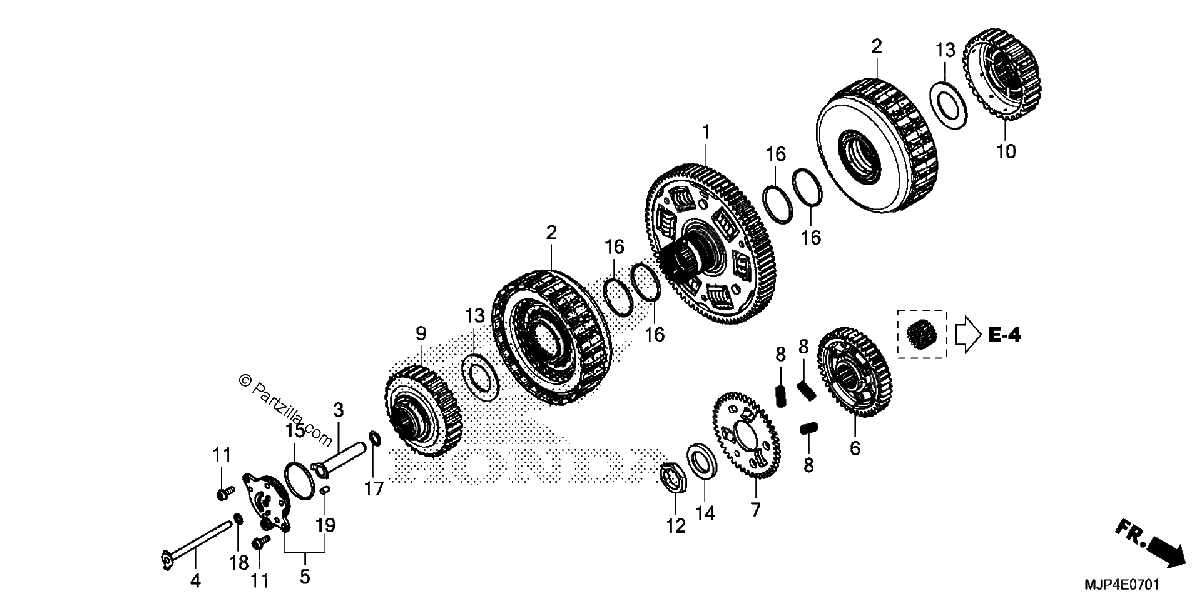

Diagrama de CLUTCH 2

Repuestos

#1
22100-HL4-003
GEAR, PRIMARY DRIVEN (81T)
$768.82¢384 410
1
#2
22500-MJP-G81
CLUTCH ASSY.
$577.39¢288 696
1
#3
22711-MJP-G80
PIPE A, FEED
$21.15¢10 574
1
#4
22712-MJP-G80
PIPE B, FEED
$23.23¢11 615
1
#5
22720-MJP-G80
GUIDE, FEED PIPE
$89.83¢44 913
1
#6
23103-MJP-G80
GEAR, PRIMARY DRIVE (43T)
$123.73¢61 864
1
#7
23104-HL4-000
SUB-GEAR, PRIMARY (43T)
$74.90¢37 450
1
#8
23115-MW4-000
SPRING, PRIMARY DAMPER
$2.74¢1 368
1
#9
23405-HL4-000
GUIDE, FIRST CLUTCH GEAR (30T)
No Disponible
1
#10
23406-HL4-000
GUIDE, SECOND CLUTCH GEAR (30T)
$105.48¢52 739
1
#11
90089-KAS-900
BOLT, FLANGE SOCKET (5X14)
$1.64¢822
1
#12
90201-HL4-000
NUT, LOCK (22MM)
$6.11¢3 053
1
#13
90403-HL4-000
WASHER (29.5X50X2)
$5.55¢2 777
1
#14
90404-HL4-000
WASHER (22X37X5)
$8.65¢4 324
1
#15
91302-PA9-003
O-RING (39.8X2.2) (ARAI)
$5.98¢2 990
1
#16
91302-RGC-003
O-RING (35X2.2)
$3.36¢1 679
1
#17
91308-PY4-003
O-RING (10.7X1.9)
$1.44¢719
1
#18
91315-PC9-004
O-RING (6X1.5) (N0K)
$2.09¢1 047
1
#19
94302-05080
PIN B, DOWEL (5X8)
$2.66¢1 328
1
#19
94303-05080
PIN, DOWEL (5X8)
$2.66¢1 328
1
