CYLINDER HEAD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

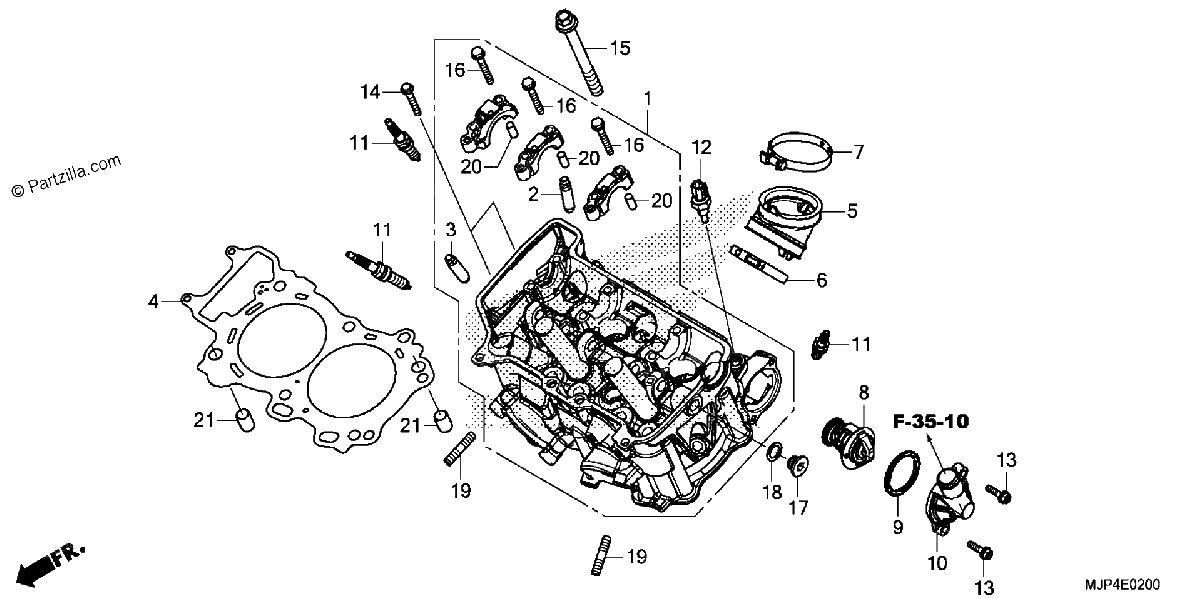

Diagrama de CYLINDER HEAD

Repuestos

#1
12010-MJP-G50
CYLINDER HEAD ASSY.
$2143.46¢1 071 731
1
#2
12204-HL4-305
GUIDE, VALVE (OVER SIZE)
$21.76¢10 881
1
#3
12205-HL4-305
GUIDE, EX VALVE (OVER SIZE)
$18.50¢9 250
1
#4
12251-MJP-G51
GASKET, CYLINDER HEAD
$60.13¢30 063
1
#5
16211-MJP-G50
INSULATOR, THROTTLE BODY
$28.10¢14 050
1
#6
16218-MCA-000
BAND, INSULATOR
$8.84¢4 419
1
#7
16218-MJP-G50
BAND, INSULATOR ENGINE
$12.85¢6 425
1
#8
19300-MCJ-003
THERMOSTAT
$60.29¢30 144
1
#9
19305-KV3-010
RUBBER, THERMOSTAT
$7.35¢3 675
1
#10
19321-MJP-G50
COVER, THERMOSTAT
$37.66¢18 831
1
#11
31909-MJP-G51
SPARK PLUG (SILMAR8A9S) (NGK)
$34.19¢17 094
1
#12
37870-MGS-D31
SENSOR ASSY., WATER TEMPERATURE
$58.26¢29 131
1
#13
90001-MGZ-J00
BOLT, FLANGE SOCKET (6X22)
$0.70¢350
1
#14
90006-GHB-710
BOLT, FLANGE (6X40) (NSHF)
$2.48¢1 238
1
#15
90007-HL4-003
BOLT-WASHER (12X118)
$10.32¢5 163
1
#16
90017-MA6-000
BOLT, FLANGE (6X45.5)
$4.06¢2 031
1
#17
90032-MJP-G50
BOLT, SEALING (14MM)
$8.69¢4 344
1
#18
90544-KF0-000
WASHER, SEALING (14MM)
$3.95¢1 975
1
#19
92900-08025-0B
BOLT, STUD (8X25)
$2.82¢1 412
1
#20
94301-08200
PIN, DOWEL (8X20)
$2.89¢1 444
1
#21
94301-14200
PIN, DOWEL (14X20)
$2.94¢1 469
1
