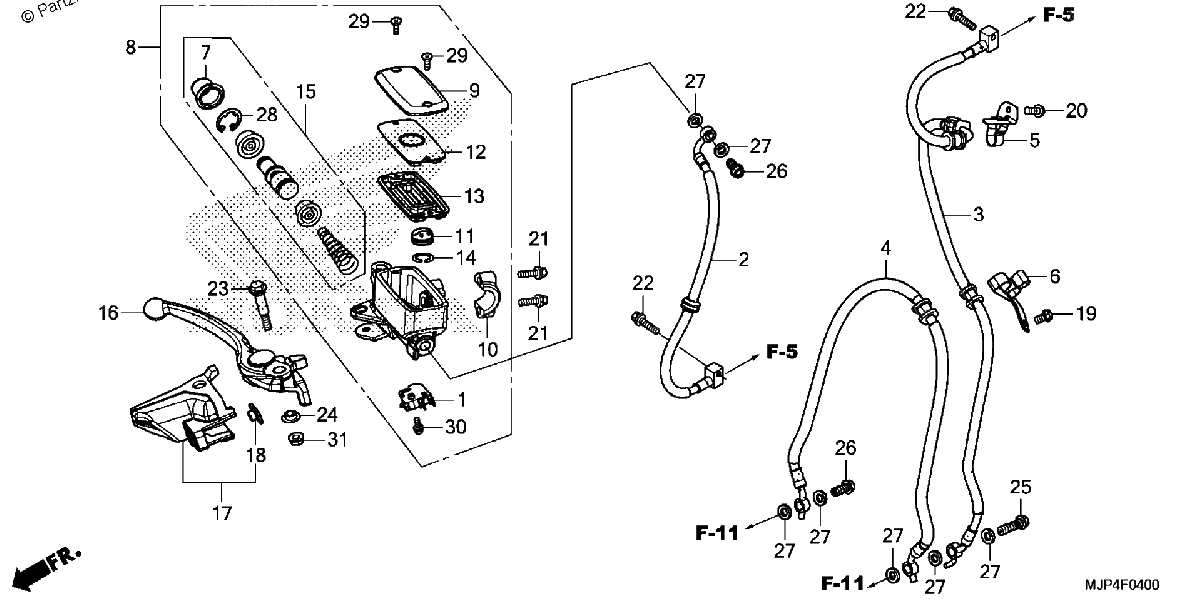

FRONT BRAKE MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
SWITCH Assembly., Front STOP (ALPS)
$21.49¢10 744
#2
HOSE A, FR. BRAKE
$70.39¢35 194
#3
HOSE D, FR. BRAKE
$87.30¢43 650
#4
HOSE E, Front BRAKE
$78.36¢39 181
#5
CLAMP, FR. BRAKE HOSE
$13.05¢6 525
#6
CLAMP, Front BRAKE HOSE (LOWER)
$13.05¢6 525
#7
BOOT
$14.24¢7 119
#8
MASTER CYLINDER SUB-Assembly., Front BRAKE (COO) (NISSIN)
$334.91¢167 456
#9
CAP, MASTER CYLINDER (NISSIN)
$26.02¢13 013
#10
HOLDER, MASTER CYLINDER
$15.74¢7 869
#11
SEPARATOR
$9.24¢4 619
#12
PLATE, DIAPHRAGM
$12.36¢6 181
#13
DIAPHRAGM
$17.68¢8 838
#14
RING
$3.65¢1 825
#15
MASTER CYLINDER SET
$55.46¢27 731
#16
LEVER Assembly., Right HANDLE
$52.47¢26 237
#16
LEVER ASSY., R. HANDLE (COO)
$52.47¢26 237
#17
HOLDER, Right KNUCKLE
$19.52¢9 763
#18
NUT, SPECIAL (6MM)
$3.65¢1 825
#19
BOLT, FLANGE (6X10)
$5.76¢2 881
#20
BOLT, FLANGE (6X14)
$2.99¢1 494
#21
BOLT, FLANGE (6X22)
$2.99¢1 494
#22
BOLT, FLANGE (6X25)
$2.99¢1 494
#23
BOLT, HANDLE LEVER
$8.89¢4 444
#24
COLLAR (6X4)
$4.15¢2 075
#25
BOLT, OIL (10X34)
$9.36¢4 681
#26
BOLT, OIL (10X22)
$8.89¢4 444
#27
WASHER, OIL BOLT
$4.85¢2 425
#28
CIRCLIP
$3.10¢1 550
#29
SCREW, FLAT (4X12)
$1.16¢581
#29
SCREW, FLAT (4X12)
$1.16¢581
#30
SCREW-WASHER (4X12)
$1.72¢862
#30
SCREW-WASHER (4X12)
$1.72¢862
#31
NUT, FLANGE (6MM)
$0.80¢400
