SIDE COVER REAR CARRIER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

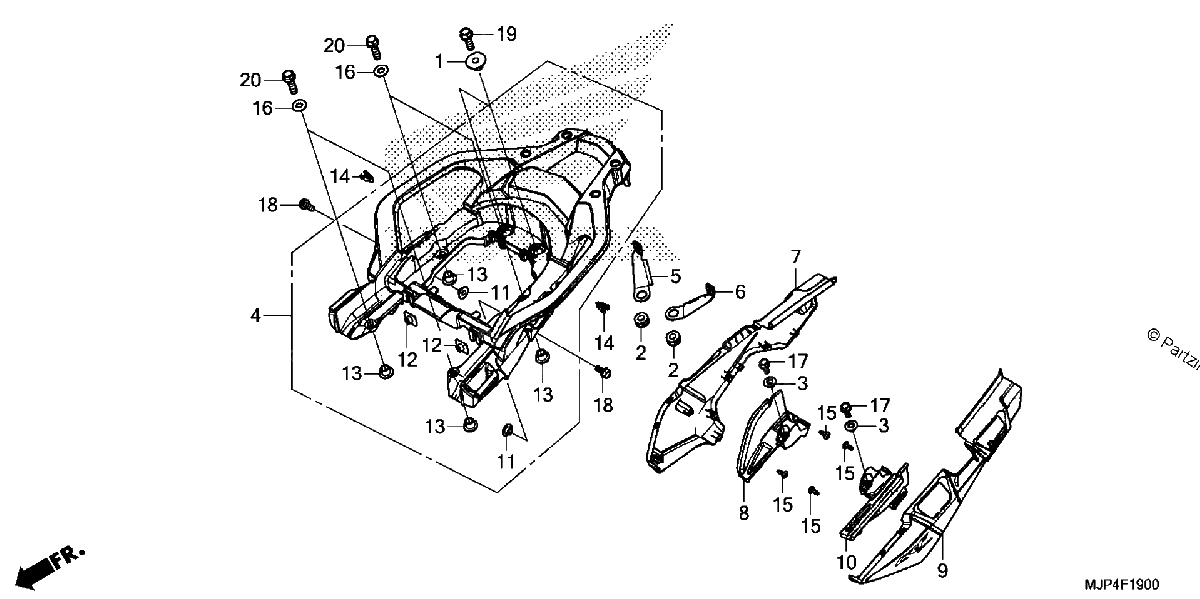

Diagrama de SIDE COVER REAR CARRIER

Repuestos

#1
18422-MBG-610
COLLAR, EX. MOUNTING
$5.46¢2 731
1
#2
80103-MG2-000
CUSHION, RR. FENDER
$3.39¢1 696
1
#3
80118-MFJ-D00
COLLAR, FENDER
$4.62¢2 311
1
#4
81300-MJP-G50ZA
CARRIER Assembly., Rear. NH105 (MAT BLACK)
$739.30¢369 650
1
#5
81301-MJP-G50
STAY, R. RR. CARRIER
$15.87¢7 935
1
#6
81306-MJP-G50
STAY, L. RR. CARRIER
$14.92¢7 458
1
#7
83610-MJP-DA0ZA
COVER SET, R. SIDE (TYPE1) (WL)
$166.04¢83 018
1
#8
83620-MJP-G50
COVER, Right SIDE (INNER)
$8.04¢4 019
1
#9
83710-MJP-DA0ZA
COVER SET, L. SIDE (TYPE1) (WL)
$166.04¢83 018
1
#10
83720-MJP-G50
COVER, L SIDE (INNER)
$9.38¢4 692
1
#11
90510-MJP-G50
COLLAR (7.6X4)
$2.96¢1 478
1
#12
90303-HA0-680
NUT, SPECIAL (6X7)
$4.28¢2 139
1
#13
90450-KG8-000
COLLAR (8MM)
$5.32¢2 662
1
#14
90666-SDA-A01
CLIP, SNAP FITTING (PO)(NATURAL)
$0.93¢466
1
#15
93903-34310
SCREW, TAPPING (4X12)
$0.98¢489
1
#16
94101-08000
WASHER, PLAIN (8MM)
$0.98¢489
1
#17
95701-06014-04
BOLT, FLANGE (6X14)
$1.17¢586
1
#18
95701-06014-08
BOLT, FLANGE (6X14)
$1.92¢960
1
#19
95701-08030-00
BOLT, FLANGE (8X30)
$1.33¢667
1
#20
96400-08028-08
BOLT, FLANGE (8X28)
$1.44¢719
1
