GEARSHIFT DRUM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

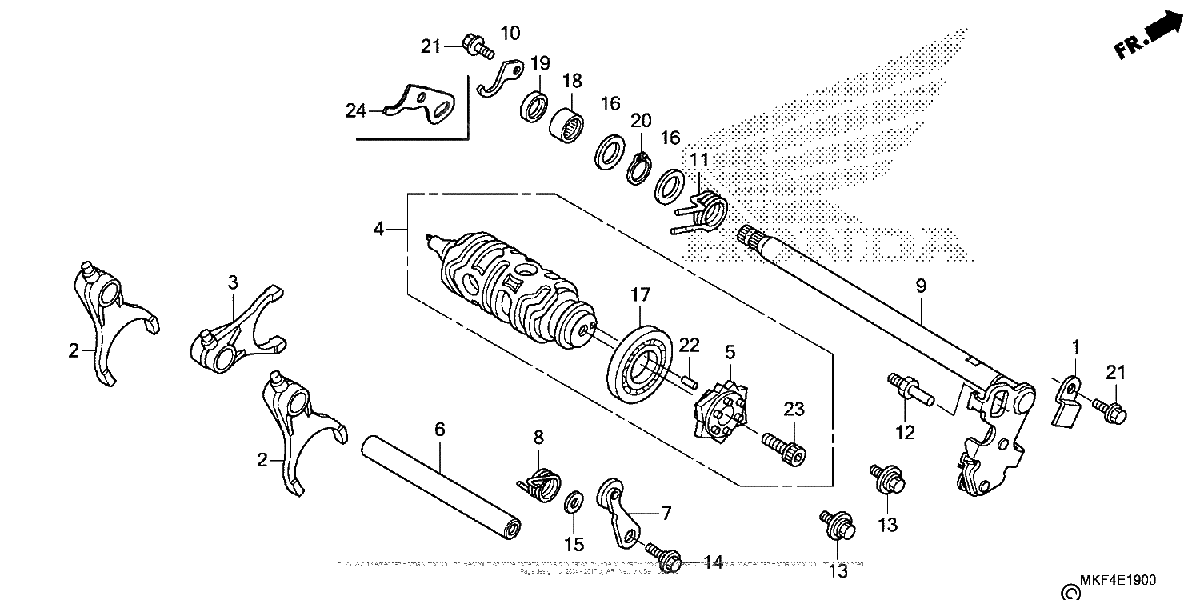

Diagrama de GEARSHIFT DRUM

Repuestos

#001
14623-MV1-000
PLATE, TENSIONER SETTING
$5.44¢2 720
1
#1
14623-MV1-000
PLATE, TENSIONER SETTING
$5.44¢2 720
1
#002
24211-MFL-000
FORK, GEARSHIFT
$69.32¢34 661
1
#2
24211-MFL-000
FORK, GEARSHIFT
$69.32¢34 661
1
#003
24212-MFL-000
FORK, CENTER GEARSHIFT
$69.32¢34 661
1
#3
24212-MFL-000
FORK, CENTER GEARSHIFT
$69.32¢34 661
1
#4
24310-MKF-D40
DRUM, GEARSHIFT
$197.54¢98 768
1
#004
24310-MKF-D40
DRUM, GEARSHIFT
$197.54¢98 768
1
#5
24315-MW0-791
CENTER, SHIFT DRUM
$45.71¢22 856
1
#005
24315-MW0-791
CENTER, SHIFT DRUM
$45.71¢22 856
1
#6
24321-MFL-000
SHAFT, GEARSHIFT FORK
$27.05¢13 524
1
#006
24321-MFL-000
SHAFT, GEARSHIFT FORK
$27.05¢13 524
1
#7
24430-MFL-000
STOPPER, GEARSHIFT DRUM
$16.96¢8 481
1
#007
24430-MFL-000
STOPPER, GEARSHIFT DRUM
$16.96¢8 481
1
#8
24435-MEL-000
SPRING, GEARSHIFT DRUM STOPPER
$2.79¢1 397
1
#008
24435-MEL-000
SPRING, GEARSHIFT DRUM STOPPER
$2.79¢1 397
1
#9
24610-MKF-D40
SPINDLE, GEARSHIFT
$123.58¢61 789
1
#009
24610-MKF-D40
SPINDLE, GEARSHIFT
$123.58¢61 789
1
#010
24612-MAL-600
PLATE, SPINDLE
$11.56¢5 779
1
#10
24612-MAL-600
PLATE, SPINDLE
$11.56¢5 779
1
#11
24651-MBB-000
SPRING, SHIFT RETURN
$7.58¢3 789
1
#011
24651-MBB-000
SPRING, SHIFT RETURN
$7.58¢3 789
1
#12
24652-035-000
PIN, SHIFT RETURN SPRING
$4.47¢2 237
1
#012
24652-035-000
PIN, SHIFT RETURN SPRING
$4.47¢2 237
1
#013
90021-MM5-000
BOLT-WASHER (6X12)
$5.70¢2 852
1
#13
90021-MM5-000
BOLT-WASHER (6X12)
$5.70¢2 852
1
#14
90022-MG8-000
PIVOT, SHIFT DRUM STOPPER ARM
$2.94¢1 472
1
#014
90022-MG8-000
PIVOT, SHIFT DRUM STOPPER ARM
$2.94¢1 472
1
#15
90417-360-000
WASHER, DRUM STOPPER
$2.06¢1 029
1
#015
90417-360-000
WASHER, DRUM STOPPER
$2.06¢1 029
1
#16
90451-155-000
WASHER (14MM)
$4.22¢2 110
1
#016
90451-155-000
WASHER (14MM)
$4.22¢2 110
1
#017
91008-MFJ-D01
BEARING, SPECIAL BALL (6500)
$19.63¢9 815
1
#17
91008-MFJ-D01
BEARING, SPECIAL BALL (6500)
$19.63¢9 815
1
#018
91106-MCF-003
BEARING, NEEDLE (14X22X16)
$13.41¢6 704
1
#18
91106-MCF-003
BEARING, NEEDLE (14X22X16)
$13.41¢6 704
1
#19
91203-KA4-771
OIL SEAL (14X22X5) (NOK)
$4.25¢2 128
1
#019
91203-KA4-771
OIL SEAL (14X22X5) (NOK)
$4.25¢2 128
1
#020
94510-14000
CIRCLIP, OUTER (14MM)
$1.21¢604
1
#20
94510-14000
CIRCLIP, OUTER (14MM)
$1.21¢604
1
#21
95701-06014-00
BOLT, FLANGE (6X14)
$1.13¢564
1
#021
95701-06014-00
BOLT, FLANGE (6X14)
$1.13¢564
1
#022
96220-40080
ROLLER (4X8)
$0.60¢299
1
#22
96220-40080
ROLLER (4X8)
$0.60¢299
1
#23
96600-08020-10
BOLT, SOCKET (8X20)
$2.53¢1 265
1
#023
96600-08020-10
BOLT, SOCKET (8X20)
$2.53¢1 265
1
