TRANSMISSION COUNTERSHAFT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

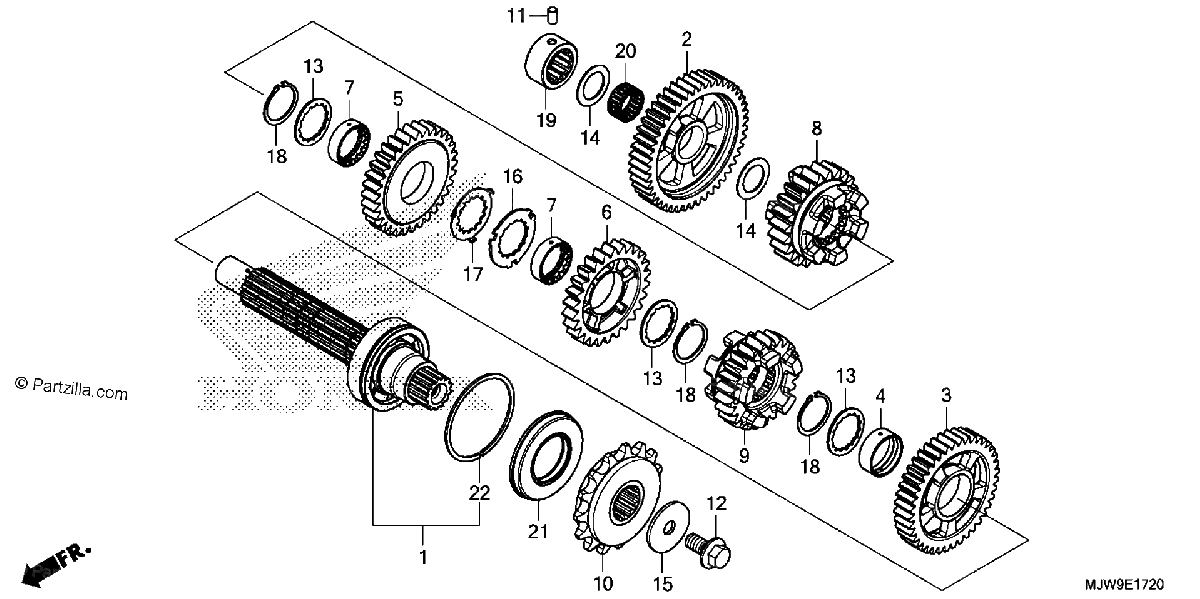

Diagrama de TRANSMISSION COUNTERSHAFT

Repuestos

#001
23220-MGZ-J01
COUNTERSHAFT
$155.31¢77 654
1
#1
23220-MGZ-J01
COUNTERSHAFT
$155.31¢77 654
1
#2
23421-MGZ-J00
GEAR, COUNTERSHAFT FIRST (46T)
$59.88¢29 940
1
#002
23421-MGZ-J00
GEAR, COUNTERSHAFT FIRST (46T)
$59.88¢29 940
1
#3
23441-MGZ-J00
GEAR, COUNTERSHAFT SECOND (40T)
$63.49¢31 746
1
#003
23441-MGZ-J00
GEAR, COUNTERSHAFT SECOND (40T)
$63.49¢31 746
1
#004
23442-ML7-000
COLLAR (28MM)
$33.09¢16 543
1
#4
23442-ML7-000
COLLAR (28MM)
$33.09¢16 543
1
#5
23461-MGZ-J00
GEAR, COUNTERSHAFT THIRD (32T)
$57.91¢28 957
1
#005
23461-MGZ-J00
GEAR, COUNTERSHAFT THIRD (32T)
$57.91¢28 957
1
#006
23481-MGZ-J00
GEAR, COUNTERSHAFT FOURTH (26T)
$52.58¢26 289
1
#6
23481-MGZ-J00
GEAR, COUNTERSHAFT FOURTH (26T)
$52.58¢26 289
1
#7
23482-MV9-670
COLLAR, SPLINE (28X31X9)
$22.71¢11 356
1
#007
23482-MV9-670
COLLAR, SPLINE (28X31X9)
$22.71¢11 356
1
#8
23501-MGZ-J00
GEAR, COUNTERSHAFT FIFTH (23T)
$81.68¢40 842
1
#008
23501-MGZ-J00
GEAR, COUNTERSHAFT FIFTH (23T)
$81.68¢40 842
1
#9
23521-MGZ-J00
GEAR, COUNTERSHAFT SIXTH (24T)
$77.07¢38 537
1
#009
23521-MGZ-J00
GEAR, COUNTERSHAFT SIXTH (24T)
$77.07¢38 537
1
#10
23801-MGZ-J01
SPROCKET, DRIVE (15T)
$20.24¢10 120
1
#010
23801-MGZ-J01
SPROCKET, DRIVE (15T)
$20.24¢10 120
1
#11
24261-283-000
PIN, GEARSHIFT FORK GUIDE
$4.70¢2 352
1
#011
24261-283-000
PIN, GEARSHIFT FORK GUIDE
$4.70¢2 352
1
#12
90037-422-003
BOLT, SPECIAL (10MM)
$8.18¢4 088
1
#012
90037-422-003
BOLT, SPECIAL (10MM)
$8.18¢4 088
1
#013
90452-MR7-000
WASHER, SPLINE (28X34X1.5)
$7.50¢3 749
1
#13
90452-MR7-000
WASHER, SPLINE (28X34X1.5)
$7.50¢3 749
1
#014
90454-428-000
WASHER, THRUST (20MM)
$3.15¢1 576
1
#14
90454-428-000
WASHER, THRUST (20MM)
$3.15¢1 576
1
#015
90459-438-000
WASHER (10.2MM)
$6.51¢3 254
1
#15
90459-438-000
WASHER (10.2MM)
$6.51¢3 254
1
#16
90463-MR7-000
WASHER, SPLINE (28MM)
$12.52¢6 262
1
#016
90463-MR7-000
WASHER, SPLINE (28MM)
$12.52¢6 262
1
#017
90464-MR7-000
WASHER, LOCK (28MM)
$12.52¢6 262
1
#17
90464-MR7-000
WASHER, LOCK (28MM)
$12.52¢6 262
1
#18
90603-MN4-000
CIRCLIP (28MM)
$4.17¢2 087
1
#018
90603-MN4-000
CIRCLIP (28MM)
$4.17¢2 087
1
#19
91023-MM4-003
BEARING, NEEDLE (20X34X16.8) (NTN)
$39.55¢19 774
1
#019
91023-MM4-003
BEARING, NEEDLE (20X34X16.8) (NTN)
$39.55¢19 774
1
#20
91026-MGZ-J00
BEARING, NEEDLE (20X24X11)
$15.01¢7 504
1
#020
91026-MGZ-J00
BEARING, NEEDLE (20X24X11)
$15.01¢7 504
1
#21
91207-KT8-003
OIL SEAL (34X62X8)
$13.65¢6 825
1
#021
91207-KT8-003
OIL SEAL (34X62X8)
$13.65¢6 825
1
#22
94560-62200
RING, SNAP (62MM)
$3.92¢1 961
1
#022
94560-62200
RING, SNAP (62MM)
$3.92¢1 961
1
