TURN SIGNAL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

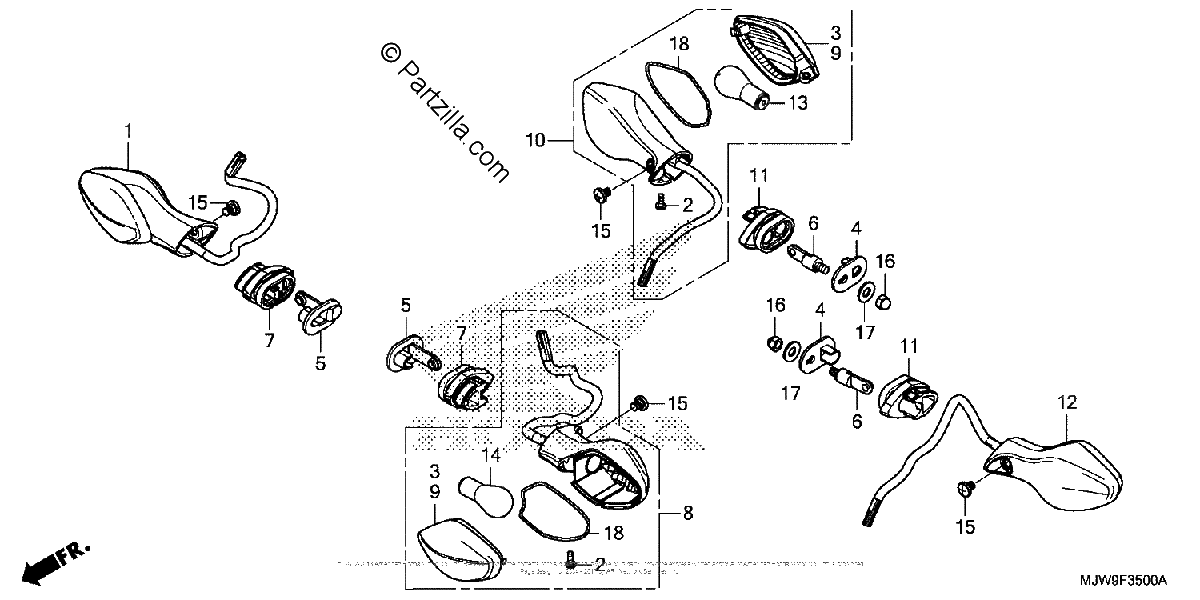

Diagrama de TURN SIGNAL

Repuestos

#001
33400-MGZ-326
TURN SIGNAL ASSY., R. FR. (12V 21W/5W) (COO)
$21.31¢10 656
1
#1
33400-MGZ-326
TURN SIGNAL ASSY., R. FR. (12V 21W/5W) (COO)
$21.31¢10 656
1
#001
33400-MGZ-336
TURN SIGNAL Right, Front.
$21.31¢10 656
1
#2
33402-MGS-D31
SCREW, SPECIAL (4X10)
$1.41¢706
1
#002
33402-MGS-D31
SCREW, SPECIAL (4X10)
$1.41¢706
1
#3
33404-MGS-J32
LENS, Right TURN SIGNAL (Right Front./L Rear.)
$3.65¢1 825
1
#003
33404-MGS-J32
LENS, Right TURN SIGNAL (Right Front./L Rear.)
$3.65¢1 825
1
#004
33411-MGZ-J00
PLATE, TURN SIGNAL
$1.80¢900
1
#4
33411-MGZ-J00
PLATE, TURN SIGNAL
$1.80¢900
1
#5
33412-MGS-D30
STAY, TURN SIGNAL
$9.35¢4 675
1
#005
33412-MGS-D30
STAY, TURN SIGNAL
$9.35¢4 675
1
#6
33412-MGZ-J00
STAY, TURN SIGNAL
$20.24¢10 119
1
#006
33412-MGZ-J00
STAY, TURN SIGNAL
$20.24¢10 119
1
#7
33413-MGZ-J40
RUBBER, TURN SIGNAL MOUNTING
$7.64¢3 819
1
#007
33413-MGZ-J40
RUBBER, TURN SIGNAL MOUNTING
$7.64¢3 819
1
#008
33450-MGZ-326
TURN SIGNAL Assembly., L Front. (12V 21W/5W) (COO)
$73.41¢36 706
1
#8
33450-MGZ-326
TURN SIGNAL Assembly., L Front. (12V 21W/5W) (COO)
$73.41¢36 706
1
#008
33450-MGZ-336
TURN SIGNAL L, Front.
$73.41¢36 706
1
#9
33454-MGS-J32
LENS, L. TURN SIGNAL
$3.65¢1 825
1
#009
33454-MGS-J32
LENS, L. TURN SIGNAL
$3.65¢1 825
1
#010
33600-MJW-J02
LIGHT Assembly., Rear.
$18.82¢9 413
1
#10
33600-MJW-J01
TURN SIGNAL ASSY., R. RR. (12V 21W)
$18.82¢9 413
1
#010
33600-MJW-J01
TURN SIGNAL ASSY., R. RR. (12V 21W)
$18.82¢9 413
1
#11
33613-MGZ-J00
RUBBER, TURN SIGNAL MOUNTING
$8.71¢4 356
1
#011
33613-MGZ-J00
RUBBER, TURN SIGNAL MOUNTING
$8.71¢4 356
1
#12
33650-MJW-J01
TURN SIGNAL ASSY., L. RR. (12V 21W)
$22.15¢11 075
1
#012
33650-MJW-J01
TURN SIGNAL ASSY., L. RR. (12V 21W)
$22.15¢11 075
1
#012
33650-MJW-J02
LIGHT Assembly., Rear.
$22.15¢11 075
1
#13
34904-MGZ-J01
BULB, TURN SIGNAL LIGHT (P21W)(LIFE ELEX)
$20.69¢10 344
1
#013
34904-MGZ-J01
BULB, TURN SIGNAL LIGHT (P21W)(LIFE ELEX)
$20.69¢10 344
1
#014
34906-MGZ-J01
BULB, TAILLIGHT (P21/5W) (LIFE ELEX)
$8.13¢4 063
1
#14
34906-MGZ-J01
BULB, TAILLIGHT (P21/5W) (LIFE ELEX)
$8.13¢4 063
1
#015
90380-MGZ-J00
SCREW, SPECIAL (6X8)
$0.64¢319
1
#15
90380-MGZ-J00
SCREW, SPECIAL (6X8)
$0.64¢319
1
#16
94021-06000-0S
NUT, CAP (6MM)
$2.34¢1 169
1
#016
94021-06000-0S
NUT, CAP (6MM)
$2.34¢1 169
1
#16
94021-06020
NUT, CAP (6MM)
$2.34¢1 169
1
#016
94021-06020
NUT, CAP (6MM)
$2.34¢1 169
1
#16
94021-06020-0S
NUT, CAP (6MM)
$2.34¢1 169
1
#016
94021-06020-0S
NUT, CAP (6MM)
$2.34¢1 169
1
#016
94022-06020
NUT, CAP (6MM)
$2.34¢1 169
1
#16
94022-06020
NUT, CAP (6MM)
$2.34¢1 169
1
#017
94101-06700
WASHER, PLAIN (6MM)
$1.21¢606
1
#17
94101-06700
WASHER, PLAIN (6MM)
$1.21¢606
1
#18
33405-MKA-D81
SEAL, GASKET
$0.70¢350
1
#018
33405-MKA-D81
SEAL, GASKET
$0.70¢350
1
