HANDLEBAR TOP BRIDGE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

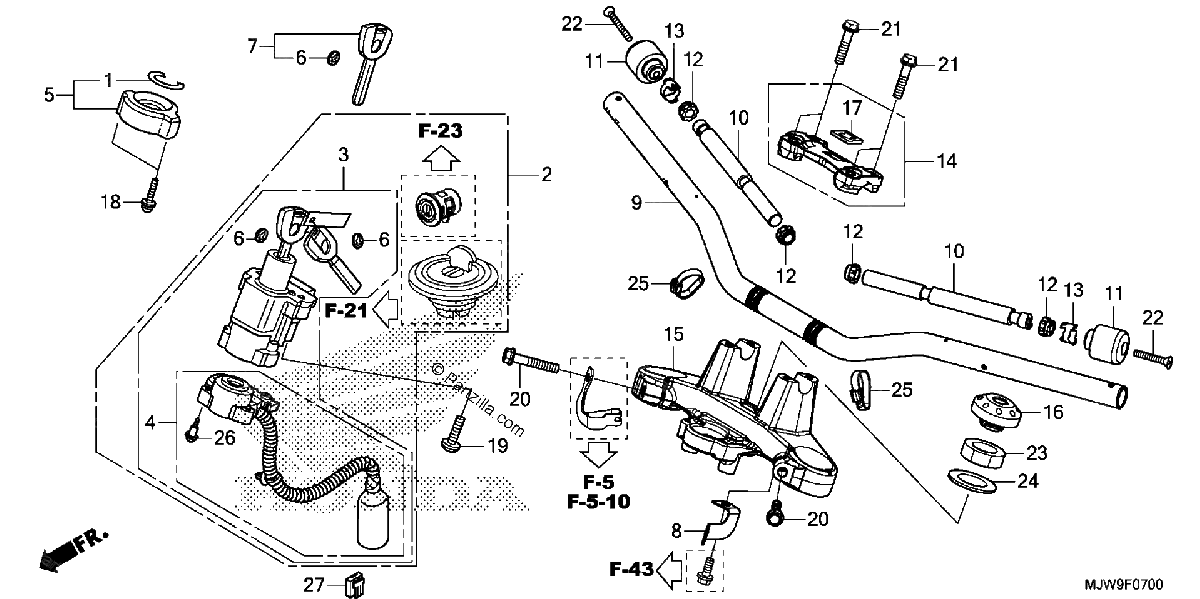

Diagrama de HANDLEBAR TOP BRIDGE

Repuestos

#1
30433-MBW-602
SEAL, IGNITION SWITCH
$3.36¢1 679
1
#001
30433-MBW-602
SEAL, IGNITION SWITCH
$3.36¢1 679
1
#2
35010-MJW-A00
LOCK SET
No Disponible
1
#002
35010-MJW-A00
LOCK SET
No Disponible
1
#002
35010-MJW-A01
LOCK SET
$275.38¢137 689
1
#002
35010-MJW-A02
LOCK SET
$275.38¢137 689
1
#002
35010-MJW-A03
LOCK SET
No Disponible
1
#002
35010-MJW-A04
LOCK SET
$275.38¢137 689
1
#3
35100-MJW-A01
SWITCH Assembly., COMBINATION & LOCK
No Disponible
1
#003
35100-MJW-A01
SWITCH Assembly., COMBINATION & LOCK
No Disponible
1
#003
35100-MJW-A02
SWITCH Assembly., COMBINATION & LOCK
$193.88¢96 939
1
#4
35101-MJW-D11
BASE, CONTACT
$52.05¢26 024
1
#004
35101-MJW-D11
BASE, CONTACT
$52.05¢26 024
1
#005
35106-MAT-A00
COVER, COMBINATION SWITCH
$11.24¢5 618
1
#5
35106-MAT-A00
COVER, COMBINATION SWITCH
$11.24¢5 618
1
#6
35113-MJE-D00
EMBLEM, KEY
$25.75¢12 874
1
#006
35113-MJE-D00
EMBLEM, KEY
$25.75¢12 874
1
#7
35121-MJE-A02
KEY, BLANK
$23.66¢11 828
1
#007
35121-MJE-A02
KEY, BLANK
$23.66¢11 828
1
#007
35121-MJE-A02RUSH
KEY, CUT INCL OVERNIGHT SHIP (PLEASE SEE WAVE CUTTING SERV REQUEST FORM IN IN)
No Disponible
1
#007
35121-MJE-A02STD
KEY, CUT INCL STD SHIPPING (PLEASE SEE WAVE CUTTING SERV REQUEST FORM IN IN)
No Disponible
1
#8
35910-MGZ-J00
GUIDE, L. FR. WIRE
$2.79¢1 397
1
#008
35910-MGZ-J00
GUIDE, L. FR. WIRE
$2.79¢1 397
1
#009
53100-MGZ-306
HANDLEBAR (COO)
$58.95¢29 474
1
#9
53100-MGZ-306
HANDLEBAR (COO)
$58.95¢29 474
1
#010
53104-KYJ-900
WEIGHT B, HANDLEBAR
$7.45¢3 726
1
#10
53104-KYJ-900
WEIGHT B, HANDLEBAR
$7.45¢3 726
1
#011
53104-MGZ-J00
WEIGHT, HANDLEBAR
$11.32¢5 658
1
#11
53104-MGZ-J00
WEIGHT, HANDLEBAR
$11.32¢5 658
1
#12
53107-MY1-000
RUBBER B, HANDLE WEIGHT
$7.81¢3 904
1
#012
53107-MY1-000
RUBBER B, HANDLE WEIGHT
$7.81¢3 904
1
#13
53108-KR3-770
RING, HANDLE WEIGHT SNAP
$6.95¢3 473
1
#013
53108-KR3-770
RING, HANDLE WEIGHT SNAP
$6.95¢3 473
1
#014
53130-MGS-D30ZB
HOLDER ASSY., HANDLE (UPPER) *NH303M* (MAT AXIS GRAY METALLIC)
$44.82¢22 408
1
#14
53130-MGS-D30ZB
HOLDER ASSY., HANDLE (UPPER) *NH303M* (MAT AXIS GRAY METALLIC)
$44.82¢22 408
1
#15
53230-MGZ-J40
BRIDGE, FORK TOP
$118.32¢59 162
1
#015
53230-MGZ-J40
BRIDGE, FORK TOP
$118.32¢59 162
1
#16
53232-MJW-J00
CAP, STEERING NUT
$29.49¢14 743
1
#016
53232-MJW-J00
CAP, STEERING NUT
$29.49¢14 743
1
#17
86150-KPG-901
EMBLEM, PRODUCT (MARUI)
$4.04¢2 018
1
#017
86150-KPG-901
EMBLEM, PRODUCT (MARUI)
$4.04¢2 018
1
#18
90020-MBW-610
SCREW-WASHER (5X22)
$3.04¢1 518
1
#018
90020-MBW-610
SCREW-WASHER (5X22)
$3.04¢1 518
1
#019
90107-MBG-000
BOLT, ONE-WAY (8MM)
$3.36¢1 679
1
#19
90107-MBG-000
BOLT, ONE-WAY (8MM)
$3.36¢1 679
1
#20
90108-KZZ-900
BOLT, FLANGE (8X40)
$0.86¢431
1
#020
90108-KZZ-900
BOLT, FLANGE (8X40)
$0.86¢431
1
#21
90150-MJW-J00
BOLT, FLANGE (8X35)
$1.89¢943
1
#021
90150-MJW-J00
BOLT, FLANGE (8X35)
$1.89¢943
1
#022
90191-KYJ-900
SCREW, OVAL (6X50)
$1.17¢586
1
#22
90191-KYJ-900
SCREW, OVAL (6X50)
$1.17¢586
1
#23
90304-KGA-900
NUT, STEERING STEM
$3.39¢1 696
1
#023
90304-KGA-900
NUT, STEERING STEM
$3.39¢1 696
1
#024
90503-KGA-900
WASHER, STEERING STEM
$1.77¢886
1
#24
90503-KGA-900
WASHER, STEERING STEM
$1.77¢886
1
#025
90650-KW3-000
BAND, WIRE
$4.99¢2 496
1
#25
90650-KW3-000
BAND, WIRE
$4.99¢2 496
1
#26
91059-KY2-711
SCREW, TAPPING (3X16)
$3.36¢1 679
1
#026
91059-KY2-711
SCREW, TAPPING (3X16)
$3.36¢1 679
1
#027
91554-SM4-003
HOLDER, BRACKET (RED)
$9.26¢4 629
1
#27
91554-SM4-003
HOLDER, BRACKET (RED)
$9.26¢4 629
1
