LOWER COWL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

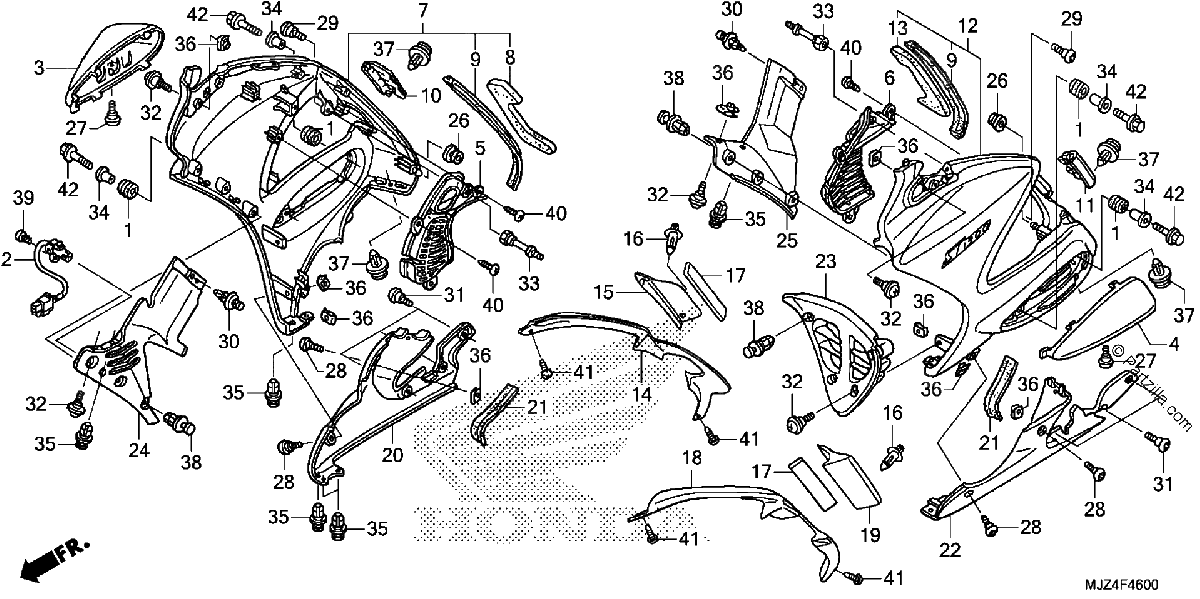

Diagrama de LOWER COWL

Repuestos

#1
17622-GB7-900
RUBBER, CUSHION
$5.35¢2 674
1
#2
37890-MCS-G01
SENSOR, OPEN AIR TEMPERATURE
$68.19¢34 098
1
#3
64260-MCS-G01
COVER, R. ENGINE GUARD
$25.37¢12 684
1
#4
64265-MCS-G01
COVER, L. ENGINE GUARD
$25.37¢12 684
1
#5
64285-MCS-G00
LOUVER, R. COWL SIDE
$34.41¢17 204
1
#6
64295-MCS-G00
LOUVER, L. COWL SIDE
$34.41¢17 204
1
#7
64300-MCS-A30ZA
COWL SET, R. MIDDLE (TYPE1) (WL)
$906.29¢453 146
1
#7
64300-MCS-A50ZA
COWL SET, R. MIDDLE (TYPE1) (WL)
$802.25¢401 126
1
#8
64321-MCS-G00
MAT, R. MIDDLE COWL
$26.81¢13 403
1
#9
64322-MCS-G00
SEAL, MIDDLE COWL
$14.04¢7 021
1
#10
64323-MCS-G00ZD
LID, R. MIDDLE COWL *NH138* (SHASTA WHITE)
$41.05¢20 528
1
#10
64323-MCS-G00ZH
LID, R. MIDDLE COWL *NHB01* (GRAPHITE BLACK)
$25.14¢12 569
1
#11
64328-MCS-G00ZH
LID, L. MIDDLE COWL *NHB01* (GRAPHITE BLACK)
$25.14¢12 569
1
#11
64328-MCS-G00ZD
LID, L. MIDDLE COWL *NH138* (SHASTA WHITE)
$41.05¢20 528
1
#12
64350-MCS-A50ZA
COWL SET, L. MIDDLE (TYPE1) (WL)
$802.25¢401 126
1
#12
64350-MCS-A30ZA
COWL SET, L. MIDDLE (TYPE1) (WL)
$906.29¢453 146
1
#13
64371-MCS-G00
MAT, L. MIDDLE COWL
$26.81¢13 403
1
#14
64381-MCS-A32
DEFLECTOR A, R. SIDE
No Disponible
1
#14
08P73-MCS-80011
DEFLECTOR A, R. SIDE
No Disponible
1
#15
64382-MCS-A32
DEFLECTOR B, R. SIDE
$68.94¢34 471
1
#15
08P73-MCS-80013
DEFLECTOR B, R. SIDE
$68.94¢34 471
1
#16
08P73-MCS-80015
RIVET, PUSH
$1.81¢903
1
#16
64383-MCS-A32
RIVET, PUSH
$1.81¢903
1
#17
64384-MCS-A32
TAPE, VELCRO (MALE)
No Disponible
1
#17
08P73-MCS-80016
TAPE, VELCRO (MALE)
No Disponible
1
#18
08P73-MCS-80012
DEFLECTOR A, L. SIDE
No Disponible
1
#18
64391-MCS-A32
DEFLECTOR A, L. SIDE
No Disponible
1
#19
08P73-MCS-80014
DEFLECTOR B, L. SIDE
$68.94¢34 471
1
#19
64392-MCS-A32
DEFLECTOR B, L. SIDE
$68.94¢34 471
1
#20
64400-MCS-760
COWL, R. (LOWER)
$431.54¢215 769
1
#21
64412-MCS-G00
SEAL, COWL (LOWER)
$6.72¢3 358
1
#22
64450-MCS-760
COWL, L. (LOWER)
$431.54¢215 769
1
#23
64510-MCS-G00
COWL (LOWER) (INNER)
$74.69¢37 346
1
#24
64592-MCS-G00
COWL, R. (INNER)
$46.62¢23 310
1
#25
64597-MCS-G00
COWL, L. (INNER)
$46.62¢23 310
1
#26
83601-MN5-000
GROMMET, SIDE COVER
$3.36¢1 679
1
#27
90106-KY2-701
SCREW, PAN (6X11)
$4.74¢2 369
1
#28
90106-MBY-000
SCREW, SPECIAL (5X12)
$3.16¢1 581
1
#29
90113-MM5-000
SCREW, PAN (6X14)
$3.45¢1 725
1
#30
90116-SP0-003
CLIP, BUMPER SEAL
$5.27¢2 633
1
#31
90118-MR1-000
SCREW, PAN (6X14)
$3.45¢1 725
1
#32
90133-MCS-G00
SCREW, PAN (5X13)
$1.28¢638
1
#33
90135-MCS-G01
BOLT, MIDDLE COWL
$13.93¢6 963
1
#34
90501-124-000
WASHER, FR. COVER SETTING
$3.79¢1 897
1
#35
90657-SB0-003
CLIP, SPLASH SHIELD
$5.88¢2 938
1
#36
90677-KAN-961
NUT, CLIP (5MM)
$4.54¢2 271
1
#37
90683-MBW-003
CLIP, BODY
$2.31¢1 156
1
#38
91549-MW0-790ZA
CLIP, PANEL FIXING *NH1* (BLACK)
$4.71¢2 357
1
#39
93903-24280
SCREW, TAPPING (4X10)
$1.60¢799
1
#40
93903-24380
SCREW, TAPPING (4X12)
$1.07¢535
1
#41
93903-44280
SCREW, TAPPING (4X10)
$1.07¢535
1
#42
96001-06016-00
BOLT, FLANGE (6X16)
$1.24¢621
1
