BATTERY

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

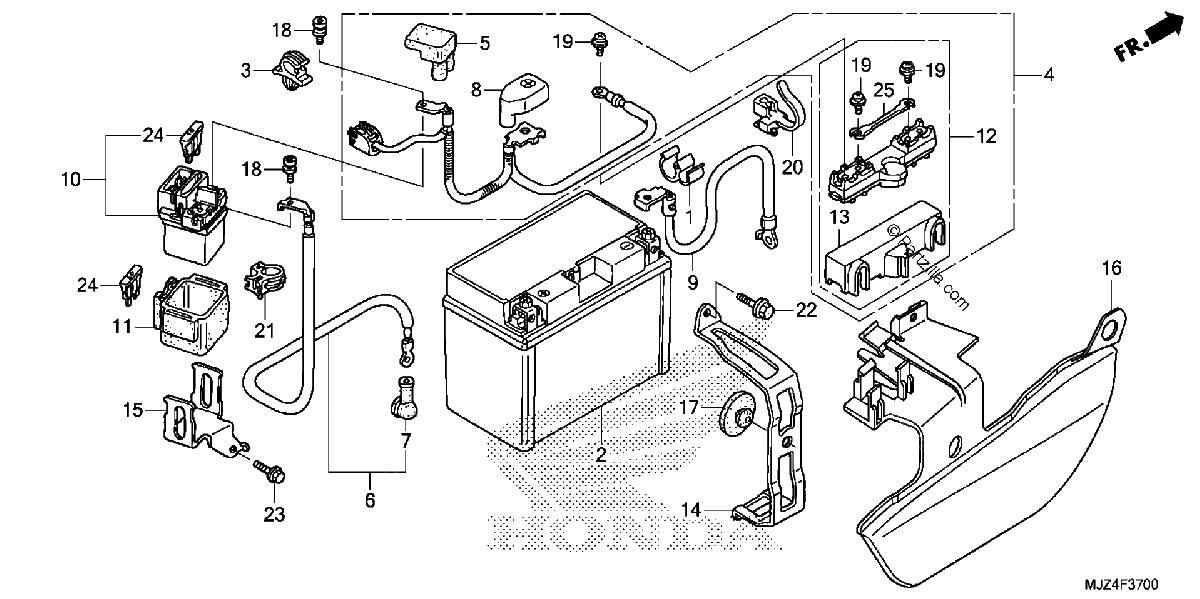

Diagrama de BATTERY

Repuestos

#1
11152-KS4-003
CLAMP, PIPE
$8.64¢4 319
1
#2
31500-MCR-D02AH
BATTERY (YTZ14S) (YUASA) (MSDS)
No Disponible
1
#3
32172-GJ1-003
CLIP B, HARNESS
$5.04¢2 519
1
#4
32401-MCS-D91
CABLE, STARTER BATTERY
$118.98¢59 488
1
#5
32406-MT4-010
COVER, STARTER MAGNETIC TERMINAL
$8.24¢4 119
1
#6
32410-MCS-G00
CABLE, STARTER MOTOR
$42.69¢21 344
1
#7
32411-230-000
COVER, STARTER MOTOR TERMINAL
$7.76¢3 881
1
#7
32411-253-000
COVER, STARTER MOTOR TERMINAL
$7.76¢3 881
1
#8
32414-MCF-000
COVER, BATTERY TERMINAL
$8.34¢4 169
1
#9
32601-MCS-G00
CABLE, BATTERY GROUND
$30.16¢15 081
1
#10
35850-MT4-003
SWITCH ASSY., STARTER MAGNETIC
$91.23¢45 613
1
#11
35856-MBG-003
RUBBER, SHOCK
$11.74¢5 869
1
#12
38260-MN5-003
BOX ASSY., REVERSE FUSE
$34.29¢17 144
1
#13
38265-MN5-003
COVER, FUSE BOX
$8.18¢4 088
1
#14
50320-MCS-G00
BAND, BATTERY
$11.57¢5 788
1
#15
80114-MCS-G00
BRACKET, STARTER MAGNETIC SWITCH
$6.90¢3 450
1
#16
83410-MCS-D90
COVER, R. SIDE (LOWER)
$16.35¢8 175
1
#17
83618-323-000
RUBBER, BATTERY BOX
$3.19¢1 594
1
#18
90111-MR5-000
BOLT, SOCKET (5X9)
$3.36¢1 681
1
#19
90153-SB2-003
SCREW-WASHER (5X10)
$7.01¢3 506
1
#20
90690-GHB-601
CLIP, HARNESS BAND (15)
$2.91¢1 456
1
#21
90690-GHB-661
CLIP, CABLE (20MM)
$2.81¢1 406
1
#22
95701-06012-00
BOLT, FLANGE (6X12)
$2.09¢1 044
1
#23
96001-06012-00
BOLT, FLANGE (6X12)
$2.31¢1 156
1
#24
98200-33000
FUSE, BLADE (30A)
$1.68¢838
1
#25
98200-66500
FUSE (65A)
$2.95¢1 475
1
