UNDER COWL 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

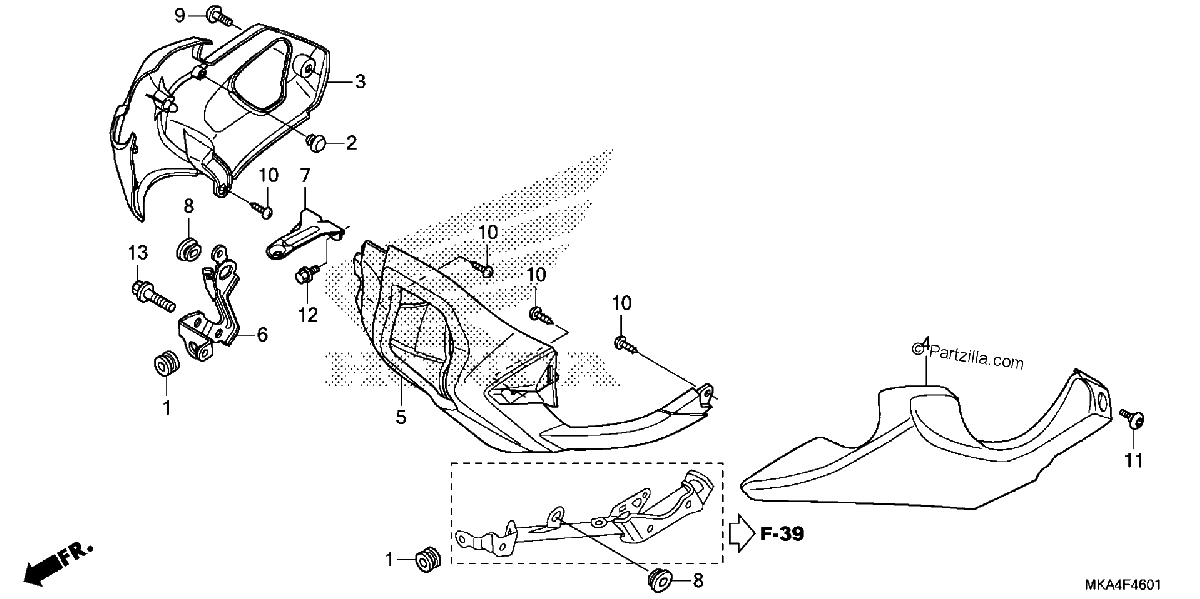

Diagrama de UNDER COWL 2

Repuestos

#001
19034-MB3-000
GROMMET, RADIATOR SETTING
$4.78¢2 392
1
#1
19034-MB3-000
GROMMET, RADIATOR SETTING
$4.78¢2 392
1
#2
61112-727-000
RUBBER, TENSIONER ARM
$3.55¢1 777
1
#002
61112-727-000
RUBBER, TENSIONER ARM
$3.55¢1 777
1
#003
64300-MGS-D50ZA
COWL, R. (LOWER) *NH1* (BLACK)
$58.18¢29 089
1
#3
64300-MGS-D50ZA
COWL, R. (LOWER) *NH1* (BLACK)
$58.18¢29 089
1
#003
64300-MGS-D51ZA
COWL, Right. (LOWER) NH1 (WL)(BLACK)
$58.18¢29 089
1
#4
64400-MGS-D50ZA
COWL, Left (LOWER) NH1 (BLACK)
$48.00¢24 001
1
#004
64400-MGS-D50ZA
COWL, Left (LOWER) NH1 (BLACK)
$48.00¢24 001
1
#5
64500-MGS-D30ZC
COWL, CENTER (LOWER) NHB41MR (CROSS SILVER METALLIC-Right)
$132.34¢66 171
1
#005
64500-MGS-D30ZC
COWL, CENTER (LOWER) NHB41MR (CROSS SILVER METALLIC-Right)
$132.34¢66 171
1
#006
64541-MGS-D30
STAY A, R. COWL (LOWER)
$16.95¢8 476
1
#6
64541-MGS-D30
STAY A, R. COWL (LOWER)
$16.95¢8 476
1
#7
64542-MGS-D50
STAY B, Right COWL (LOWER)
$7.96¢3 979
1
#007
64542-MGS-D50
STAY B, Right COWL (LOWER)
$7.96¢3 979
1
#8
83551-GE2-000
GROMMET, AIR CLEANER HOUSING
$6.27¢3 134
1
#008
83551-GE2-000
GROMMET, AIR CLEANER HOUSING
$6.27¢3 134
1
#9
90103-MGS-D50
SCREW, TRUSS (5X16)
$2.22¢1 110
1
#009
90103-MGS-D50
SCREW, TRUSS (5X16)
$2.22¢1 110
1
#010
90120-MJK-N20
SCREW, TAPPING (4X12)
$2.68¢1 340
1
#10
90120-MJK-N20
SCREW, TAPPING (4X12)
$2.68¢1 340
1
#11
90122-MJK-N20
SCREW, SPECIAL (5X11)
$2.94¢1 472
1
#011
90122-MJK-N20
SCREW, SPECIAL (5X11)
$2.94¢1 472
1
#012
95701-06014-08
BOLT, FLANGE (6X14)
$1.92¢960
1
#12
95701-06014-08
BOLT, FLANGE (6X14)
$1.92¢960
1
#13
95701-08018-08
BOLT, FLANGE (8X18)
$1.91¢954
1
#013
95701-08018-08
BOLT, FLANGE (8X18)
$1.91¢954
1
