HANDLE LEVER SWITCH CABLE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

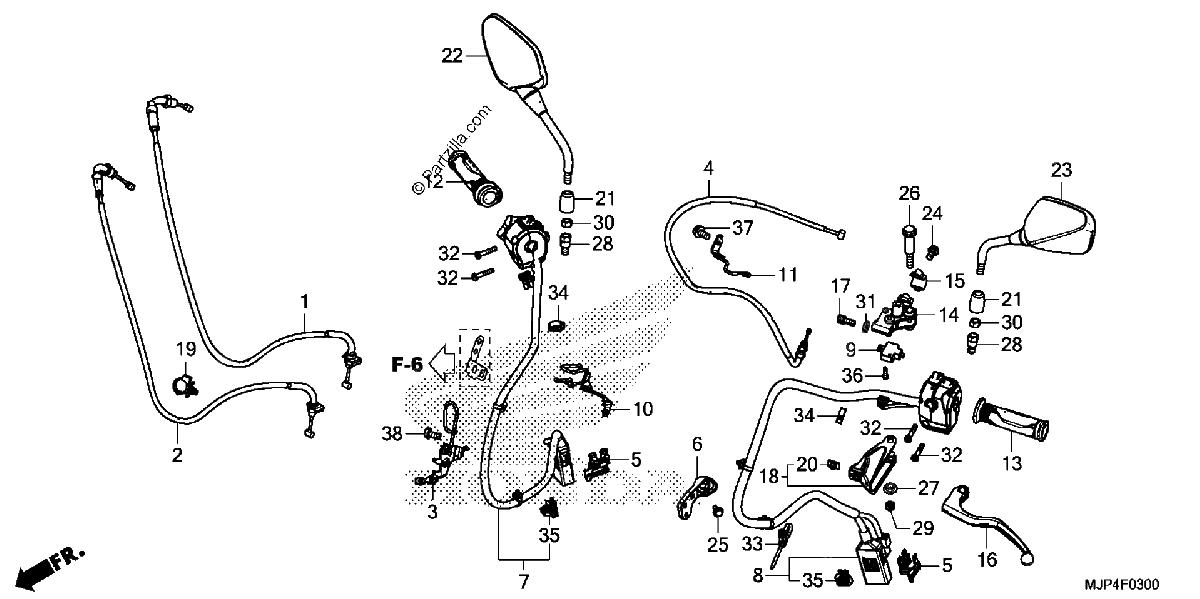

Diagrama de HANDLE LEVER SWITCH CABLE

Repuestos

#1
17910-MJP-G51
CABLE A, THROTTLE
$36.57¢18 285
1
#2
17920-MJP-G51
CABLE B, THROTTLE
$36.57¢18 285
1
#3
17925-MJP-G50
GUIDE, THROTTLE CABLE
$14.35¢7 176
1
#4
22870-MJP-G51
CABLE, CLUTCH
$24.03¢12 017
1
#5
32121-MJP-G50
HOLDER, CONNECTOR
$5.04¢2 519
1
#6
32151-MJP-G50
STAY, CLIP
$10.03¢5 014
1
#7
35130-MJP-G61
SWITCH ASSY., ENGINE STOP
No Disponible
1
#7
35130-MJP-G62
SWITCH Assembly., ENGINE STOP
No Disponible
1
#8
35200-MJP-G62
SWITCH Assembly., TURN SIGNAL
No Disponible
1
#9
35330-MK5-003
SWITCH ASSY., CLUTCH
$19.11¢9 557
1
#10
53111-MJP-G50
CLAMP, CABLE
$17.66¢8 832
1
#11
53112-MJP-G50
GUIDE, CLUTCH CABLE
$12.80¢6 400
1
#12
53140-MGE-000
GRIP ASSY., THROTTLE
$31.48¢15 738
1
#12
53140-MGE-305
GRIP ASSY., THROTTLE (COO)
$31.48¢15 738
1
#13
53166-MGE-000
GRIP, L. HANDLE
$18.95¢9 476
1
#13
53166-MGE-305
GRIP, L. HANDLE (COO)
$18.95¢9 476
1
#14
53172-MJP-G50
BRACKET, L. HANDLE LEVER
$65.49¢32 746
1
#15
53174-KA3-730
HOLDER, L. LEVER BRACKET
$25.14¢12 569
1
#16
53178-MJP-305
LEVER, HANDLEBAR (COO)
$31.81¢15 904
1
#17
53192-MCJ-000
BOLT, CABLE ADJUSTING
$9.12¢4 560
1
#18
53196-MJP-G60
HOLDER, L. KNUCKLE
$17.20¢8 602
1
#19
53781-SE0-952
CLIP, RETURN HOSE
$8.97¢4 485
1
#20
61304-HB3-003
NUT, SPECIAL (6MM)
$3.36¢1 679
1
#21
88130-MFG-D00
COVER, LOCK NUT
$2.04¢1 018
1
#22
88210-MGS-305
MIRROR, R. BACK (COO)
$88.00¢43 999
1
#22
88210-MGS-D30
MIRROR, R. BACK
$88.00¢43 999
1
#23
88220-MGS-305
MIRROR, L. BACK (COO)
$88.00¢43 999
1
#23
88220-MGS-D30
MIRROR, L. BACK
$88.00¢43 999
1
#24
90013-GHB-660
BOLT, FLANGE (6X22)
$2.75¢1 374
1
#25
90107-KSE-000
BOLT, FLANGE (6MM)
$2.83¢1 414
1
#26
90117-MJP-G50
BOLT, L. HANDLE LEVER
$7.83¢3 916
1
#27
90127-KF0-770
COLLAR (6X4)
$3.82¢1 909
1
#28
90130-MGS-D31
BOLT, ADAPTER (10MM)
$9.14¢4 571
1
#29
90301-782-000
NUT, U (6MM)
$1.83¢914
1
#30
90310-MGS-D31
NUT, HEX. (10MM) (LEFT HAND THREAD)
$3.36¢1 679
1
#31
90321-MCJ-000
NUT, FIXING
$3.79¢1 897
1
#32
90508-MGE-D00
SCREW-WASHER (5X25)
$1.53¢765
1
#33
90690-GHB-611
CLIP, HARNESS BAND (25MM)
$2.59¢1 294
1
#33
90690-GHB-661
CLIP, CABLE (20MM)
$2.59¢1 294
1
#34
90690-MEF-800
CLAMP, HARNESS
$1.54¢771
1
#35
91533-SDA-003
CLIP, CONNECTOR (BEIGE)
$3.00¢1 501
1
#36
93901-32320
SCREW, TAPPING (3X12)
$1.02¢512
1
#37
95701-06012-08
BOLT, FLANGE (6X12)
$1.83¢914
1
#38
96001-06012-07
BOLT, FLANGE (6X12)
$2.13¢1 064
1
