CLUTCH 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

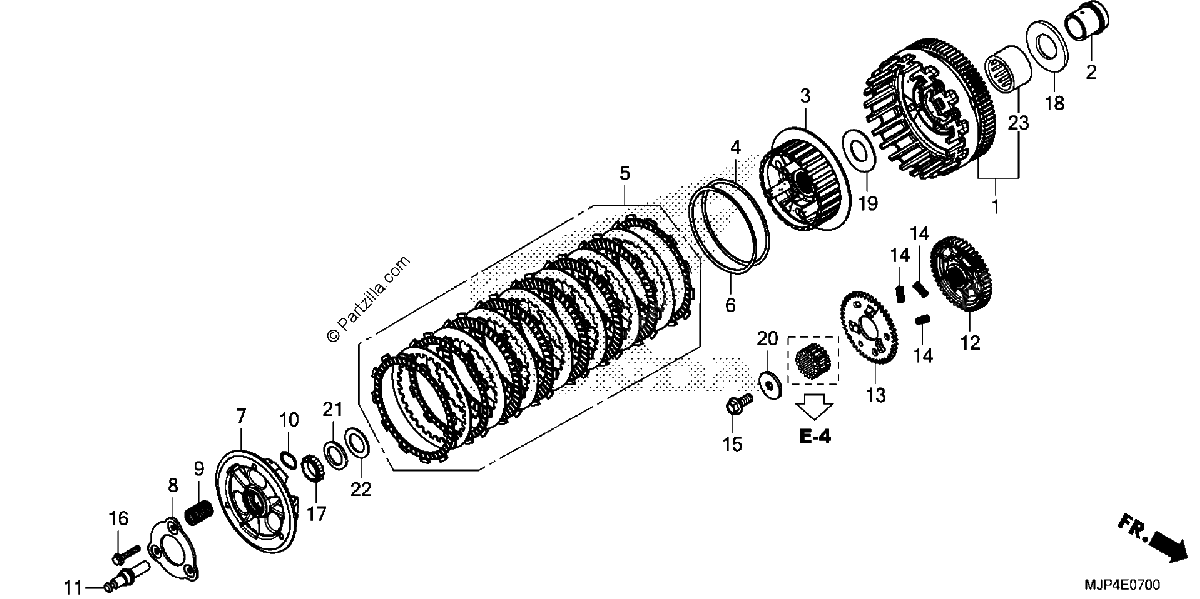

Diagrama de CLUTCH 1

Repuestos

#1
22100-MJP-G50
CLUTCH OUTER
$533.61¢266 806
1
#2
22116-MJP-G50
GUIDE, CLUTCH (OUTER)
$24.74¢12 369
1
#3
22121-MJP-G51
CENTER, CLUTCH
$152.31¢76 156
1
#4
22125-HP6-A00
SEAT, JUDDER SPRING
$5.79¢2 894
1
#5
22210-MJP-305
DISK SET, CLUTCH
$188.70¢94 350
1
#6
22325-MJP-G51
SPRING, JUDDER
$47.20¢23 600
1
#7
22350-MJP-G51
PLATE, CLUTCH PRESSURE
$85.90¢42 950
1
#8
22361-MJP-G51
PLATE, SETTING
$31.09¢15 544
1
#9
22401-MJP-G51
SPRING, CLUTCH
$6.76¢3 381
1
#10
22425-MJP-G51
SEAT, CLUTCH SPRING
$13.73¢6 863
1
#11
22847-MJP-G50
PIN, CLUTCH LIFTER
$42.46¢21 231
1
#12
23103-MJP-G50
GEAR, PRIMARY DRIVE (45T)
$140.31¢70 156
1
#13
23104-MJP-G50
SUB-GEAR, PRIMARY (45T)
$76.76¢38 381
1
#14
23115-MW4-000
SPRING, PRIMARY DAMPER
$2.97¢1 487
1
#15
90013-MJP-G50
BOLT, SPECIAL (10X25)
$5.49¢2 744
1
#16
90050-MJP-G51
BOLT, FLANGE (6X35)
$2.64¢1 319
1
#17
90231-MS2-610
NUT, LOCK (25MM)
$21.80¢10 900
1
#18
90401-MEA-670
WASHER (35X50X3.2)
$6.92¢3 463
1
#19
90401-MS2-610
WASHER, THRUST (28.2X56X2)
$20.43¢10 213
1
#20
90414-MGE-D00
WASHER (10.5X36X4)
$3.02¢1 513
1
#21
90432-MM8-003
WASHER, SPRING (25MM) (CHUO HATSUJO)
$9.32¢4 663
1
#22
90451-VM0-000
WASHER, THRUST (25X40X2)
$7.72¢3 863
1
#23
91026-MV9-671
BEARING, NEEDLE (35X42X23)
$115.76¢57 881
1
