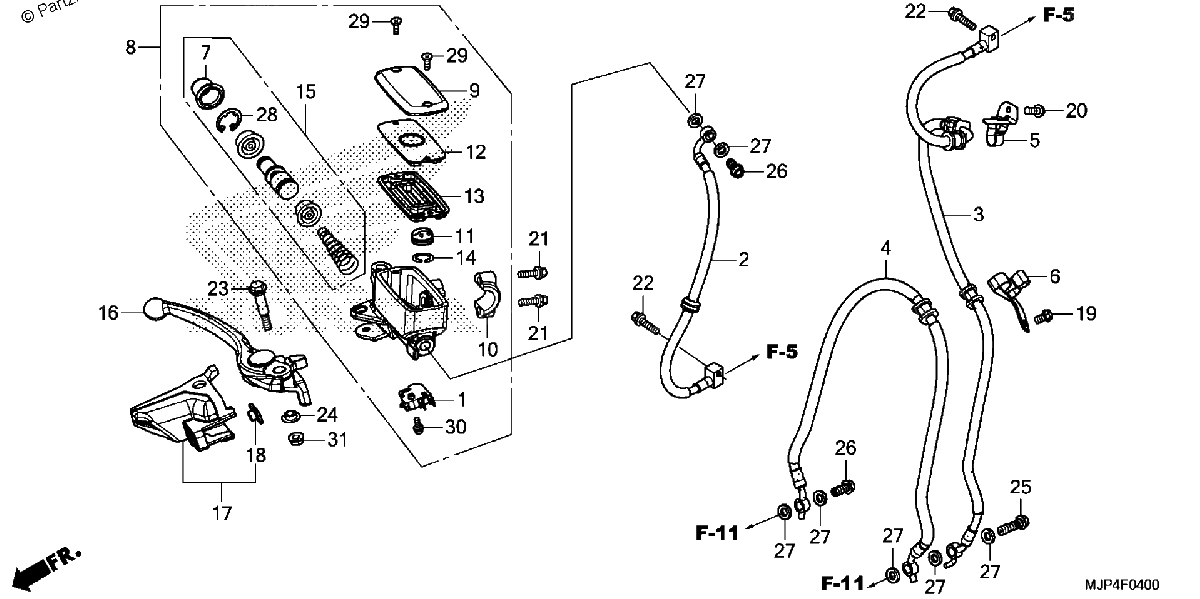

FRONT BRAKE MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
SWITCH Assembly., Front STOP (ALPS)
$19.77¢9 884
#2
HOSE A, FR. BRAKE
$64.76¢32 378
#3
HOSE D, FR. BRAKE
$80.32¢40 158
#4
HOSE E, Front BRAKE
$72.09¢36 047
#5
CLAMP, FR. BRAKE HOSE
$12.01¢6 003
#6
CLAMP, Front BRAKE HOSE (LOWER)
$12.01¢6 003
#7
BOOT
$13.10¢6 549
#8
MASTER CYLINDER SUB-Assembly., Front BRAKE (COO) (NISSIN)
$308.12¢154 060
#9
CAP, MASTER CYLINDER (NISSIN)
$23.94¢11 971
#10
HOLDER, MASTER CYLINDER
$14.48¢7 239
#11
SEPARATOR
$8.50¢4 249
#12
PLATE, DIAPHRAGM
$11.37¢5 687
#13
DIAPHRAGM
$16.26¢8 131
#14
RING
$3.36¢1 679
#15
MASTER CYLINDER SET
$51.03¢25 513
#16
LEVER Assembly., Right HANDLE
$48.28¢24 138
#16
LEVER ASSY., R. HANDLE (COO)
$48.28¢24 138
#17
HOLDER, Right KNUCKLE
$17.96¢8 981
#18
NUT, SPECIAL (6MM)
$3.36¢1 679
#19
BOLT, FLANGE (6X10)
$5.30¢2 651
#20
BOLT, FLANGE (6X14)
$2.75¢1 374
#21
BOLT, FLANGE (6X22)
$2.75¢1 374
#22
BOLT, FLANGE (6X25)
$2.75¢1 374
#23
BOLT, HANDLE LEVER
$8.18¢4 088
#24
COLLAR (6X4)
$3.82¢1 909
#25
BOLT, OIL (10X34)
$8.61¢4 307
#26
BOLT, OIL (10X22)
$8.18¢4 088
#27
WASHER, OIL BOLT
$4.46¢2 231
#28
CIRCLIP
$2.85¢1 426
#29
SCREW, FLAT (4X12)
$1.07¢535
#29
SCREW, FLAT (4X12)
$1.07¢535
#30
SCREW-WASHER (4X12)
$1.59¢793
#30
SCREW-WASHER (4X12)
$1.59¢793
#31
NUT, FLANGE (6MM)
$0.74¢368
