FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

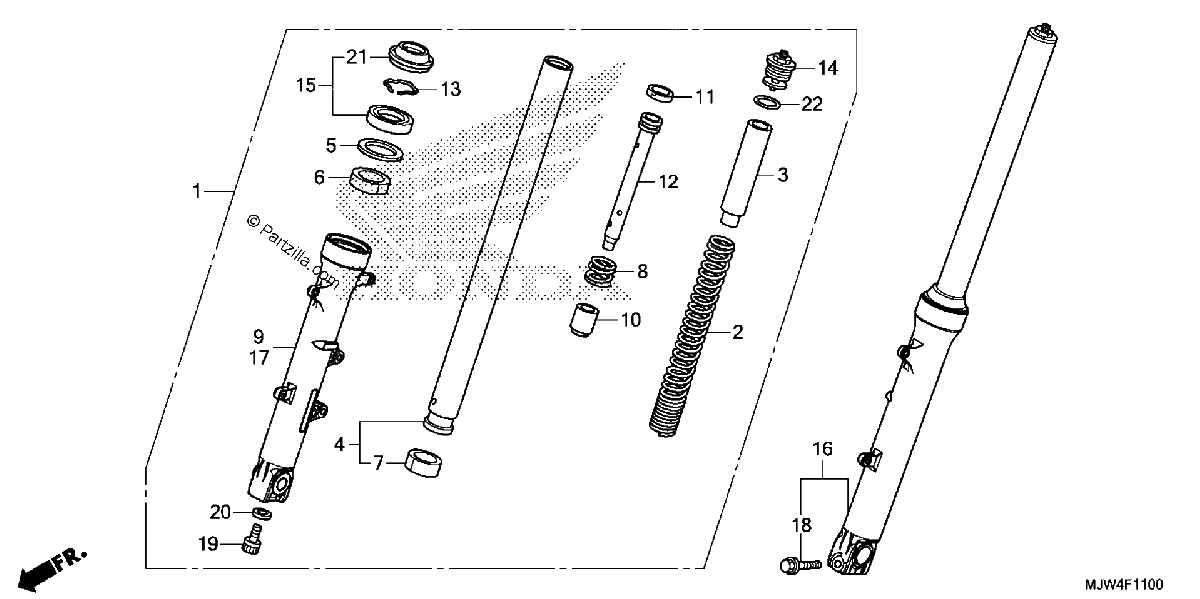

Diagrama de FRONT FORK

Repuestos

#1
51400-MJW-317
FORK ASSY., R. FR. (COO) (SHOWA)
$489.17¢244 587
1
#2
51401-MJW-J81
SPRING, FR. FORK
$40.88¢20 438
1
#3
51402-MGZ-J01
COLLAR, SPRING
$20.74¢10 369
1
#4
51410-MJW-J81
PIPE, Front FORK
$169.49¢84 744
1
#5
51412-MB4-003
RING, BACK-UP (SHOWA)
$11.29¢5 644
1
#6
51414-MFJ-A51
BUSH, GUIDE
$8.80¢4 400
1
#7
51415-MFJ-A51
BUSH, SLIDER
$8.80¢4 400
1
#8
51416-KF0-003
SPRING, FR. REBOUND (SHOWA)
$9.36¢4 681
1
#9
51420-MGZ-J01
CASE, Right. (LOWER)
$103.44¢51 719
1
#10
51432-MV9-003
PIECE, OIL LOCK (SHOWA)
$28.82¢14 413
1
#11
51437-KV3-701
RING, PISTON
$8.73¢4 363
1
#12
51440-MJW-J81
PIPE, SEAT
$11.96¢5 981
1
#13
51447-KA4-711
RING, OIL SEAL STOPPER (SHOWA)
$5.47¢2 738
1
#14
51450-MR8-003
BOLT ASSY., FR. FORK
$146.31¢73 156
1
#15
51490-MKA-D81
SEAL SET, FR. FORK
$26.44¢13 219
1
#16
51500-MJW-317
FORK Assembly., L Front. (COO) (SHOWA)
$489.23¢244 613
1
#17
51520-MGZ-J01
CASE, Left (LOWER)
$95.06¢47 531
1
#18
90109-MR7-000
BOLT, FLANGE (8X45)
$5.99¢2 994
1
#19
90116-KV3-701
BOLT, SOCKET (8MM) (SHOWA)
$4.71¢2 356
1
#20
90544-283-000
WASHER, SPECIAL (8MM) (SHOWA)
$3.65¢1 825
1
#21
91251-MKA-D81
DUST SEAL (SHOWA)
$10.00¢5 000
1
#22
91356-KF0-003
O-RING (33.2X2.4)
$4.56¢2 281
1
