WIRE HARNESS

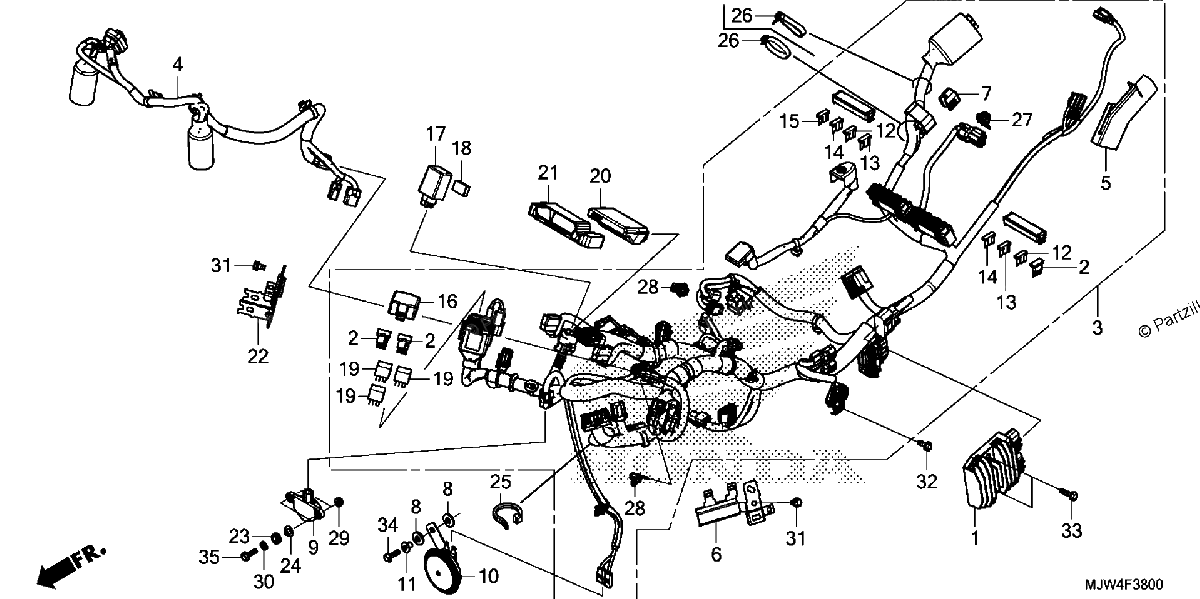

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
RECTIFIER ASSY., REGULATOR
$201.64¢100 821
#2
DIODE ASSY., THREE WAY (SUMITOMO)
$11.63¢5 813
#3
WIRE HARNESS
$964.44¢482 218
#4
SUB-HARNESS, Front.
$85.08¢42 539
#5
SUSPENSION, CONNECTOR
$28.60¢14 300
#6
STAY, CONNECTOR
$9.26¢4 629
#7
CAP, DUMMY (4P) (RED)
$5.36¢2 680
#8
RUBBER, TAILLIGHT BRACKET
$2.98¢1 489
#9
SENSOR ASSY., BANK ANGLE
$177.72¢88 860
#10
HORN (HIGH)
$41.48¢20 740
#11
COLLAR, HORN SETTING
$0.91¢454
#12
FUSE, BLADE (7.5A)
$3.46¢1 731
#13
FUSE, BLADE (10A)
$3.46¢1 731
#14
FUSE, BLADE (15A)
$4.42¢2 208
#16
COVER, RELAY BOX
$17.33¢8 665
#17
RELAY, TURN SIGNAL (MITSUBA)
$59.04¢29 521
#18
SUSPENSION, TURN SIGNAL RELAY
$6.35¢3 174
#19
RELAY ASSY., POWER (MICRO ISO 4P)
$5.19¢2 593
#20
PGM-FI UNIT
$359.12¢179 561
#21
CUSHION, PGM-FI UNIT
$4.94¢2 472
#22
STAY, RELAY BOX
$11.18¢5 589
#23
RUBBER, SIDE COVER
$2.30¢1 150
#24
COLLAR, BANK ANGLE SENSOR
$2.71¢1 357
#25
BAND, WIRE (165MM) (BLACK)
$3.36¢1 679
#26
BAND, WIRE (BLACK)
$4.99¢2 496
#27
CLIP, CONNECTOR (DARK BROWN)
$4.62¢2 311
#28
CLIP, CONNECTOR (BLACK)
$4.09¢2 047
#29
NUT, FLANGE (6MM)
$0.74¢368
#30
WASHER, PLAIN (6MM)
$0.92¢460
#31
BOLT, FLANGE (6X10)
$1.49¢747
#32
BOLT, FLANGE (6X14)
$1.92¢960
#33
BOLT, FLANGE (6X20)
$2.09¢1 047
#34
BOLT, FLANGE (6X20)
$1.92¢960
#35
BOLT, FLANGE (6X22)
$2.04¢1 018
