FRONT BRAKE MASTER CYLINDER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

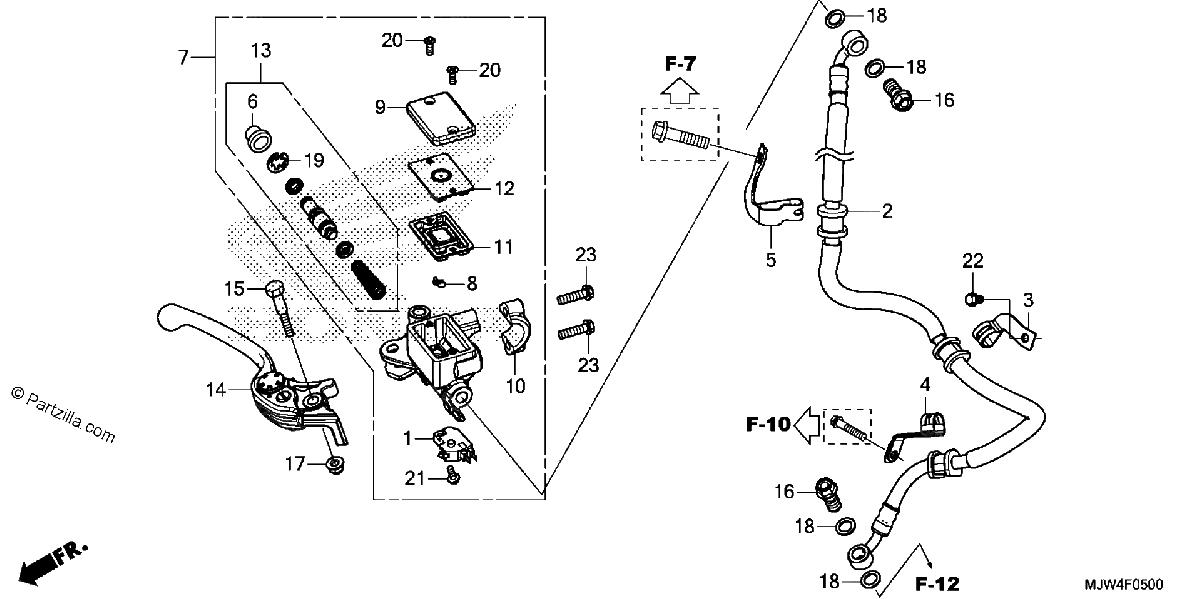

Diagrama de FRONT BRAKE MASTER CYLINDER 1

Repuestos

#1
35340-MGS-D31
SWITCH Assembly., Front STOP (ALPS)
$19.77¢9 884
1
#2
45125-MJW-J81
HOSE, Front BRAKE
$27.90¢13 950
1
#3
45155-MGZ-J00
CLAMP A, Front BRAKE HOSE
$2.69¢1 346
1
#4
45156-MGZ-J00
CLAMP B, Front BRAKE HOSE
$3.45¢1 725
1
#5
45157-MGZ-J40
CLAMP C, Front BRAKE HOSE
$4.24¢2 122
1
#6
45504-410-003
BOOT
$13.10¢6 549
1
#7
45510-MGZ-315
MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN)
$144.55¢72 277
1
#8
45512-MA6-006
PROTECTOR
$4.78¢2 392
1
#9
45513-HR0-305
CAP, MASTER CYLINDER (COO)
$4.63¢2 317
1
#9
45513-KK1-771
CAP, MASTER CYLINDER
$4.63¢2 317
1
#10
45517-166-006
HOLDER, MASTER CYLINDER
$14.48¢7 239
1
#11
45520-GE2-006
DIAPHRAGM
$10.00¢5 002
1
#11
45520-MG7-006
DIAPHRAGM
$11.33¢5 664
1
#12
45521-K21-901
PLATE, DIAPHRAGM
$2.69¢1 346
1
#13
45530-471-831
MASTER CYLINDER SET
$42.69¢21 344
1
#14
53170-MJW-305
LEVER ASSY., R. HANDLE (COO)
$98.61¢49 306
1
#15
90114-166-006
BOLT, HANDLE LEVER PIVOT
$7.24¢3 622
1
#16
90145-MS9-612
BOLT, OIL (10X22)
$8.18¢4 088
1
#17
90202-KCW-870
NUT, CAP (6MM)
$3.36¢1 679
1
#18
90545-300-000
WASHER, OIL BOLT
$4.46¢2 231
1
#19
90651-MA5-671
CIRCLIP
$2.85¢1 426
1
#20
93600-04012-0G
SCREW, FLAT (4X12)
$1.07¢535
1
#20
93600-04012-1G
SCREW, FLAT (4X12)
$1.07¢535
1
#21
93893-04012-07
SCREW-WASHER (4X12)
$1.59¢793
1
#21
93893-04012-17
SCREW-WASHER (4X12)
$1.59¢793
1
#22
96001-06010-07
BOLT, FLANGE (6X10)
$1.92¢960
1
#23
96001-06022-07
BOLT, FLANGE (6X22)
$2.18¢1 092
1
