FRONT BRAKE MASTER CYLINDER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

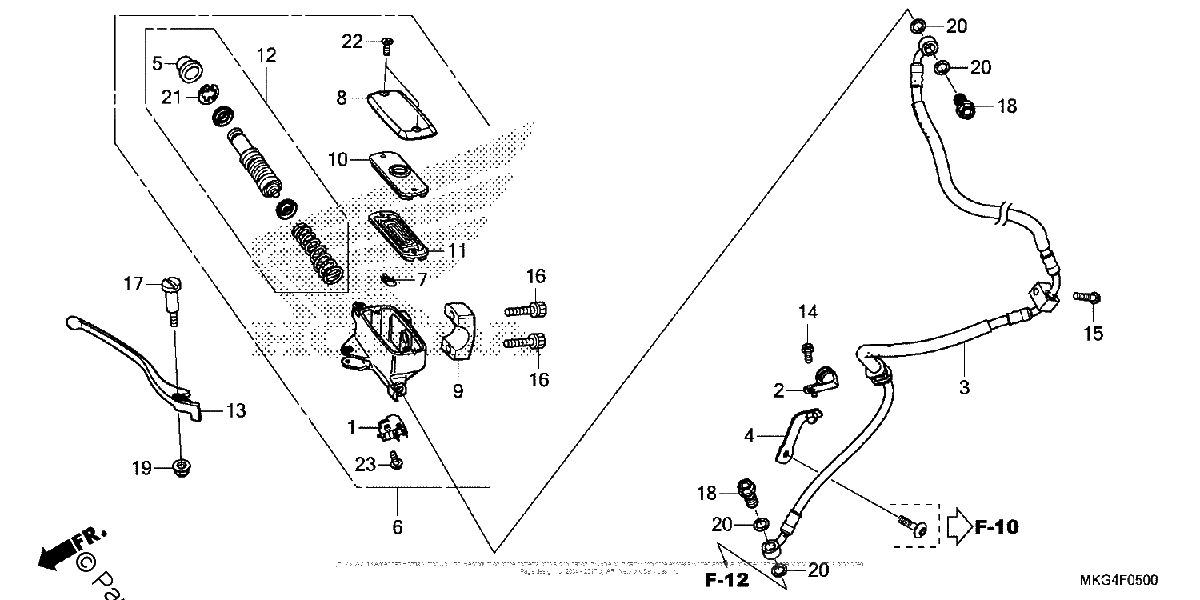

Diagrama de FRONT BRAKE MASTER CYLINDER 1

Repuestos

#1
35340-MGS-D31
SWITCH Assembly., Front STOP (ALPS)
$19.77¢9 884
1
#2
43155-K87-A00
CLAMP, BRAKE HOSE
$4.81¢2 403
1
#3
45125-K87-A01
HOSE, Front BRAKE
$51.60¢25 800
1
#4
45155-K87-A00
STAY, Front BRAKE HOSE
$4.51¢2 254
1
#5
45504-410-003
BOOT
$13.10¢6 549
1
#6
45510-K87-A01
MASTER CYLINDER SUB-ASSY., FR.(NISSIN)
$134.09¢67 045
1
#7
45512-MA6-006
PROTECTOR
$4.78¢2 392
1
#8
45513-MM5-016
CAP, MASTER CYLINDER (NISSIN)
$23.94¢11 971
1
#9
45517-MAV-751
HOLDER, MASTER CYLINDER (NISSIN)
$22.13¢11 063
1
#10
45518-MM5-006
PLATE, DIAPHRAGM
$11.37¢5 687
1
#11
45520-MM5-006
DIAPHRAGM
$16.26¢8 131
1
#12
45530-K03-M61
MASTER CYLINDER SET (NISSIN)
$44.25¢22 126
1
#13
53175-MR5-305
LEVER, R. HANDLE (COO)
$17.54¢8 769
1
#13
53175-MR5-003
LEVER, Right HANDLE
$17.54¢8 769
1
#14
90013-GHB-600
BOLT, FLANGE (6X10)
$5.30¢2 651
1
#15
90013-GHB-680
BOLT, FLANGE (6X28)
$1.17¢586
1
#16
90111-GHB-660
BOLT, SOCKET (6X22)
$1.17¢586
1
#17
90114-MA5-671
BOLT, HANDLE LEVER PIVOT
$10.14¢5 071
1
#18
90145-MS9-612
BOLT, OIL (10X22)
$8.18¢4 088
1
#19
90202-KCW-870
NUT, CAP (6MM)
$3.36¢1 679
1
#20
90545-300-000
WASHER, OIL BOLT
$4.46¢2 231
1
#21
90651-K03-M61
CIRCLIP, INNER (18.8MM)
$0.80¢402
1
#22
93600-04012-0G
SCREW, FLAT (4X12)
$1.07¢535
1
#22
93600-04012-1G
SCREW, FLAT (4X12)
$1.07¢535
1
#23
93893-04012-07
SCREW-WASHER (4X12)
$1.59¢793
1
#23
93893-04012-17
SCREW-WASHER (4X12)
$1.59¢793
1
