THROTTLE BODY

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

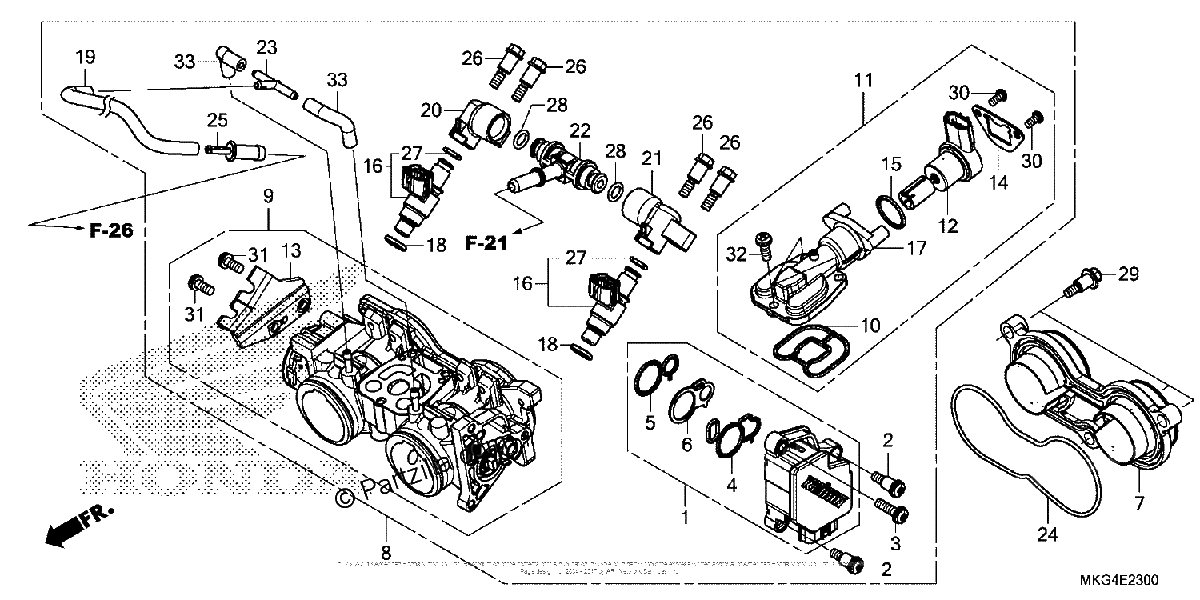

Diagrama de THROTTLE BODY

Repuestos

#1
16060-MGZ-D01
SENSOR SET
$209.13¢104 564
1
#2
16081-KPH-701
SCREW, TORX (5X8.7)
$3.37¢1 685
1
#3
16082-KPH-701
SCREW, TORX (5X17)
$6.24¢3 122
1
#4
16083-MGZ-D01
O-RING, SENSOR
$3.09¢1 547
1
#5
16084-MGZ-D01
O-RING, SENSOR
$3.09¢1 547
1
#6
16085-MGZ-D01
PLATE
$2.86¢1 432
1
#7
16188-MKG-A00
PLATE, FUNNEL SETTING
$12.33¢6 164
1
#8
16400-MJW-L01
BODY ASSY., THROTTLE (GQBSB A)
$810.58¢405 289
1
#9
16410-MJW-L01
BODY SET
$225.95¢112 976
1
#10
16428-MGZ-D01
O-RING, AIR INJECTION CONTROL VALVE
$28.93¢14 467
1
#11
16430-MJW-J01
VALVE SET, IDLE AIR CONTROL
$271.32¢135 660
1
#12
16431-MJP-G51
MOTOR ASSY.
$86.04¢43 021
1
#13
16432-MGZ-D01
STAY, WIRE
$46.09¢23 046
1
#14
16433-MEW-921
PLATE, IDLE AIR CONTROL VALVE
$12.26¢6 129
1
#15
16435-MFJ-D01
O-RING (17.8X1.9)
$3.60¢1 800
1
#16
16450-MFJ-D01
INJECTOR ASSY., FUEL
$200.04¢100 021
1
#17
16451-MGZ-D01
BODY, IDLE AIR CONTROL VALVE
$206.11¢103 057
1
#18
16472-MCW-000
SEAL RING, INJECTOR
$2.83¢1 414
1
#20
16610-MGZ-D01
PIPE, FUEL (A)
$101.88¢50 939
1
#21
16620-MGZ-D01
PIPE, FUEL (B)
$101.88¢50 939
1
#22
16630-MFJ-D00
T-JOINT, FUEL
$23.63¢11 816
1
#24
17215-MGZ-D00
SEAL, THROTTLE BODY
$2.12¢1 058
1
#26
90021-MGZ-D02
BOLT, SHOULDER
$3.36¢1 679
1
#27
91301-P7A-004
O-RING (7.8X1.9)
$3.75¢1 874
1
#28
91301-PLC-000
O-RING (7.47X3.6)
$3.46¢1 731
1
#29
91508-MM5-000
SCREW, PAN (5MM)
$4.55¢2 277
1
#30
93500-04008-0H
SCREW, PAN (4X8)
$1.07¢535
1
#30
93500-04008-1H
SCREW, PAN (4X8)
$1.07¢535
1
#31
93892-05012-08
SCREW-WASHER (5X12)
$1.36¢678
1
#31
93892-05012-18
SCREW-WASHER (5X12)
$1.36¢678
1
#32
93892-05014-08
SCREW-WASHER (5X14)
$1.30¢650
1
#32
93892-05014-18
SCREW-WASHER (5X14)
$1.30¢650
1
