AIR CLEANER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

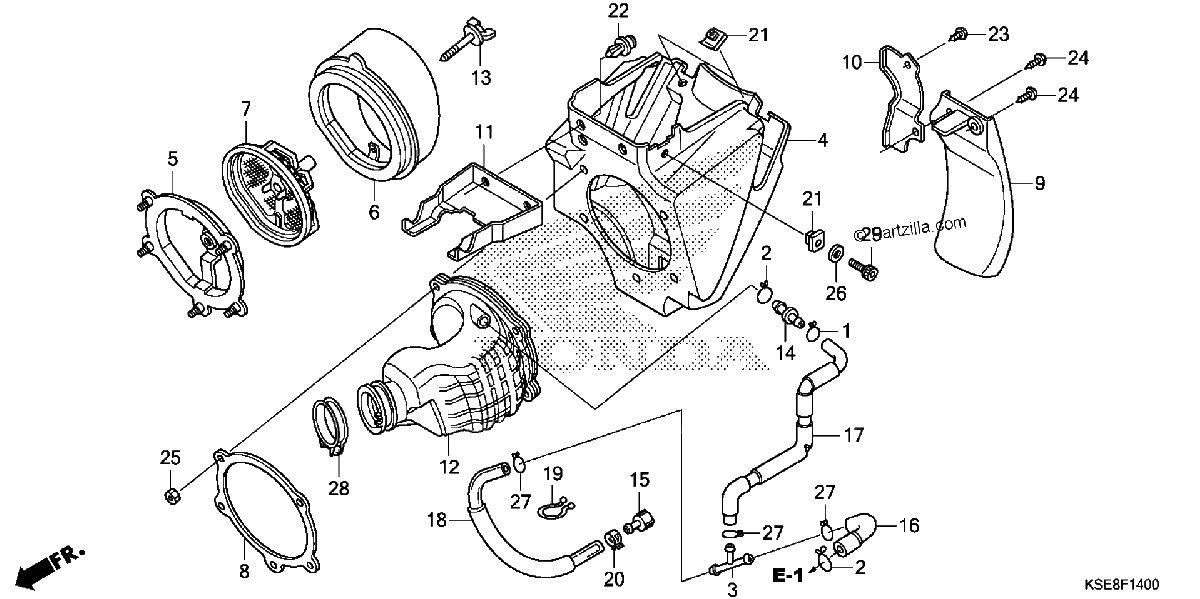

Diagrama de AIR CLEANER

Repuestos

#1
15707-634-000
CLIP, OIL DRAIN TUBE
$6.23¢3 113
1
#2
15771-551-000
CLIP, OIL DRAIN TUBE
$11.05¢5 525
1
#3
16959-MY1-000
JOINT, FUEL TUBE
$20.64¢10 319
1
#4
17210-KSE-000
HOUSING, AIR CLEANER
$242.50¢121 250
1
#5
17212-KSE-000
STAY, AIR CLEANER ELEMENT
$80.90¢40 450
1
#6
17213-KSE-000
ELEMENT, AIR CLEANER
$47.50¢23 750
1
#7
17214-KSE-000
BASE ASSY., ELEMENT
$49.69¢24 844
1
#8
17217-KSE-000
PLATE, FR. CASE
$19.04¢9 519
1
#9
17220-KSE-000
SPLASH GUARD, AIR CLEANER
$41.13¢20 563
1
#10
17221-KSE-000
GUARD, AIR CLEANER
$6.34¢3 169
1
#11
17223-KSE-000
VISOR, AIR CLEANER HOUSING
$8.79¢4 394
1
#12
17253-KSE-000
TUBE, AIR CLEANER CONNECTING
$66.11¢33 056
1
#13
17291-GBF-830
BOLT, ELEMENT SETTING
$16.27¢8 137
1
#14
17359-MAG-L00
JOINT, BREATHER TUBE
$6.39¢3 194
1
#15
17370-419-700
PLUG, BREATHER TUBE
$4.54¢2 269
1
#16
17372-KSE-000
TUBE A, BREATHER
$9.78¢4 888
1
#17
17373-KSE-000
TUBE B, BREATHER
$33.08¢16 538
1
#18
17375-KSE-000
TUBE C, BREATHER
$12.24¢6 119
1
#19
32171-GF9-621
LOCK, PURSE
$2.75¢1 375
1
#20
43514-KS6-701
CLAMP, MASTER CYLINDER OIL HOSE
$15.24¢7 619
1
#21
84601-HA7-670
NUT, FENDER SETTING
$6.71¢3 356
1
#22
90653-HC4-900
CLIP, SPLASH GUARD
$0.76¢381
1
#23
93913-15280
SCREW, TAPPING (5X12) (PO)
$1.11¢556
1
#24
93913-15410
SCREW, TAPPING (5X16) (PO)
$1.45¢725
1
#25
94002-05000-0S
NUT, HEX. (5MM)
$1.34¢669
1
#26
94101-06000
WASHER, PLAIN (6MM)
$0.84¢419
1
#26
94101-06080
WASHER, PLAIN (6MM)
$0.84¢419
1
#26
94101-06800
WASHER, PLAIN (6MM)
$0.84¢419
1
#27
95002-02120
CLIP, TUBE (B12)
$2.39¢1 194
1
#28
95018-52201
BAND, AIR CLEANER CONNECTING TUBE (52)
$9.06¢4 531
1
#29
96600-06014-00
BOLT, SOCKET (6X14)
$5.09¢2 544
1
