RADIATOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

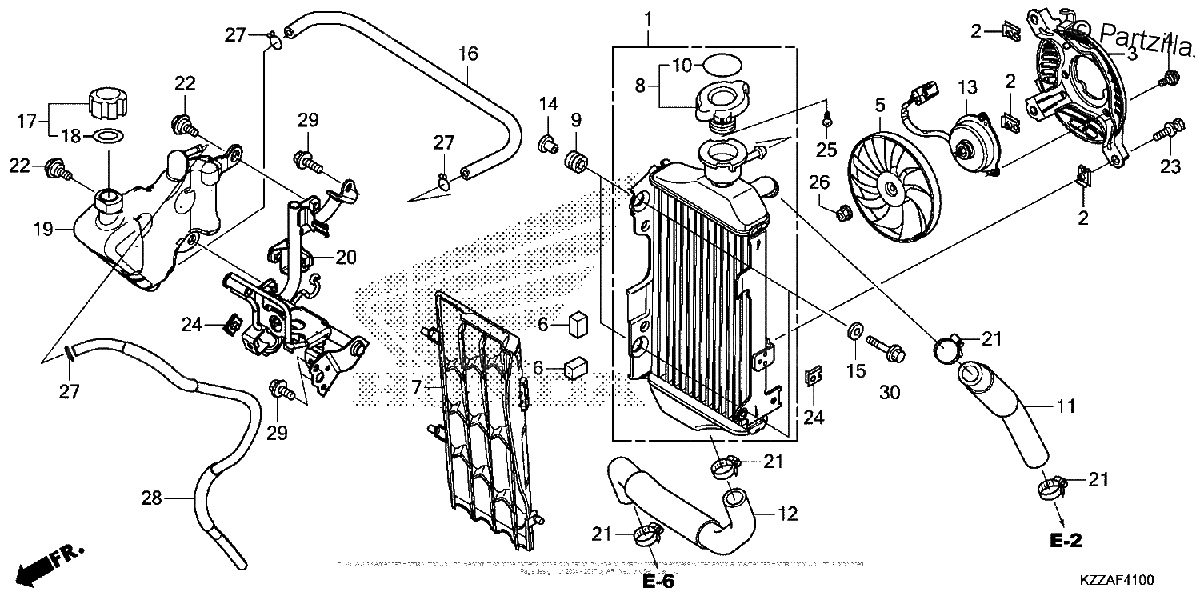

Diagrama de RADIATOR

Repuestos

#1
19010-KZZ-D11
RADIATOR
$145.90¢72 950
1
#2
19014-KEA-003
NUT, SETTING (6MM)
$3.75¢1 875
1
#3
19015-KZZ-902
SHROUD
$8.71¢4 356
1
#4
19016-KEA-003
SCREW, PAN (4X8.5)
$2.09¢1 044
1
#5
19020-KVZ-631
FAN, COOLING
$34.04¢17 019
1
#6
19022-KZZ-900
RUBBER, RADIATOR
$2.69¢1 344
1
#7
19034-KZZ-900
GRILLE, RADIATOR
$16.16¢8 081
1
#8
19037-KZZ-D11
CAP, RADIATOR (TOYO)
$33.94¢16 969
1
#9
19051-KRN-000
RUBBER, RADIATOR MOUNTING
$3.44¢1 719
1
#10
19046-PAA-A00
LABEL, RADIATOR CAP
$3.65¢1 825
1
#11
19062-KZZ-900
HOSE, RADIATOR (UPPER)
$23.11¢11 556
1
#12
19067-KZZ-900
HOSE, RADIATOR (LOWER)
$33.40¢16 700
1
#13
19080-KZZ-J01
MOTOR ASSY., FAN (TOYO)
$108.28¢54 138
1
#14
19091-KZZ-900
COLLAR, RADIATOR MOUNTING
$1.68¢838
1
#15
19092-KZZ-900
WASHER, RADIATOR MOUNTING
$1.16¢581
1
#16
19101-KZZ-J00
TUBE, RESERVE TANK
$15.16¢7 581
1
#17
19105-KZZ-900
CAP ASSY., RESERVE TANK
$6.05¢3 025
1
#18
19107-MG8-000
GASKET, RESERVE TANK
$5.94¢2 969
1
#19
19110-KZZ-J00
TANK, RADIATOR RESERVE
$17.30¢8 650
1
#20
19150-KZZ-J00
STAY, RESERVE TANK
$65.84¢32 919
1
#21
19517-ML7-691
CLAMP, HOSE (22-29MM)
$13.49¢6 744
1
#22
90110-KZZ-900
BOLT, FLANGE (6MM)
$0.96¢481
1
#23
90120-KCR-003
BOLT-WASHER (6X16)
$5.32¢2 662
1
#24
90303-KZZ-J00
NUT, CLIP (6MM)
$1.64¢819
1
#25
93901-22020
SCREW, TAPPING (3X6)
$1.16¢581
1
#26
90315-MFL-003
NUT, FLANGE (3MM)
$2.99¢1 494
1
#27
95002-02100
CLIP, TUBE (B10)
$2.44¢1 219
1
#28
19102-KZZ-J00
TUBE, RESERVE TANK (DRAIN)
$15.55¢7 775
1
#29
95701-06010-00
BOLT, FLANGE (6X10)
$1.63¢813
1
#30
96001-06028-00
BOLT, FLANGE (6X28)
$2.79¢1 394
1
