FRONT BRAKE MASTER CYLINDER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

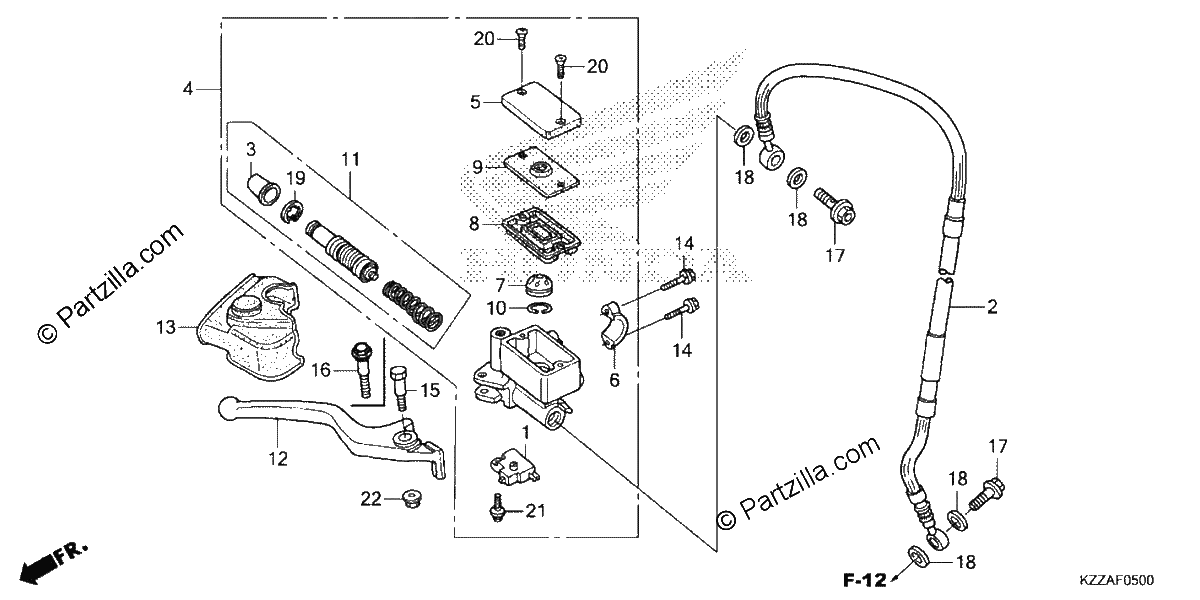

Diagrama de FRONT BRAKE MASTER CYLINDER 1

Repuestos

#1
35340-MGS-D31
SWITCH Assembly., Front STOP (ALPS)
$21.49¢10 744
1
#2
45125-KZZ-901
HOSE, FR. BRAKE
$57.47¢28 737
1
#3
45504-410-003
BOOT
$14.24¢7 119
1
#4
45510-KZZ-305
MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN)
$87.07¢43 537
1
#4
45510-KZZ-901
MASTER CYLINDER SUB-ASSY., FR.BRAKE (NISSIN)
$87.07¢43 537
1
#5
45513-HA2-006
CAP, MASTER CYLINDER
$31.97¢15 987
1
#6
45517-166-006
HOLDER, MASTER CYLINDER
$15.74¢7 869
1
#7
45518-MEN-J01
SEPARATOR
$9.24¢4 619
1
#8
45520-MG7-006
DIAPHRAGM
$12.31¢6 156
1
#9
45521-HA2-006
PLATE, DIAPHRAGM
$12.60¢6 300
1
#10
45523-KA3-731
RING
$3.65¢1 825
1
#11
45530-471-831
MASTER CYLINDER SET
$46.40¢23 200
1
#12
53175-KZZ-305
LEVER, R. HANDLEBAR (COO)
$12.59¢6 294
1
#12
53175-KZZ-900
LEVER, R. HANDLEBAR
$12.59¢6 294
1
#13
53176-KZZ-901
COVER, R. HANDLE LEVER
$6.85¢3 425
1
#14
90013-GHB-660
BOLT, FLANGE (6X22)
$2.99¢1 494
1
#15
90114-166-006
BOLT, HANDLE LEVER PIVOT
$7.88¢3 938
1
#17
90145-MS9-612
BOLT, OIL (10X22)
$8.89¢4 444
1
#18
90545-300-000
WASHER, OIL BOLT
$4.85¢2 425
1
#19
90651-MA5-671
CIRCLIP
$3.10¢1 550
1
#20
93600-04012-0G
SCREW, FLAT (4X12)
$1.16¢581
1
#20
93600-04012-1G
SCREW, FLAT (4X12)
$1.16¢581
1
#21
93893-04012-07
SCREW-WASHER (4X12)
$1.72¢862
1
#21
93893-04012-17
SCREW-WASHER (4X12)
$1.72¢862
1
#22
94050-06000
NUT, FLANGE (6MM)
$0.80¢400
1
