FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

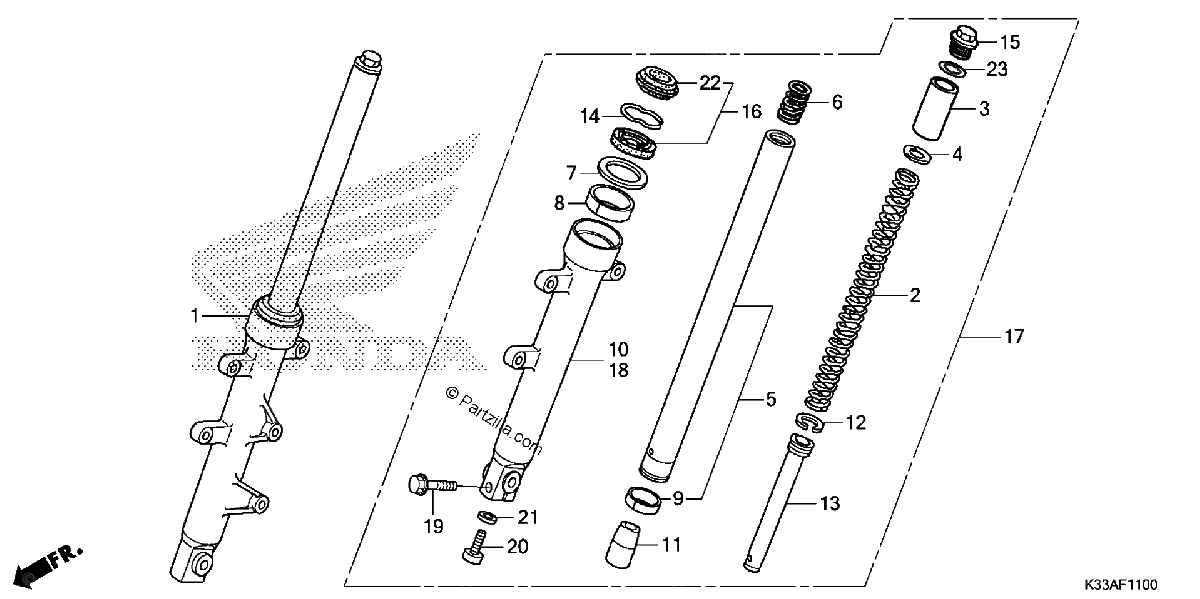

Diagrama de FRONT FORK

Repuestos

#1
51400-K33-305
FORK ASSY., R. FR. (COO) (SHOWA)
$327.76¢163 881
1
#2
51401-K33-701
SPRING, FR. FORK
$39.01¢19 506
1
#3
51402-K33-701
COLLAR, SPRING
$1.35¢675
1
#4
51403-ME4-003
SEAT, SPRING
$9.20¢4 600
1
#5
51410-K33-701
PIPE, FR. FORK
$122.60¢61 300
1
#6
51411-MG1-003
SPRING, Front FORK REBOUND
$8.03¢4 013
1
#7
51412-461-003
RING, BACK-UP
$8.54¢4 269
1
#8
51414-KFB-901
BUSH, GUIDE
$8.44¢4 219
1
#9
51415-KFB-901
BUSH, SLIDER
$10.41¢5 206
1
#10
51420-KYJ-921
CASE, R. (LOWER)
$132.44¢66 219
1
#11
51432-KAZ-003
PIECE, OIL LOCK
$12.01¢6 006
1
#12
51437-ML7-691
RING, PISTON
$10.19¢5 094
1
#13
51440-KYJ-901
PIPE, SEAT
$17.01¢8 506
1
#14
51447-KR6-003
RING, OIL SEAL STOPPER
$4.58¢2 288
1
#15
51450-KAS-901
BOLT, Front FORK
$29.35¢14 675
1
#16
51490-KWL-003
SEAL SET, FR. FORK
$25.11¢12 556
1
#17
51500-K33-305
FORK ASSY., L. FR. (COO) (SHOWA)
$313.94¢156 969
1
#18
51520-KYJ-921
CASE, Left (LOWER)
$118.18¢59 088
1
#19
90109-MR7-000
BOLT, FLANGE (8X45)
$5.99¢2 994
1
#20
90116-KV3-701
BOLT, SOCKET (8MM) (SHOWA)
$4.71¢2 356
1
#21
90544-283-000
WASHER, SPECIAL (8MM) (SHOWA)
$3.65¢1 825
1
#22
91254-KAZ-003
DUST SEAL
$19.74¢9 869
1
#23
91357-ME4-003
O-RING (27.7X3.5)
$4.06¢2 031
1
