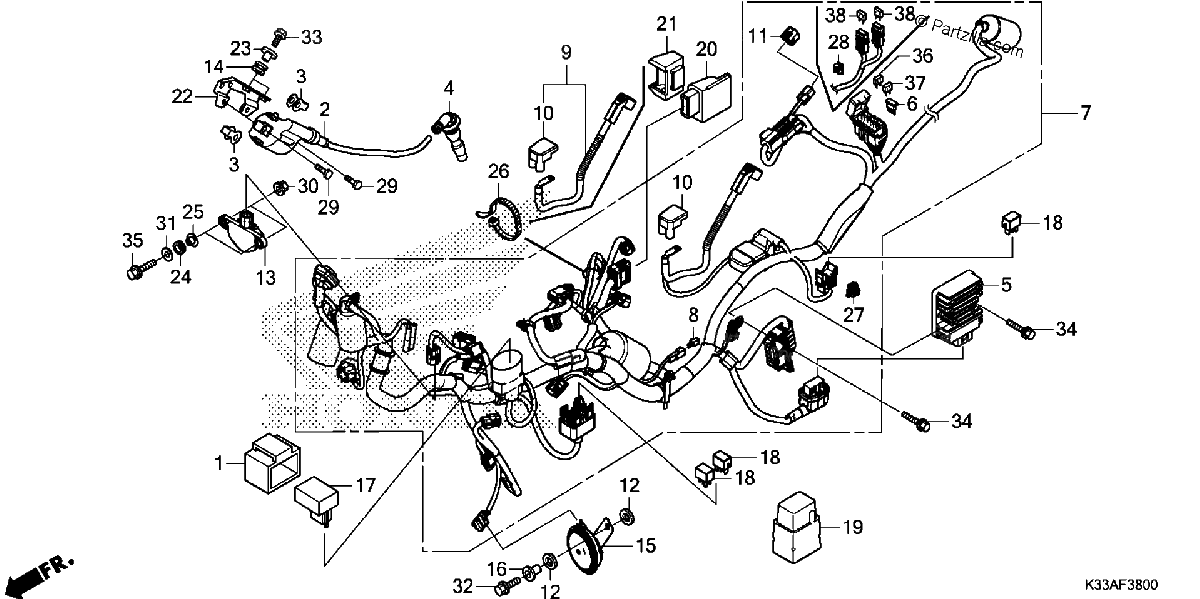

WIRE HARNESS
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
CUSHION, IGNITION CONTROL MODULE (CDI)
$7.49¢3 743
#2
COIL, IGNITION
$43.11¢21 557
#3
SPACER, IGNITION COIL
$3.09¢1 547
#4
CAP ASSY., NOISE SUPPRESSOR
$97.24¢48 622
#5
RECTIFIER Assembly., REGULATOR
$268.66¢134 332
#6
DIODE ASSY., THREE WAY (SUMITOMO)
$11.63¢5 813
#7
WIRE HARNESS
$775.90¢387 953
#8
CONNECTOR, DIODE (2P) (3A)
$16.01¢8 004
#9
CABLE, STARTER MAGNETIC BATTERY
$80.12¢40 060
#10
COVER, STARTER MAGNETIC TERMINAL
$7.76¢3 881
#11
CAP, DUMMY (4P) (RED)
$5.36¢2 680
#12
RUBBER, TAILLIGHT BRACKET
$2.98¢1 489
#13
SENSOR ASSY., BANK ANGLE
$177.72¢88 860
#14
GROMMET A, TUBE
$6.87¢3 433
#14
GROMMET, WIRE HARNESS
$6.87¢3 433
#15
HORN (HIGH)
$32.84¢16 422
#16
COLLAR, HORN SETTING
$0.91¢454
#17
RELAY, TURN SIGNAL POSITION
$166.42¢83 208
#18
RELAY, POWER (MICRO ISO 4P) (OMRON)
$6.83¢3 415
#19
COVER, RELAY (2P)
$4.28¢2 139
#20
PGM-FI UNIT
$190.55¢95 277
#21
SUSPENSION, ENGINE CONTROL UNIT
$2.98¢1 489
#22
STAY, IGNITION COIL
$5.84¢2 921
#23
COLLAR, IGNITION COIL MOUNTING
$0.98¢489
#24
RUBBER, SIDE COVER
$2.30¢1 150
#25
COLLAR, BANK ANGLE SENSOR
$2.71¢1 357
#26
BAND, WIRE (165MM) (BLACK)
$3.36¢1 679
#27
CLIP, RELAY HOLDER (NATURAL)
$1.66¢828
#29
BOLT, HEX. (6X20)
$1.64¢822
#30
NUT, FLANGE (6MM)
$0.74¢368
#31
WASHER, PLAIN (6MM)
$0.92¢460
#32
BOLT, FLANGE (6X16)
$1.92¢960
#33
BOLT, FLANGE (6X16)
$1.63¢816
#34
BOLT, FLANGE (6X22)
$2.13¢1 064
#35
BOLT, FLANGE (6X22)
$2.04¢1 018
#36
FUSE, MINI (10A)
$1.56¢782
#37
FUSE, MINI (15A)
$1.37¢684
