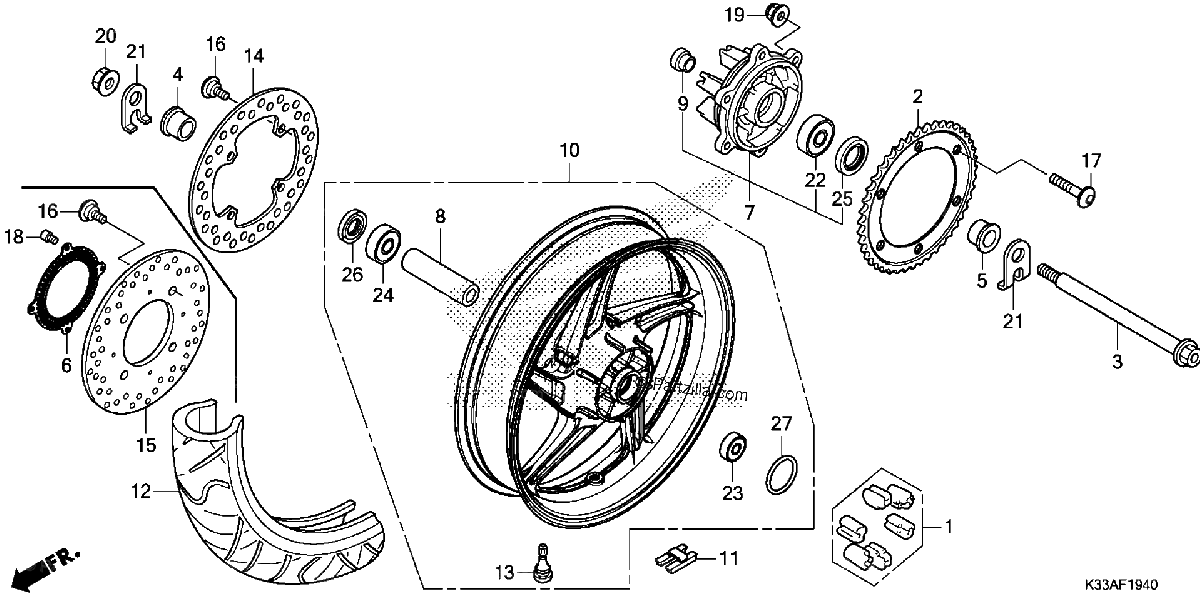

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
DAMPER SET, WHEEL
$52.09¢26 044
#2
SPROCKET, FINAL DRIVEN (36T)
$52.76¢26 381
#3
AXLE, Rear WHEEL
$24.01¢12 006
#4
COLLAR, Right Rear WHEEL SIDE
$19.94¢9 969
#5
COLLAR, L. RR. WHEEL SIDE
$15.82¢7 913
#7
FLANGE SUB-ASSY., RR. DRIVEN *NH303M* (MAT AXIS GRAY METALLIC)
$140.23¢70 113
#8
COLLAR, RR. WHEEL DISTANCE
$9.14¢4 569
#9
COLLAR B, RR. AXLE DISTANCE
$25.29¢12 644
#9
COLLAR B, Rear AXLE DISTANCE
$21.50¢10 750
#10
WHEEL SUB-ASSY., RR. *NH303M* (MAT AXIS GRAY METALLIC)
$521.76¢260 881
#11
WEIGHT, BALANCE (10G)
$10.91¢5 456
#11
WEIGHT, BALANCE (20G)
$22.41¢11 206
#11
WEIGHT, BALANCE (30G)
$22.09¢11 044
#12
TIRE, Rear. (140/70-17M/C 66S) (IRC)
$133.13¢66 563
#13
VALVE, RIM (TRITON)
$0.71¢356
#14
DISK, RR. BRAKE
$76.85¢38 425
#16
BOLT, BRAKE DISK (8X24)
$2.46¢1 231
#17
BOLT, SPROCKET FIXING
$1.74¢869
#19
NUT, U (10MM) (FUJI SEIMITSU)
$3.83¢1 913
#20
NUT, U FLANGE (16MM)
$8.36¢4 181
#21
WASHER, RR. SWINGARM
$9.01¢4 506
#22
BEARING, RADIAL BALL (6204) (UU) (FUJIKOSHI)
$17.13¢8 563
#23
BEARING, RADIAL BALL (6203UU) (FUJIKOSHI)
$10.90¢5 450
#24
BEARING, RADIAL BALL (6303UU) (FUJIKOSHI)
$25.54¢12 769
#25
DUST SEAL (30X47X8) (ARAI)
$14.09¢7 044
#25
DUST SEAL (30X47X8) (NOK)
$14.09¢7 044
#26
DUST SEAL (30X47X8) (ARAI)
$14.09¢7 044
#26
DUST SEAL (30X47X8) (NOK)
$14.09¢7 044
#27
O-RING (54X2)
$3.91¢1 956
#27
O-RING (54X2)
$3.91¢1 956
#27
O-RING (54X2) (ARAI)
$3.91¢1 956
