CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

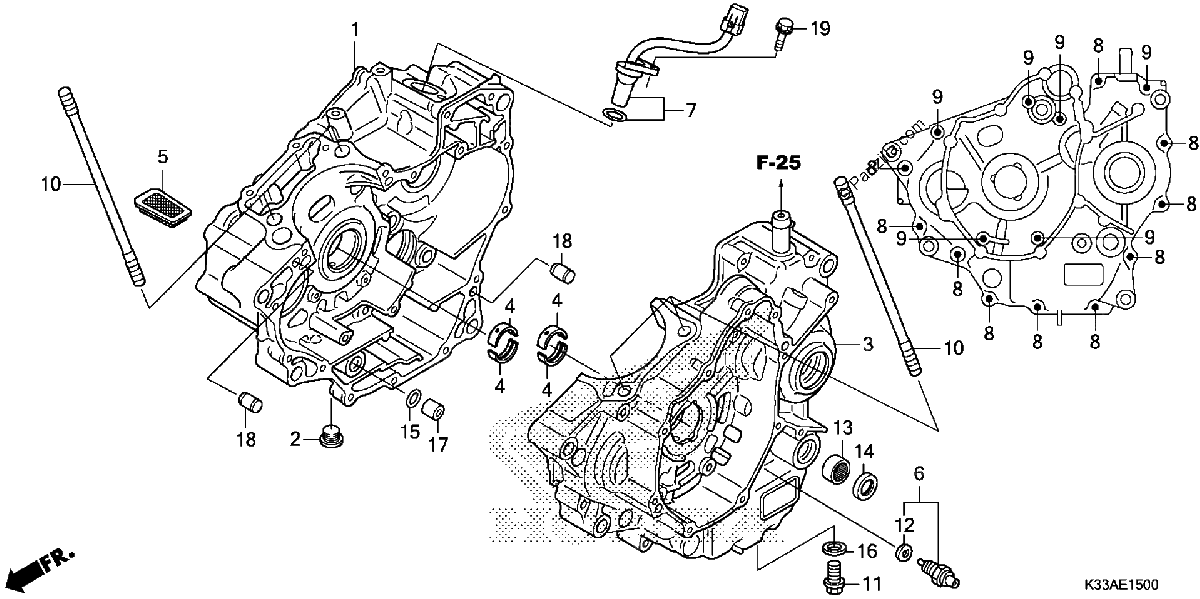

Diagrama de CRANKCASE

Repuestos

#1
11100-K33-D00
CRANKCASE, R.
$190.69¢95 346
1
#2
11107-KYJ-900
BOLT, SEALING (16MM)
$3.74¢1 869
1
#3
11200-K33-D00
CRANKCASE, L.
$212.77¢106 387
1
#4
13312-K33-D01
BEARING A, CRANKSHAFT (BLUE)
$12.58¢6 290
1
#4
13313-K33-D01
BEARING B, CRANKSHAFT (BLACK)
$12.58¢6 290
1
#4
13314-K33-D01
BEARING C, CRANKSHAFT (BROWN)
$12.58¢6 290
1
#4
13315-K33-305
BEARING D, CRANKSHAFT (OVER SIZE) (RED)
$14.80¢7 400
1
#4
13316-K33-305
BEARING E, CRANKSHAFT (OVER SIZE) (GREEN)
$14.80¢7 400
1
#4
13317-K33-305
BEARING F, CRANKSHAFT (OVER SIZE) (YELLOW)
$14.80¢7 400
1
#4
13318-K33-305
BEARING G, CRANKSHAFT (OVER SIZE) (PINK)
$14.95¢7 475
1
#5
15421-KYJ-900
SCREEN, OIL FILTER
$3.36¢1 679
1
#6
35600-425-023
SWITCH Assembly., NEUTRAL
$23.22¢11 609
1
#7
37700-KYJ-901
SENSOR Assembly., SPEED
$72.44¢36 219
1
#8
90014-KYJ-900
BOLT, FLANGE (6X40)
$0.74¢368
1
#9
90016-KYJ-900
BOLT, FLANGE (6X70) (NSHF)
$1.02¢512
1
#10
90032-K33-D00
BOLT, STUD (10X178)
$4.15¢2 076
1
#11
90061-KYJ-900
BOLT, DRAIN PLUG (12MM)
$1.13¢564
1
#12
90443-KR0-000
WASHER, NEUTRAL SWITCH
$1.59¢793
1
#13
91028-MGS-D21
BEARING, NEEDLE (14X20X12)
$6.39¢3 197
1
#14
91203-KSP-911
OIL SEAL (14X22X5) (ARAI)
$2.28¢1 138
1
#15
91301-KYJ-901
O-RING (11.8X1.9)
$0.53¢265
1
#16
94109-12000
WASHER, DRAIN PLUG (12MM)
$1.45¢724
1
#17
94301-12160
PIN A, DOWEL (12X16)
$2.69¢1 346
1
#18
94302-08140
PIN B, DOWEL (8X14)
$2.53¢1 265
1
#19
95701-06018-00
BOLT, FLANGE (6X18)
$1.92¢960
1
