HANDLE LEVER SWITCH CABLE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

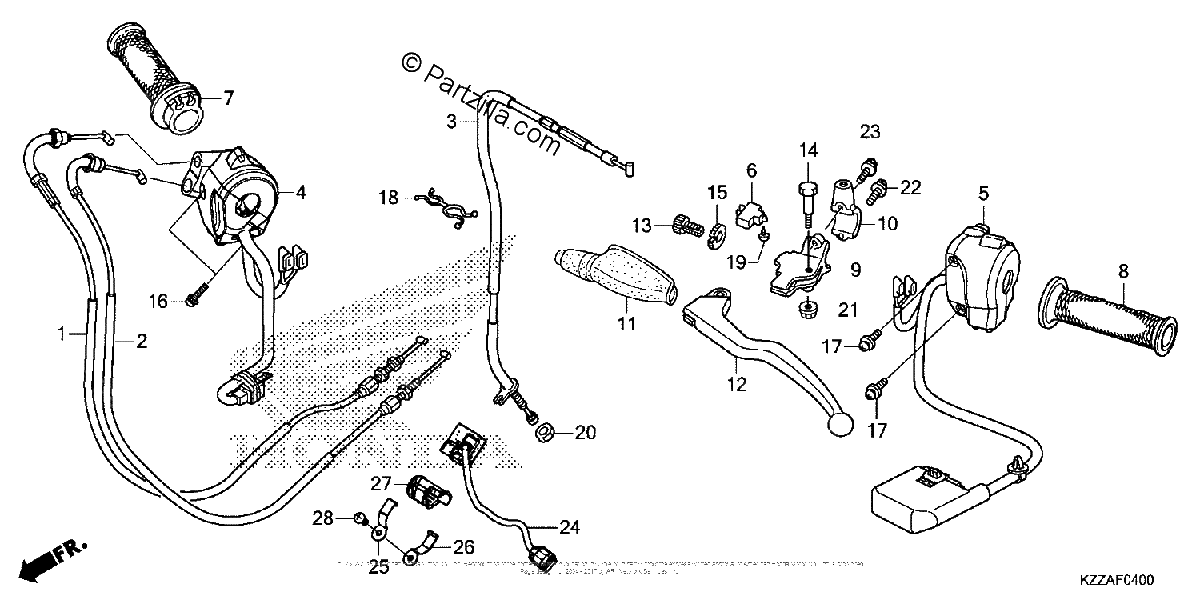

Diagrama de HANDLE LEVER SWITCH CABLE

Repuestos

#1
17910-KZZ-900
CABLE A, THROTTLE
$15.32¢7 663
1
#2
17920-KZZ-900
CABLE B, THROTTLE
$14.51¢7 256
1
#3
22870-KZZ-D20
CABLE, CLUTCH
$16.15¢8 075
1
#4
35130-KZZ-D21
SWITCH ASSY., ENGINE STOP
$47.45¢23 725
1
#5
35200-KZZ-921
SWITCH ASSY., TURN SIGNAL
$234.84¢117 419
1
#6
35330-MK5-003
SWITCH ASSY., CLUTCH
$20.78¢10 388
1
#7
53140-KZZ-900
GRIP, THROTTLE
$9.61¢4 806
1
#7
53140-KZZ-305
GRIP, THROTTLE (COO)
$9.61¢4 806
1
#8
53150-KZZ-900
GRIP, L. HANDLE
$9.90¢4 950
1
#8
53150-KZZ-305
GRIP, L. HANDLE (COO)
$9.90¢4 950
1
#9
53172-KZZ-900
BRACKET, L. HANDLE LEVER
$16.79¢8 394
1
#10
53174-KZZ-900
HOLDER, L. LEVER BRACKET
$18.25¢9 125
1
#11
53177-KZZ-900
COVER, L. HANDLE LEVER
$3.65¢1 825
1
#12
53178-KZZ-305
LEVER, L. HANDLE (COO)
$13.86¢6 931
1
#12
53178-KZZ-900
LEVER, L. HANDLE
$13.86¢6 931
1
#13
53192-268-000
BOLT, WIRE ADJUSTING
$7.92¢3 963
1
#14
90113-HA0-770
BOLT, HANDLE LEVER PIVOT
$4.44¢2 219
1
#15
90321-315-670
NUT, FIXING
$8.86¢4 431
1
#16
90507-MGZ-J00
SCREW-WASHER (5X20)
$0.64¢319
1
#17
90508-KZZ-900
SCREW-WASHER (5X16)
$1.82¢913
1
#19
93901-32320
SCREW, TAPPING (3X12)
$1.11¢556
1
#20
94002-08000-0S
NUT, HEX. (8MM)
$1.60¢800
1
#21
94050-06070
NUT, FLANGE (6MM)
$1.86¢931
1
#22
96001-06020-07
BOLT, FLANGE (6X20)
$1.74¢869
1
#23
96001-06020-07
BOLT, FLANGE (6X20)
$1.74¢869
1
#24
35240-KZZ-G41
SWITCH ASSY., RR. ABS CANCEL
$75.51¢37 756
1
#25
35241-KZZ-J80
CLAMP A, ABS CANCEL SWITCH
$7.19¢3 594
1
#26
35242-KZZ-J80
CLAMP B, ABS CANCEL SWITCH
$7.41¢3 706
1
#27
35243-KZZ-J80
RUBBER, ABS CANCEL SWITCH
$19.91¢9 956
1
#28
90112-MJK-N20
SCREW (5X12)
$2.89¢1 444
1
