REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

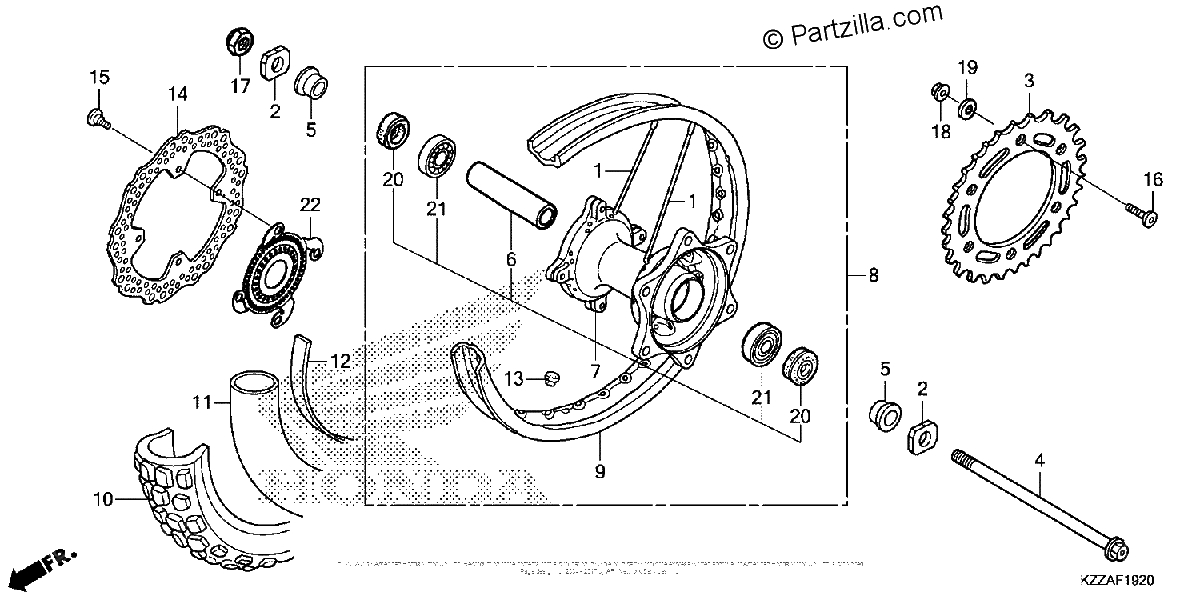

Diagrama de REAR WHEEL

Repuestos

#1
06420-KZZ-900
SPOKE SET, RR.
$2.91¢1 456
1
#2
40544-KZZ-900
ADJUSTER, CHAIN
$10.91¢5 456
1
#3
41201-KZZ-J00
SPROCKET, FINAL DRIVEN (40T)
$50.13¢25 063
1
#4
42301-KZZ-900
AXLE, RR. WHEEL
$21.44¢10 719
1
#5
42312-KZZ-900
COLLAR, RR. WHEEL
$19.94¢9 969
1
#6
42620-KZZ-900
COLLAR, RR. AXLE DISTANCE
$20.74¢10 369
1
#7
42635-KZZ-J80
HUB SUB-ASSY., RR.
$236.41¢118 206
1
#8
42650-KZZ-G40
WHEEL SUB-ASSY., RR.
$698.89¢349 444
1
#9
42701-KZZ-901
RIM, RR. WHEEL (18X2.15)
$313.10¢156 550
1
#10
42711-KZZ-902
TIRE, RR. (120/80-18 M/C 62P) (IRC)
$117.07¢58 537
1
#11
42712-KT1-671
TUBE, TIRE (120/80-18) (IRC)
No Disponible
1
#12
42713-KZZ-901
FLAP, TIRE (IRC)
$5.47¢2 738
1
#13
42717-329-000
CAP, RIM HOLE
$5.09¢2 544
1
#14
43351-KZZ-901
DISK, RR. BRAKE
$60.84¢30 419
1
#15
90105-KSP-930
BOLT, DISK (8X22)
$1.11¢556
1
#16
90125-KZZ-900
BOLT, SPROCKET FIXING (10X31)
$3.40¢1 700
1
#17
90306-KCJ-951
NUT, U (16MM)
$5.67¢2 838
1
#18
90306-KZZ-901
NUT, U (10MM)
$3.36¢1 681
1
#19
90438-463-000
WASHER, SPECIAL (11X21X2.3)
$3.43¢1 713
1
#20
91253-033-003
OIL SEAL (25X47X6.5)
$7.21¢3 606
1
#21
96140-63030-10
BEARING, RADIAL BALL (6303U)
$16.94¢8 469
1
#22
42515-KZZ-J80
RING, RR. PULSER
$42.30¢21 150
1
