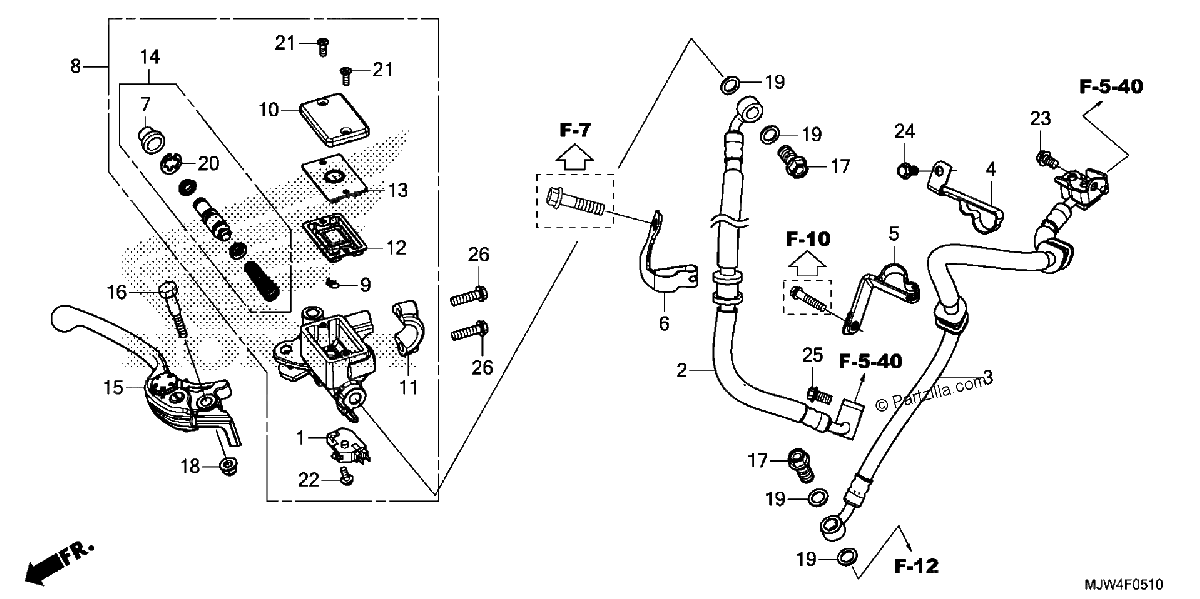

FRONT BRAKE MASTER CYLINDER 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
SWITCH Assembly., Front STOP (ALPS)
$19.77¢9 884
#2
HOSE A, FR. BRAKE
$31.20¢15 600
#3
HOSE B, FR. BRAKE
$68.45¢34 224
#4
CLAMP A, FR. BRAKE HOSE
$4.73¢2 363
#5
CLAMP B, FR. BRAKE HOSE
$2.35¢1 173
#6
CLAMP C, Front BRAKE HOSE
$4.24¢2 122
#7
BOOT
$13.10¢6 549
#8
MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN)
$144.55¢72 277
#9
PROTECTOR
$4.78¢2 392
#10
CAP, MASTER CYLINDER (COO)
$4.63¢2 317
#10
CAP, MASTER CYLINDER
$4.63¢2 317
#11
HOLDER, MASTER CYLINDER
$14.48¢7 239
#12
DIAPHRAGM
$10.00¢5 002
#12
DIAPHRAGM
$11.33¢5 664
#13
PLATE, DIAPHRAGM
$2.69¢1 346
#14
MASTER CYLINDER SET
$42.69¢21 344
#15
LEVER ASSY., R. HANDLE (COO)
$98.61¢49 306
#16
BOLT, HANDLE LEVER PIVOT
$7.24¢3 622
#17
BOLT, OIL (10X22)
$8.18¢4 088
#18
NUT, CAP (6MM)
$3.36¢1 679
#19
WASHER, OIL BOLT
$4.46¢2 231
#20
CIRCLIP
$2.85¢1 426
#21
SCREW, FLAT (4X12)
$1.07¢535
#21
SCREW, FLAT (4X12)
$1.07¢535
#22
SCREW-WASHER (4X12)
$1.59¢793
#22
SCREW-WASHER (4X12)
$1.59¢793
#23
BOLT, FLANGE (6X10)
$1.92¢960
#24
BOLT, FLANGE (6X10)
$1.92¢960
#25
BOLT, FLANGE (6X12)
$2.13¢1 064
#26
BOLT, FLANGE (6X22)
$2.18¢1 092
