MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

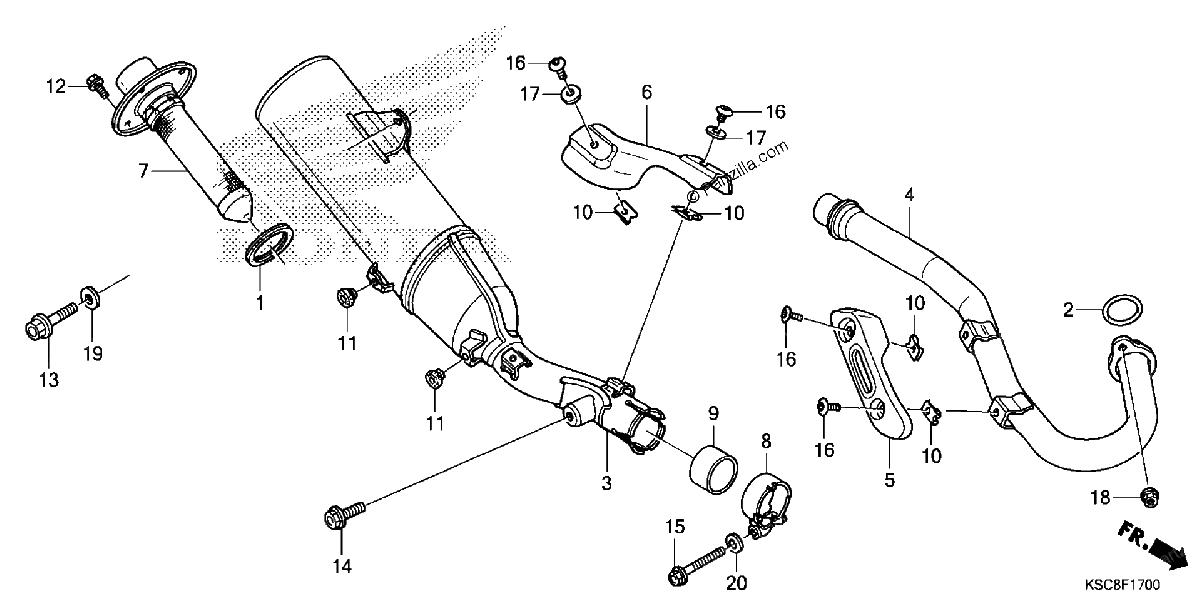

Diagrama de MUFFLER

Repuestos

#001
18291-KPS-900
GASKET, EX. MUFFLER
$8.91¢4 456
1
#1
18291-KPS-900
GASKET, EX. MUFFLER
$8.91¢4 456
1
#002
18291-MM5-860
GASKET, EX. PIPE
$5.76¢2 881
1
#2
18291-MM5-860
GASKET, EX. PIPE
$5.76¢2 881
1
#3
18310-KSC-305
MUFFLER (COO)
$1314.36¢657 179
1
#003
18310-KSC-305
MUFFLER (COO)
$1314.36¢657 179
1
#4
18320-KSC-000
PIPE, EX.
$345.59¢172 793
1
#004
18320-KSC-000
PIPE, EX.
$345.59¢172 793
1
#005
18323-KSC-A30
PROTECTOR, EX. PIPE
$88.76¢44 379
1
#5
18323-KSC-A30
PROTECTOR, EX. PIPE
$88.76¢44 379
1
#006
18324-KRN-000
PROTECTOR, MUFFLER
$99.61¢49 807
1
#6
18324-KRN-000
PROTECTOR, MUFFLER
$99.61¢49 807
1
#007
18340-KSC-305
ARRESTER, MUFFLER (COO)
$339.57¢169 786
1
#7
18340-KSC-305
ARRESTER, MUFFLER (COO)
$339.57¢169 786
1
#8
18373-KE8-000
BAND, Right MUFFLER
$30.59¢15 295
1
#008
18373-KE8-000
BAND, Right MUFFLER
$30.59¢15 295
1
#8
18374-MG7-701
BAND, L MUFFLER
$30.59¢15 295
1
#008
18374-MG7-701
BAND, L MUFFLER
$30.59¢15 295
1
#9
18392-MK4-000
GASKET, MUFFLER
$14.70¢7 348
1
#009
18392-MK4-000
GASKET, MUFFLER
$14.70¢7 348
1
#010
19508-KA3-710
NUT, SPRING (6MM)
$6.39¢3 197
1
#10
19508-KA3-710
NUT, SPRING (6MM)
$6.39¢3 197
1
#11
83512-KA4-700
RUBBER, SIDE COVER
$5.11¢2 553
1
#011
83512-KA4-700
RUBBER, SIDE COVER
$5.11¢2 553
1
#12
90101-KCE-000
BOLT, FLANGE (6X10)
$1.92¢960
1
#012
96001-06010-07
BOLT, FLANGE (6X10)
$1.92¢960
1
#12
96001-06010-07
BOLT, FLANGE (6X10)
$1.92¢960
1
#012
90101-KCE-000
BOLT, FLANGE (6X10)
$1.92¢960
1
#013
90101-KZ3-J50
BOLT, FLANGE (8X24)
$3.15¢1 576
1
#13
90101-KZ3-J50
BOLT, FLANGE (8X24)
$3.15¢1 576
1
#014
90123-KZ4-J40
BOLT, FLANGE (8X18)
$2.33¢1 167
1
#14
90123-KZ4-J40
BOLT, FLANGE (8X18)
$2.33¢1 167
1
#015
90124-KZ4-J40
BOLT, FLANGE (8X35)
$2.68¢1 340
1
#15
90124-KZ4-J40
BOLT, FLANGE (8X35)
$2.68¢1 340
1
#016
90170-MEB-670
BOLT, SPECIAL (6MM)
$2.13¢1 064
1
#16
90170-MEB-670
BOLT, SPECIAL (6MM)
$2.13¢1 064
1
#17
90406-KV3-780
WASHER (6MM)
$2.86¢1 432
1
#017
90406-KV3-780
WASHER (6MM)
$2.86¢1 432
1
#18
94050-08000
NUT, FLANGE (8MM)
$1.06¢529
1
#018
94050-08000
NUT, FLANGE (8MM)
$1.06¢529
1
#019
94101-08000
WASHER, PLAIN (8MM)
$0.98¢489
1
#19
94101-08000
WASHER, PLAIN (8MM)
$0.98¢489
1
#20
94102-08800
WASHER, PLAIN (8MM)
$1.12¢558
1
#020
94102-08800
WASHER, PLAIN (8MM)
$1.12¢558
1
