CYLINDER HEAD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

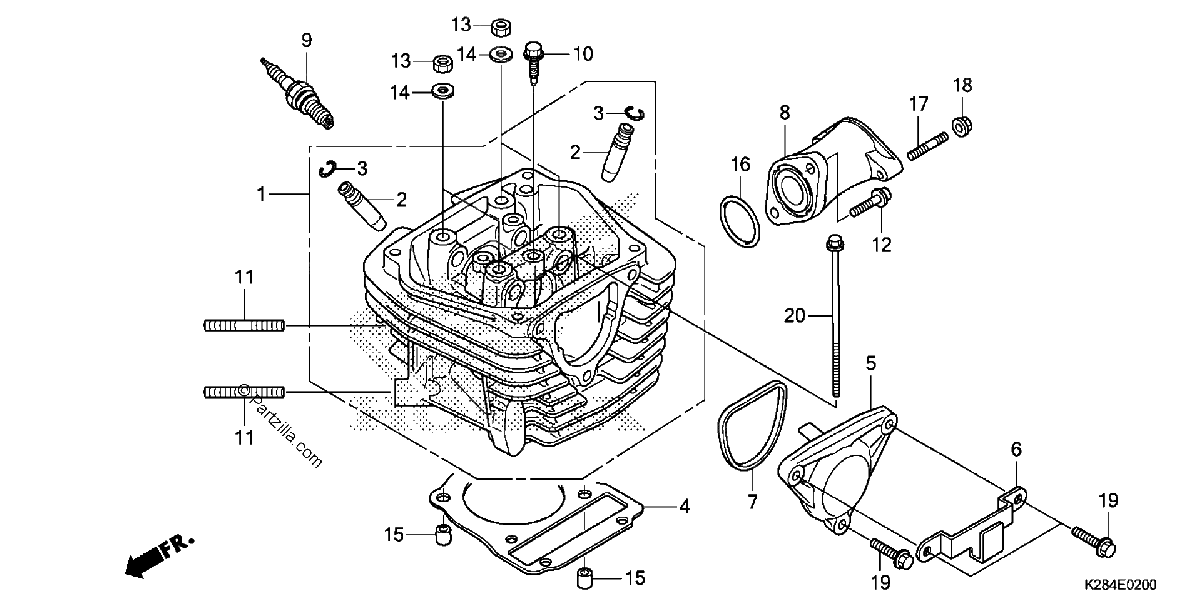

Diagrama de CYLINDER HEAD

Repuestos

#1
12200-KYY-970
CYLINDER HEAD
$398.26¢199 128
1
#2
12204-KVY-305
GUIDE, VALVE (OVER SIZE)
$12.57¢6 285
1
#3
12206-KPL-900
CLIP, VALVE GUIDE
$4.05¢2 024
1
#4
12251-KYY-901
GASKET, CYLINDER HEAD
$17.11¢8 556
1
#5
12341-KYY-900
COVER, L. CYLINDER HEAD SIDE
$26.53¢13 265
1
#6
12345-K28-910
STAY, TANK SHROUD
$8.08¢4 042
1
#7
12395-KYY-900
GASKET, L. CYLINDER HEAD SIDE COVER
$4.62¢2 311
1
#8
16210-K28-910
INSULATOR, CARBURETOR
$88.06¢44 028
1
#9
31916-KPH-901
SPARK PLUG (CPR6EA-9) (NGK)
$10.96¢5 480
1
#9
31917-KPH-901
SPARK PLUG (CPR7EA-9) (NGK)
$4.69¢2 346
1
#10
90014-KYY-900
BOLT, SPECIAL (6X21)
$2.85¢1 426
1
#11
90035-KRM-840
BOLT, STUD (8X22)
$11.09¢5 543
1
#12
90091-KRM-840
BOLT, FLANGE SOCKET (6X22)
$0.86¢431
1
#13
90201-GCC-000
NUT, HEX. (7MM)
$1.12¢558
1
#14
90401-GFM-900
WASHER (7.2X16X2.5)
$2.06¢1 029
1
#15
90701-KVR-C00
PIN, DOWEL SPECIAL (8X14)
$2.17¢1 087
1
#16
91313-KVR-C00
O-RING (27X2.0)
$3.36¢1 679
1
#17
92900-06016-0B
BOLT, STUD (6X16)
$1.75¢874
1
#18
94050-06080
NUT, FLANGE (6MM)
$0.74¢368
1
#19
96001-06025-00
BOLT, FLANGE (6X25)
$2.48¢1 242
1
#20
96001-06110-00
BOLT, FLANGE (6X110)
$4.24¢2 122
1
