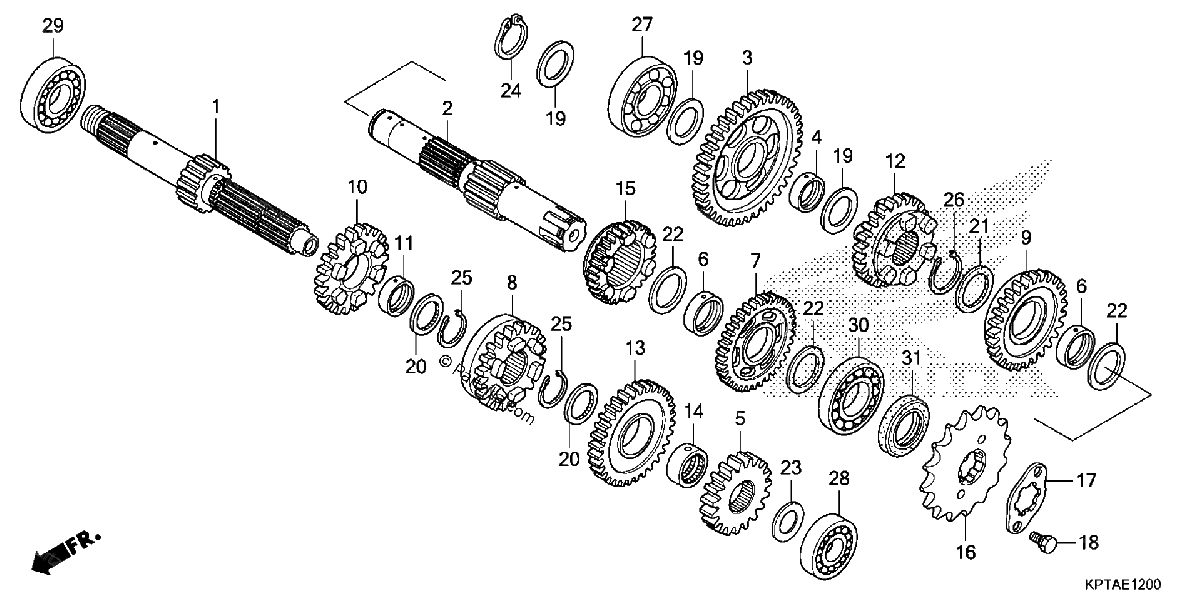

TRANSMISSION
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
MAINSHAFT, TRANSMISSION (14T)
$82.25¢41 125
#2
COUNTERSHAFT
$132.07¢66 038
#3
GEAR, COUNTERSHAFT FIRST (39T)
$39.45¢19 725
#4
BUSH (17X20.5X8.0)
$7.14¢3 569
#5
GEAR, MAINSHAFT SECOND (16T)
$10.35¢5 175
#6
BUSH (20MM)
$35.92¢17 963
#7
GEAR, COUNTERSHAFT SECOND (30T)
$9.29¢4 644
#8
GEAR, MAINSHAFT THIRD (22T)
$47.30¢23 650
#9
GEAR, COUNTERSHAFT THIRD (31T)
$22.70¢11 350
#10
GEAR, MAINSHAFT FOURTH (25T)
$31.54¢15 769
#11
BUSH (17MM)
$5.90¢2 950
#12
GEAR, COUNTERSHAFT FOURTH (28T)
$36.74¢18 369
#13
GEAR, MAINSHAFT FIFTH (32T)
$50.74¢25 369
#14
COLLAR, SPLINE (17X20X11)
$16.16¢8 081
#15
GEAR, COUNTERSHAFT FIFTH (30T)
$27.13¢13 563
#16
SPROCKET, DRIVE (13T)
$28.91¢14 456
#17
PLATE A2, FIXING
$5.55¢2 775
#18
BOLT, HEX. (6X10)
$3.46¢1 731
#19
WASHER, THRUST (17MM)
$2.64¢1 319
#20
WASHER, SPLINE (17X23X1.6)
$5.31¢2 656
#21
WASHER, SPLINE (20MM)
$1.63¢813
#22
WASHER B, THRUST (20MM)
$1.02¢513
#23
WASHER, THRUST (12MM)
$0.33¢163
#24
CIRCLIP (OUTER) (17MM)
$0.88¢438
#25
CIRCLIP (17MM)
$0.95¢475
#26
SET-RING (20MM)
$2.91¢1 456
#27
BEARING, RADIAL BALL (17X42X12) (NSK)
$30.70¢15 350
#28
BEARING, RADIAL BALL (6201U) (FUJIKOSHI)
$15.38¢7 688
#29
BEARING, RADIAL BALL (6203) (C3) (FUJIKOSHI)
$33.75¢16 875
#30
BEARING, RADIAL BALL (6204)
$27.56¢13 781
#30
BEARING, RADIAL BALL (6204) (FUJIKOSHI)
$23.60¢11 800
#31
OIL SEAL (20X34X7)
$2.41¢1 206
