CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

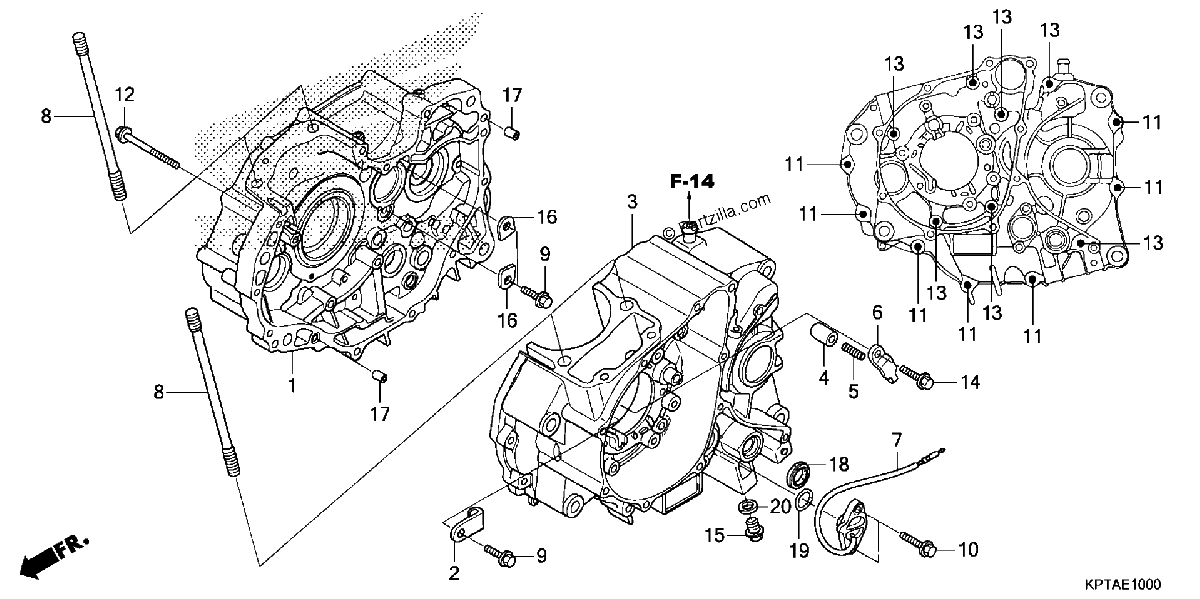

Diagrama de CRANKCASE

Repuestos

#1
11100-KRE-B00
CRANKCASE, R.
$112.49¢56 246
1
#2
11108-KVS-740
PLATE, L. BEARING SETTING
$14.46¢7 228
1
#3
11200-KRE-B00
CRANKCASE, L.
$117.86¢58 932
1
#4
11215-KRM-840
PLUG, BEARING PUSH
$2.74¢1 368
1
#5
11216-KRM-840
SPRING, BEARING PUSH
$0.98¢489
1
#6
11217-KRM-840
PLATE, BEARING PUSH
$13.62¢6 808
1
#7
35759-KPT-A01
CONTACT ASSY., NEUTRAL SWITCH
$21.63¢10 816
1
#8
90031-KRM-840
BOLT, CYLINDER STUD (8X140)
$4.25¢2 128
1
#9
95701-06016-00
BOLT, FLANGE (6X16)
$1.92¢960
1
#10
95701-06020-00
BOLT, FLANGE (6X20)
$2.09¢1 047
1
#11
95701-06040-00
BOLT, FLANGE (6X40)
$2.22¢1 110
1
#12
95701-06045-07
BOLT, FLANGE (6X45)
$2.56¢1 282
1
#12
95701-06045-00
BOLT, FLANGE (6X45)
$2.56¢1 282
1
#13
95701-06070-00
BOLT, FLANGE (6X70)
$2.71¢1 357
1
#14
96001-06018-00
BOLT, FLANGE (6X18)
$2.04¢1 018
1
#15
90131-KRM-840
BOLT, DRAIN PLUG (12MM)
$2.01¢1 006
1
#16
90441-KRM-840
PLATE, BEARING HOLDER
$0.71¢357
1
#17
90702-KRM-840
PIN, DOWEL (8X14)
$0.79¢397
1
#18
91203-KRM-841
OIL SEAL (14X22X5)
$2.28¢1 138
1
#19
91305-KPH-900
O-RING (19.4X2.3)
$1.70¢851
1
#20
90401-KRM-R20
WASHER, DRAIN PLUG (12MM)
$6.89¢3 444
1
